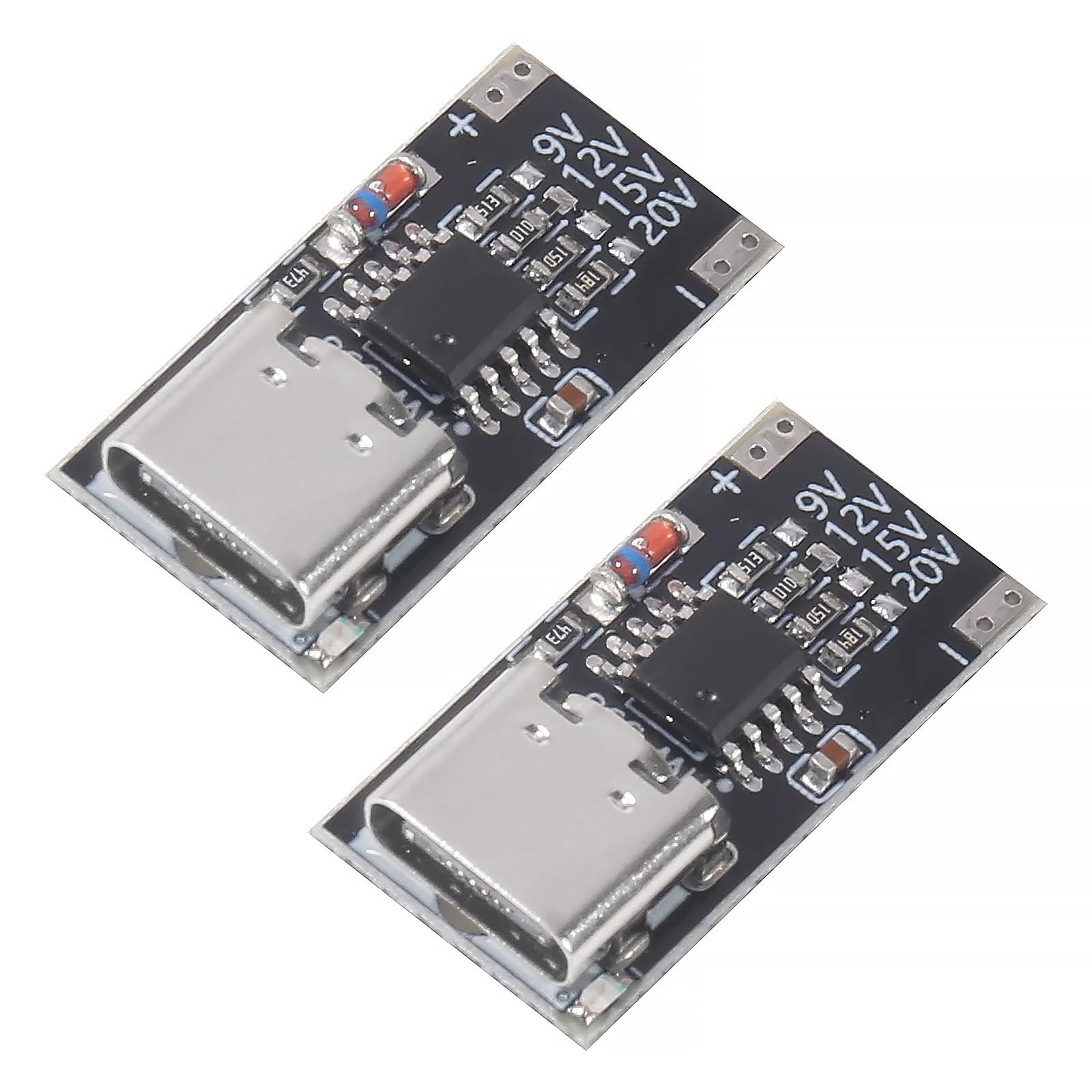

The function of this PD/QC decoy board:
Support a variety of fast charging protocols: PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC Trick out the voltage of the fast charging charger/charging treasure and use it as a DC power supply. For example, let the fast charging power bank output 9 volts and 12 volts to supply power to routers, light cats, etc. Turn some traditional DC-powered devices into TYPE-C port power supplies. Note:
Mobile phone chargers/charging treasures must first support fast charging such as PD/QC in order to deceive the fast charging voltage. Fix the four gears of 9/12/15/20 volts, what voltage is needed, just short the corresponding pads. For example, if you set the decoy to 20 volts, but your charger is only up to 9 volts, it will automatically downshift to deceive the output to 9 volts. The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.
★Support a variety of fast charging protocols:PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC
★USB-C port power supply; Turn some traditional DC-powered devices into TYPE-C port power supply
★USB-C PD Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c to 12v
★The size of the PD decoy board: 23*11.5*4mm
★Maximum support 5A; TYPE-C port power supply
