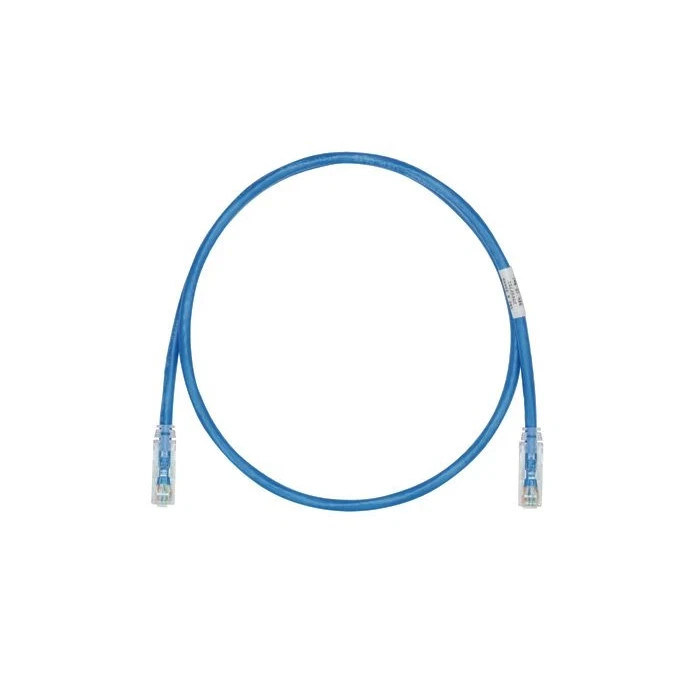

3 ft Panduit UTP28X3BU 28 AWG Copper Cat 6A UTP Patch Cord Blue Click Thumbnails to EnlargeDESCRIPTION
• Modular Patch Cord, Solid, F/UTP, 28 AWG, 3 ft., Blue.
• Cat 6A UTP Patch Cord is a 3 ft, 0.185-in.(4.7mm) diameter, Blue cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
FEATURES
• 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5)Parallel processing and high speed computing.
PRODUCT SPECIFICATIONSProduct Type Patch Cord
Conductor Gauge (AWG) 28Performance Level Category 6AConductor Type SolidCable Construction U/UTPPatch Cord Type UnshieldedPlug Housing Material
PolycarbonateJacket Material
LSZH MaterialConnector 1,2 Type Modular Plug
Overall Length (ft.) 3Nominal Cable Outside Diameter (In.) 0.185Wiring Scheme T568BMaximum Operating Temperature (°F) 167Minimum Operating Temperature (°F) 14Maximum Storage Temperature (°F)
158Boot ColorClearColor
BlueStandards Met Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MH, Meets ANSI/TIA-1096-A (formerly FCC Part 68),Meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 andtype 4 (24 cables in a bundle) PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS compliant.type 4 (24 cables in a bundle) PoE compliant.IEC Variant 60603-7Plug Type 8 PositionShipping
***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note 's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns
***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
