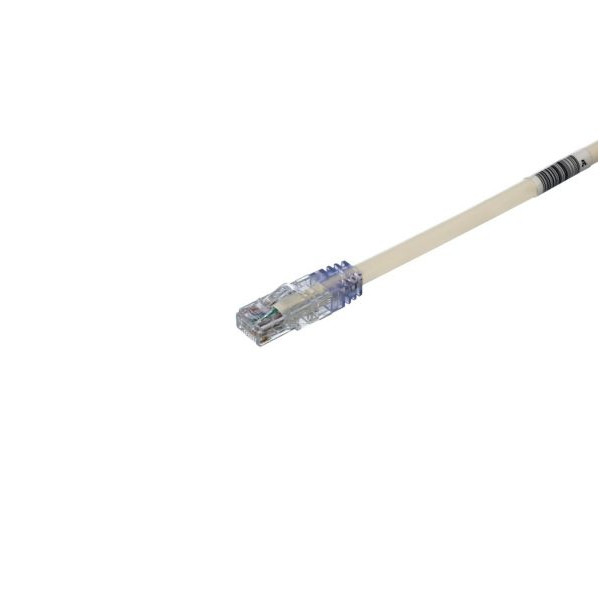

3 ft Panduit UTP6AX3 24 AWG Copper Cat 6A UTP Patch Cord Off White Click Thumbnails to EnlargeDESCRIPTION
• Modular Patch Cord, Solid, U/UTP - Unshielded Twisted Pair, 24 AWG, 3 ft., Off White.
• 10Gig Cat 6A UTP Patch Cord is a 3 ft, 0.250 in.(6.4mm) diameter, Off-White cord constructed of 24 AWG, unshielded, twisted pair, solid, CM cable with high-performance modular plugs. Its solid foil tape limits alien crosstalk, ensuring 10 Gb/s transmission. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
APPLICATIONS
• (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5)Parallel processing and high speed computing.
PRODUCT SPECIFICATIONSProduct Type Patch Cord
Conductor Gauge (AWG) 24Performance Level Category 6AConductor Type SolidCable Construction U/UTPPatch Cord Type UnshieldedPlug Housing Material
PolycarbonateJacket Material
PVCConnector 1,2 Type Modular Plug
Overall Length (ft.) 3Nominal Cable Outside Diameter (In.) 0.25Wiring Scheme T568BMaximum Operating Temperature (°F) 140Minimum Operating Temperature (°F) 14Maximum Storage Temperature (°F)
158Boot ColorClearColor
Off WhiteStandards Met Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.IEC Variant 60603-7Plug Type 8 PositionShipping
