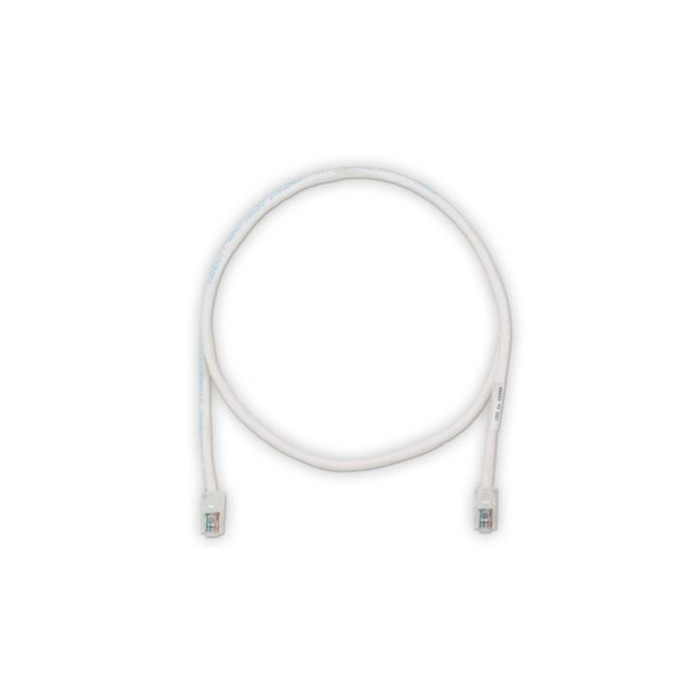

3 ft Panduit UTPCH3GYY 24 AWG Copper Cat 5e U/UTP Patch Cord Gray Click Thumbnails to EnlargeDESCRIPTION
• Patch Cord, Gray, Stranded, 24 AWG, 4 Pair, Modular Plug, Length 3 ft.
• The TX5E Cat 5E UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs on each end. the patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes.
APPLICATIONS
• (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP).
FEATURES
• 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch.
PRODUCT SPECIFICATIONSProduct Type Patch Cord
Conductor Gauge (AWG) 24Performance Level Category 5eConductor Type StrandedCable Construction U/UTPPatch Cord Type UnshieldedPlug Housing Material
PolycarbonateJacket Material
PVCConnector 1,2 Type Modular Plug
Overall Length (ft.) 3Nominal Cable Outside Diameter (In.) 0.215Wiring Scheme T568AMaximum Operating Temperature (°C) 60Maximum Operating Temperature (°F) 140Minimum Operating Temperature (°C)
-10Minimum Operating Temperature (°F) 14Maximum Storage Temperature (°C) 70Maximum Storage Temperature (°F) 158Minimum Storage Temperature (°C) -40Minimum Storage Temperature (°F) -40Boot ColorNo BootColor
GrayFlammability Rating
CMStandards Met Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.IEC Variant 60603-7Plug Type 8 PositionShipping
