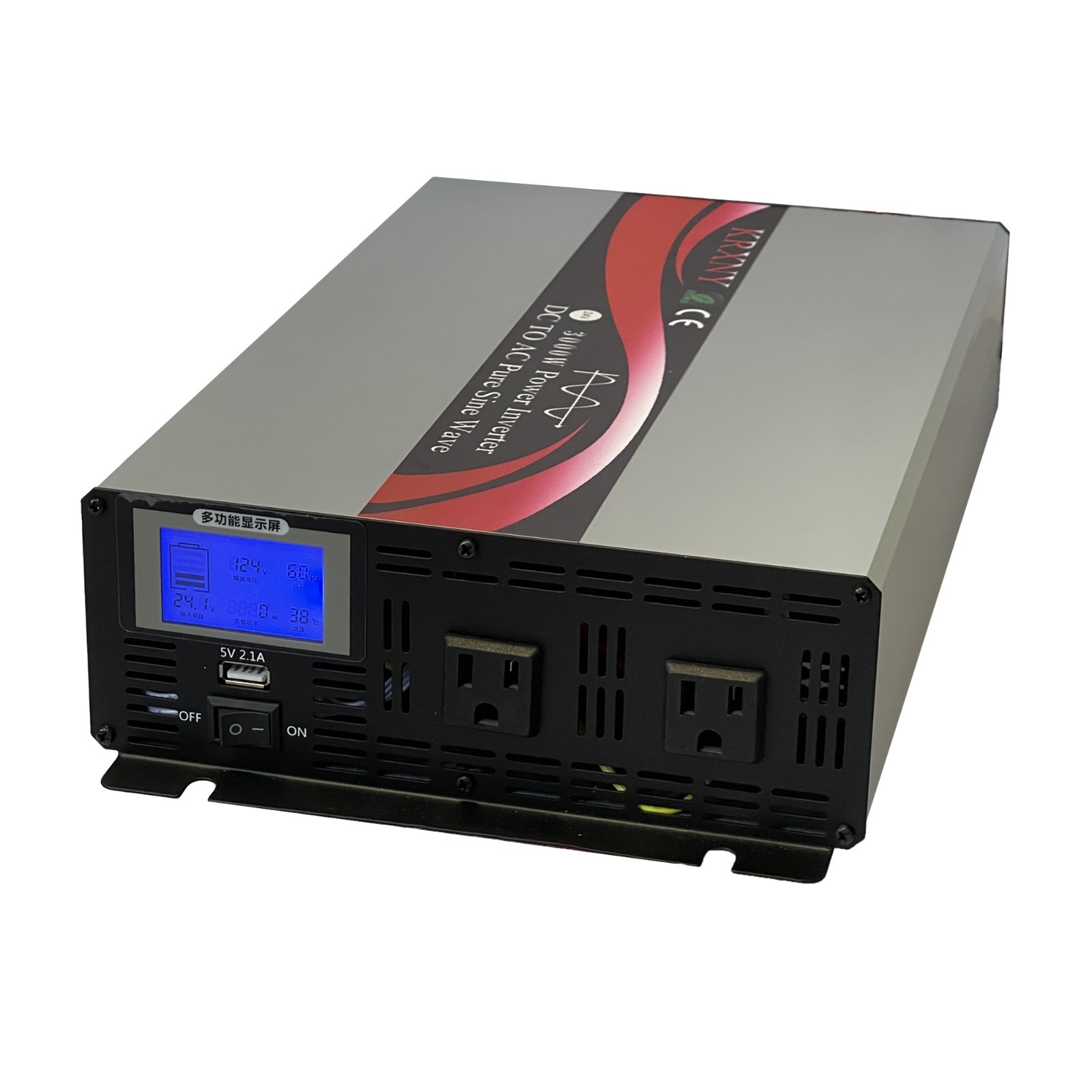

3000W Power Inverter Pure Sine Wave 12V 24V 48V 72V DC to 120V 240V AC USB LCD
Please Note:
1. Input voltage: DC 12V / 24V / 48V / 72V(only one voltage can be choose , if you need 48V , the delivery time will be longer , pls contact with us before you place order),2. Output voltage: AC100V / 110V / 115V / 120V / 220V / 230V / 240V(only one voltage can be choose),3. Output frequency: 50Hz or 60Hz (optional)(only one frequency can be choose),
4. Socket type : Universal , USA , pls choose one
Specifications :DC Voltage12V/24V/48V/72V
Voltage Range10-15VDC or 21-30VDC or 42-60VDC or 60-90VDCNO Load Current Draw<1.5AEfficiency>90%DC ConnectorCables With Clips or Car AdaptorAC Voltage110/120/220/230/240 VACContinuous Power3000WSurge Power6000W ( only last for 0.1ms )
WaveformPure Sine WaveFrequency50Hz/ 60Hz
AC Regulation3%Low Voltage Alarm10DC±0.5V or 20.5DC±1Vor 42DC±1V or 63DC±1VLow Voltage Shut Down9.5DC±0.5V or 19.5DC±1Vor 40DC±1V or61DC±1VOver LoadShut Off OutputOver Voltage Shut Down15.5V or 30.5V or 61.2V or 91V
Over ThermalShut Off Output AutomaticallyFusesShort CircuitWorking TemperatureBetween -10centi and +50centiWorking Humidity20%~90%RH non-condensingStorage TemperatureBetween -30centi and +70centiStartSoft StartCooling WaysCooling FanTotal Harmonic Distortion THD<5%Machine Size(mm)356*216*80mmPacking Size(mm)440*320*200mmNet Weight(kgs)3.7 kgs ( 8.1LBs )
Gross Weight(kgs)4.6 kgs ( 10.1LBs )
USB Port
5V 2A
Details :
6 Protections :User manual :
What is the resistance load appliances ?
The appliances which work through the resistance type elements is called resistance load. Such as mobile phones, computers, LCD TVs, incandescent lamps, electric fans, audio and video players, small printers, water dispenser, electric rice cooker, etc. For the resistance load appliances , you can choose the inverter whose power a little higher than the appliances' work power .
What is the inductive load appliances ?
The high power electrical appliances who work with the principle of electromagnetic inductive high , such as motor, compressor, relay , refrigerator , freezer , LED bulb , air-conditioner , electric drill and so on, the start power is far more than rated power (about 3 to 7 times). For example, a refrigerator in the normal operation of the power consumption is about 150 watts ,but the starting power is about 1000 watts or more . So for these inductive load appliances , you need choose the power inverter whose peak power is bigger than the start power of the appliances .
Certificate :WARRANTY : 18 MonthsTechnical support and service are provided for the inverter the whole life.
