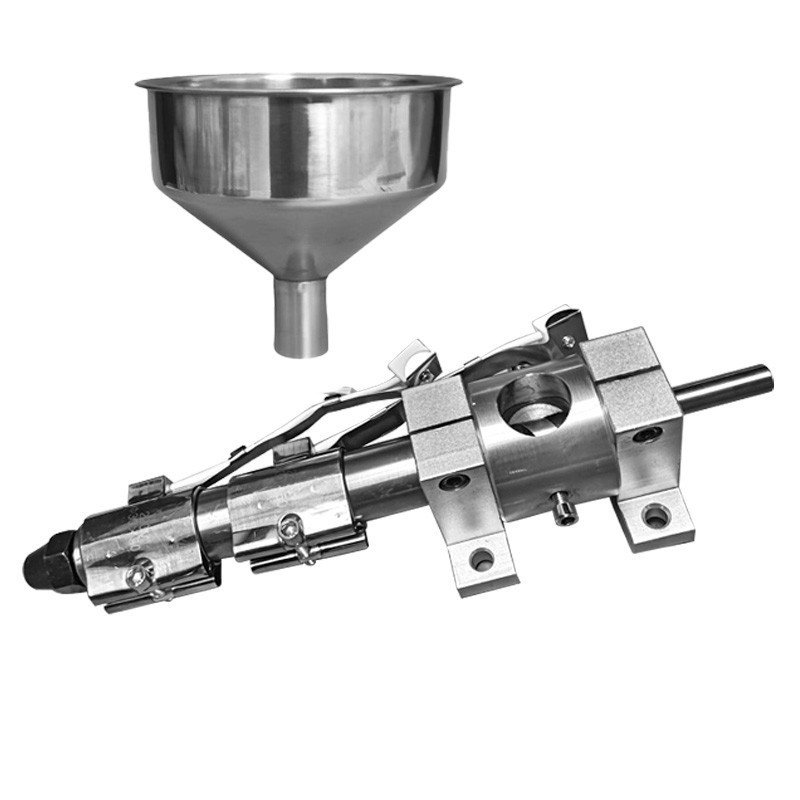

3D Filament Single Screw Extruder 110V/220V Plastic Extrusion Processing MachinePlease note: The voltage of this product is 110V and does not include the motor partThe machine is equipped with a 2.5mm nozzle by default. If you need a 1.75mm nozzle, it must be purchased separately. The single-screw plastic extruder is one of the core pieces of equipment in the plastic processing field. Its primary function is to continuously extrude solid plastic raw materials (such as granules and powders) into plastic products or semi-finished products with specific cross-sectional shapes through the rotation of the screw, which involves heating, melting, kneading, and pressurizing the materials.Features:Aluminum alloy heat sinkDual-clamp screw mounting200W ceramic heating coils for fast heating and easy wiring45-gauge steel screw, high-temperature resistantCompact device, ideal for experimental research, small batch testing, and extrusion of special 3D materials[ Three Heating Coil ]Voltage110VPower200W*3Heating methodHeating coilScrew sleeve outer diameter30mmTotal length300mmInlet diameter28mmScrew output shaft diameter15mmNozzle aperture2.5mmScrew diameter20mmScrew length330mm
Large Hoop
Large stainless steel hopper, conforming to the size of the heating shaft
45# steel screw
High temperature resistant
Clamp Fixation
Screw double clamp fixation
[ Double Heating Coil ]Voltage 110V Power 200W*2 Heating method Heating coil Screw sleeve outer diameter 30mm Total length 300mm Inlet diameter 28mm Screw output shaft diameter 12mm Nozzle aperture 2.5mm Screw diameter 16mm Screw length 280mm
About Installation:
1. Thermostat: K-type
2. Recommended Motor: Speed greater than 50 rpm, power greater than 200 W, and torque greater than 15 Nm
Instructions:
1. This product has a temperature resistance of no more than 300°C/572℉. Do not use without temperature control. Never use at temperatures exceeding 300°C/572℉.
2. When installing the coupling, ensure the screw and motor shaft are aligned to prevent deviation and screw damage.
3. Never start the machine cold. Ensure the sleeve temperature reaches the material melting point before starting. Do not overfill the machine during initial use to avoid excessive screw resistance and possible screw jamming.
