Description Please note: The voltage of this product is 110V and does not include the motor part
The machine is equipped with a 2.5mm nozzle by default.
The single-screw plastic extruder is one of the core pieces of equipment in the plastic processing field. Its primary function is to continuously extrude solid plastic raw materials (such as granules and powders) into plastic products or semi-finished products with specific cross-sectional shapes through the rotation of the screw, which involves heating, melting, kneading, and pressurizing the materials.

[ Three Heating Coil ]
Voltage: 110V
Power: 200W*3
Heating method: Heating coil
Screw sleeve outer diameter: 30mm
Total length: 300mm
Inlet diameter: 28mm
Screw output shaft diameter: 15mm
Nozzle aperture: 2.5mm
Screw diameter: 20mm
Screw length: 330mm

About Installation:
1. Thermostat: K-type
2. Recommended Motor: Speed greater than 50 rpm, power greater than 200 W, and torque greater than 15 Nm

Instructions:
1. This product has a temperature resistance of no more than 300°C/572℉. Do not use without temperature control. Never use at temperatures exceeding 300°C/572℉.
2. When installing the coupling, ensure the screw and motor shaft are aligned to prevent deviation and screw damage.
3. Never start the machine cold. Ensure the sleeve temperature reaches the material melting point before starting. Do not overfill the machine during initial use to avoid excessive screw resistance and possible screw jamming.
Product Highlights Feature:

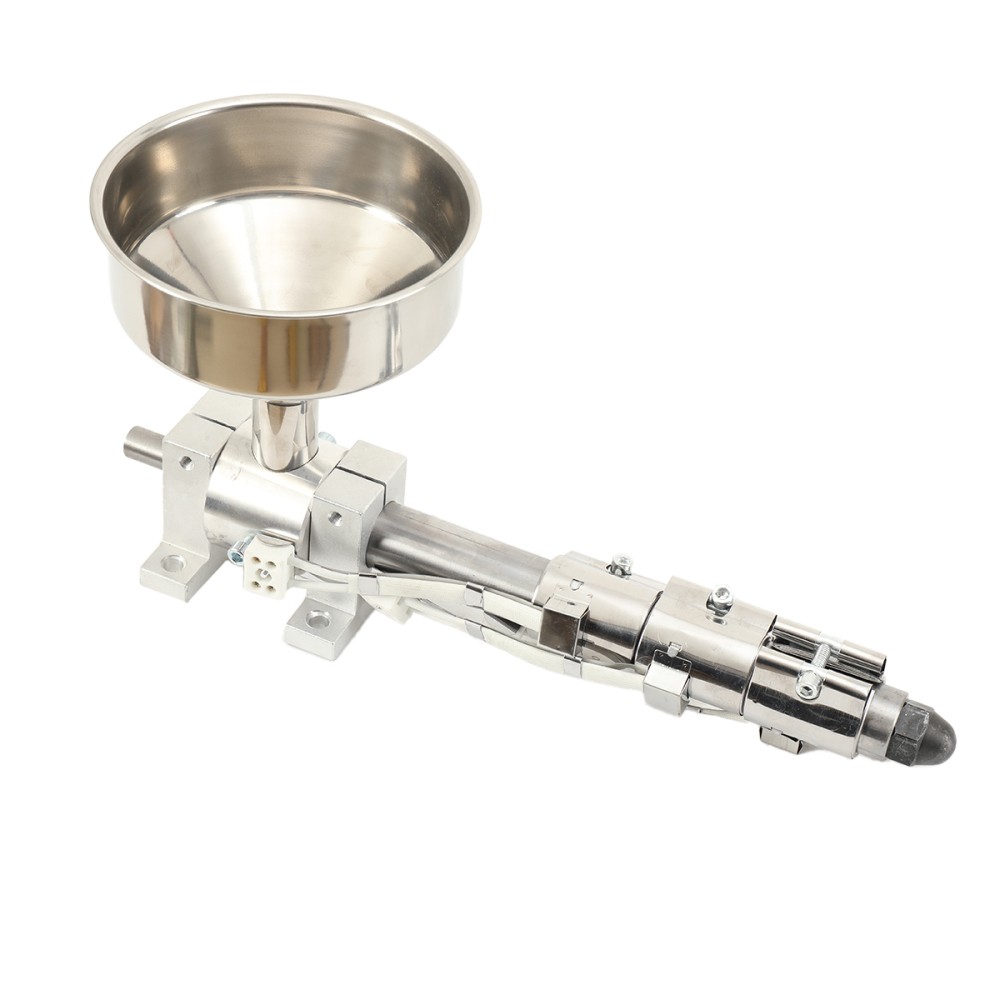

|This is the filament extruder accessory with a single-shaft screw, 3 pieces 110V heating coils and a hopper
|3 pieces 200W ceramic heating coils, fast heating and easy wiring for diy plastic extruder machine
|45# steel screw, high temperature resistant, can be used within 572℉. Applicable to extrusion of PE PP PS PVC POM PA PC ABS PET and other materials
|It's the main accessory of the screw extruder. You need to prepare a K-type temperature controller and a motor with a speed greater than 50rpm, a power greater than 200W and a torque greater than 15 Nm. You can easily assemble your own 3D filament extruder
|The equipment is compact and designed for experimental research, small batch testing, 3D consumables extrusion molding, etc.
| Package includes Content:
1x 3D Filament Single Screw Extruder Payment Shipping Returns Contact Us 1. All payments must be prepaid.
