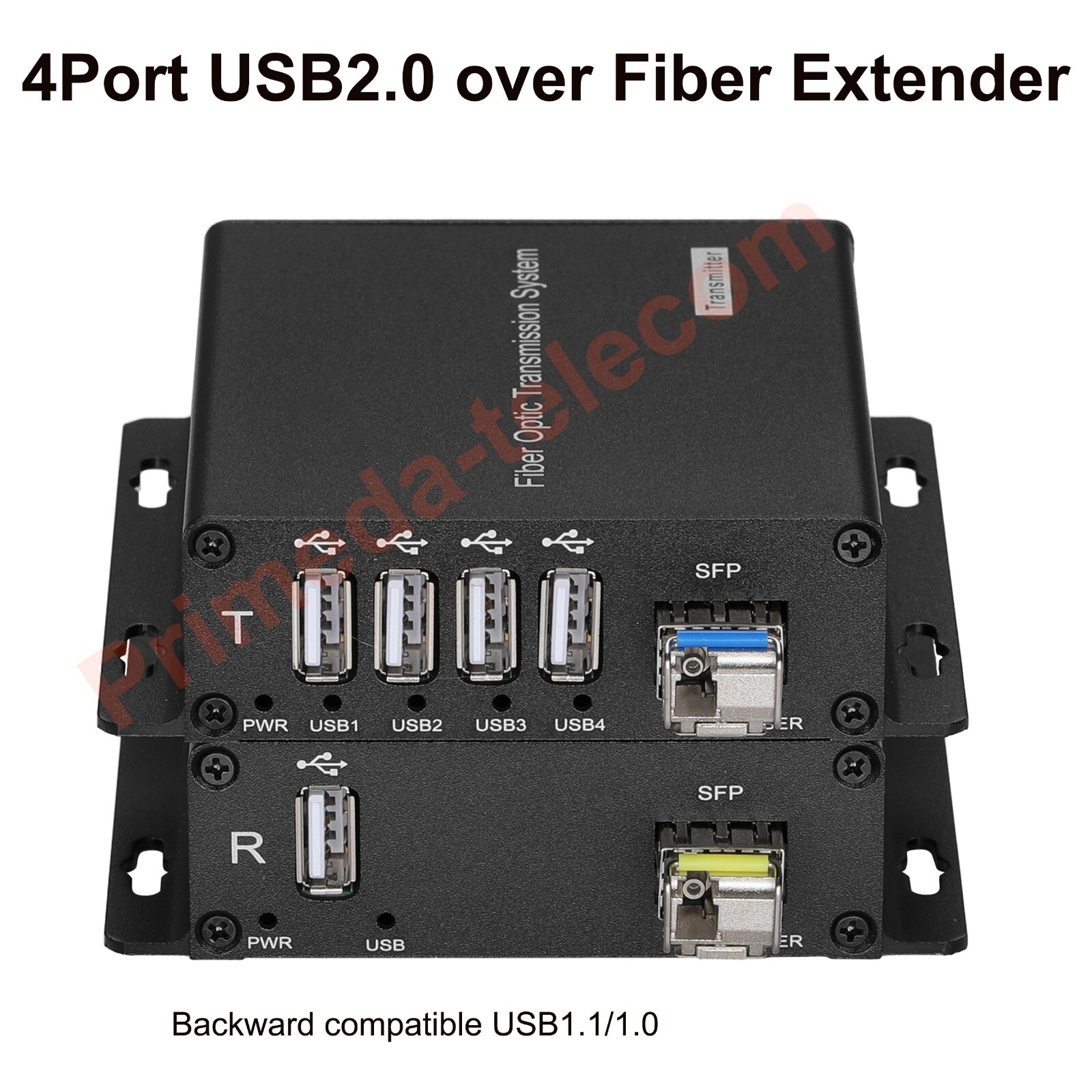

High Quality USB2.0 over fiber Extender, A pair

Feature:

【USB2.0 over Fiber】The USB2.0 over fiber extenders can transmit 4-channel USB2.0 signal over a fiber optic cable, Complies with the general serial busUSB2.0 specification and backward compatible with USB1.1/1.0

【Long Transmission range】It can work on single-mode single fiber cable up to 12.4 miles (20Km).

【Wide Applications】Applicable for Industrial video transmission,Machine vision system,HD video surveillance system,High-speed data acquisition system,Remote storage,Digital signage and TV wall, Industrial printer system and More

【LEDs Monitoring】LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system

【Plug and Play】No need to set up ,Plug and play. Simply plug in an Optical LC port and USB connectors at TX and RX sides, it will work instantly

Transmission speed:

100m distance rate>=60Mbps(6MB).

500m distance>=50Mbps(5MB).

20km>= 16Mbps(1.6MB)

Specification:

Fiber connector :LC (Single fiber)

Case Material: Aluminium alloy

Wavelength: 1310-1550nm

Working voltage:

Power supply voltage of the transmitter:5V

Power supply voltage of the receiver:12V

Power adaptor: Standard US/EU/AU/UK is optional.

Product size:104*104*28mm (LxWxH)

Working temperature: -20°C ~75°C

Storage temperature:-40℃~85℃

Relative humidity:From 5 to 95% (non-condensing)

LED lights:

PWR

On: The device is powered on

Off: The device is powered off

FIBER

On: fiber signal

Off: no fiber signal

USB 1-4

Slow flash: The USB device is recognized

Off: The USB device is not recognized

Package Include:

1 x USB2.0 fiber Transmitter

1 x USB2.0 fiber Receiver

1 x USB2.0 cable

1x External power adapterfor RX. (TX is supplied power by computer)

1 x FREE 3M LC-LC fiber patch cord

1x User Manual
