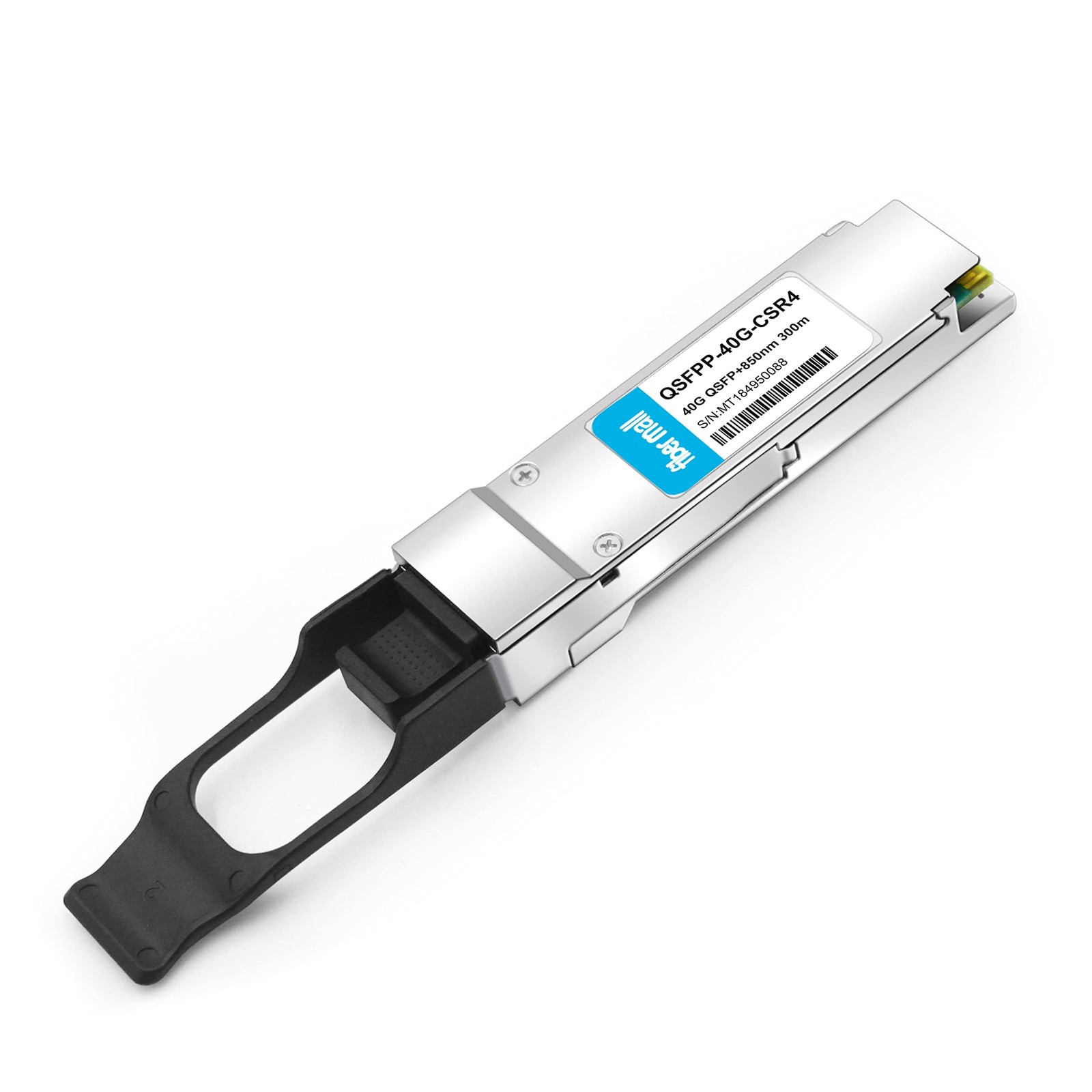

40G QSFP+ CSR4 Compatible with Mellanox MC2210411-SR4E, 40GBASE-SR4E QSFP+ 850nm 400m MTP/MPO MMF DOM Optical Transceiver Module

• 【QSFP+ 40G】Mellanox 40Gigabit Ethernet, coding as Mellanox MC2210411-SR4E also compatible
• 【40GBASE-CSR4】QSFP+ transceiver module, 40Gbps,multimode 850nm, 400m, MTP/MPO connector, Four-channel full-duplex, Hot Pluggable, support DOM
• 【Protocols】40G Ethernet, MTP/MPO optical connector Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant
• 【3 Warranty】- Enjoy Fibermall 30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance
• 【Customization】Fibermall supports regular custom service for your options

Fiber Mall Mellanox MC2210411-SR4E-Me Compatible QSFP+ Optical Transceiver Module is used in 40GBASE Ethernet throughput up to 400m over MMF at 850nm wavelength via MTP/MPO connector. It can also be used in 4x10G mode along with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR optical interfaces.

 Product Features

v Mellanox Genuine : MC2210411-SR4E

v Form Type: QSFP

v 4 independent full-duplex channels

v Up to 11.2Gbps per channel bandwidth

v Aggregate bandwidth of > 40Gbps

v MTP/MPO optical connector

v QSFP MSA compliant

v Digital diagnostic capabilities

v Capable of over 300m transmission

v CML compatible electrical I/O

v Single +3.3V power supply operating

v TX input and RX output CDR retiming

v Built-in digital diagnostic functions

v Temperature range: 0°C to 70°C

v RoHS Compliant Part

 Applications

v Rack to rack

v Data centers

v Metro networks

v Switches and Routers

v Infiniband 4x SDR, DDR, QDR

 Platform Support

 Mellanox MC2210411-SR4E is designed for a wide range of  Mellanox equipment.

 SX1410

SX1012

SX1710

SX1036

SN2700

SX1024(52)

SN2410

IS5030

SX1024

SN2100

 Package

1*sfp dust cover

1 *pair 40Gbps CSR4 fiber transceiver module

1* package box
