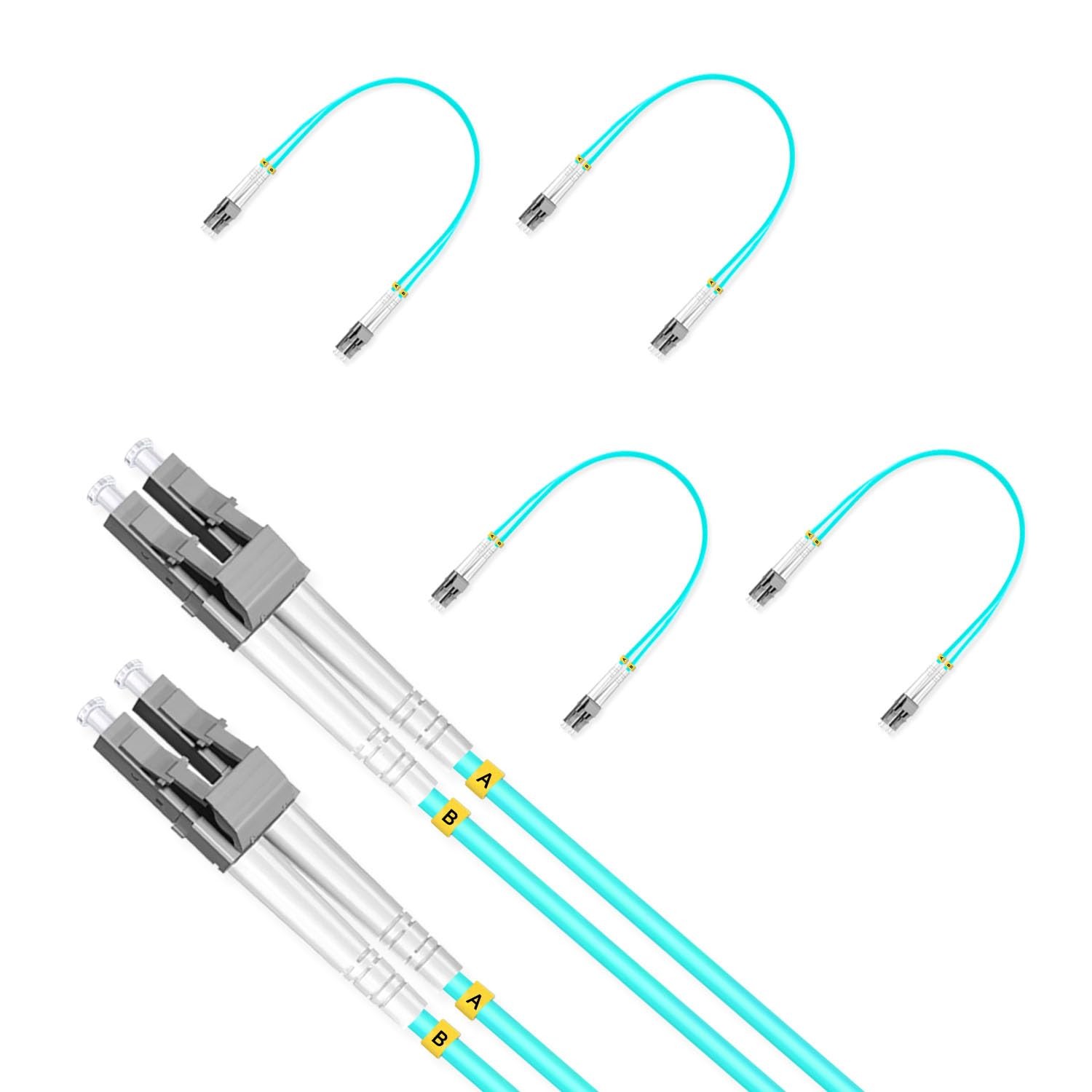

Welcome to my stores!Fantastic Offers Await! where satisfaction is our guarantee.5Pcs 0.3 Meter Multi-Mode Fiber Optic Patch Cord LC UPC to LC UPC Duplex, Fiber Cable Jumper OM3 50/125μm, 850nm/1300nm LSZH 3.0mmGalleryDetails

【Product Description】 The main function of fiber optic patch cords is to serve as a key component connecting different devices to the fiber optic cabling system. It is designed with a thick protective layer, typically used for connecting optical transceivers and termination boxes. Fiber optic patch cords are widely used in various applications, including fiber optic communication systems, fiber optic access network, fiber optic data transmission, local area network (LAN), fiber optic cable television (CATV), fiber optic sensors, and many other fields. 【Product Details】
Connector：LC/UPC to LC/UPC
Cable Diameter：3.0mm
Fiber Type：multi-mode OM3
Fiber Count：Duplex
Core Diameter：50/125μm
Wavelength：850nm/1300nm
Sheath material：LSZH
Core type：A-level zirconia ceramic core
Insertion Loss：≤ 0.30
Returnback Loss：≥ 25dB
Repeatability：≤ 0.2dB
Interchangeability：≤ 0.2dB
Working Temperature： -20 ℃~70 ℃
Storage Temperature： - 40 ℃~80 ℃
Cable Length：0.3M/0.98ft
Packing Quantity：5 PCS

Key Features

• 【Main Parameters】5Pcs 0.3 Meter (0.98ft) LC UPC to LC UPC multi-mode Duplex OM3 Fiber Optic Patch Cord，50/125 μm fiber core, which supports 850nm/1300nm wavelength
• 【High Performance】The fiber patch cord ≤0.2dB repeatability and interchangeability, ≤0.3dB insertion loss, and ≥25dB return loss. The low insertion loss and high return loss ensure stable transmission. which can operates reliably in a temperature range of -20~70°C.
• 【A-B Cable Mark】 the duplex fiber patch cable comes with A-B cable mark for distinguishing the fiber connection, which can make fiber fault checking or fiber connection changing easier.
• 【3.0mm&LSZH Fiber Jacket 】The Fiber Optic Patch Cord is buffered to the specified size of 0.9mm with LSZH material, and a para-aramid yarn is used as a strength member to wrap the 0.9mm buffer layer. The 3.0mm external LSZH jacket is used to protect the internal structure. It is equipped with an A-level zirconia ceramic ferrule, ensuring data transmission quality and providing good tensile performance and flame retardancy for the cable.
• 【Short type fiber cable cord 】Short type fiber patch cord can be used for equipment cabling in the same device rack, abvoiding cable messing, which can make fiber fault checking or fiber connection changing easier.
• 【OM3 50/125μm Fiber】Compared to traditional Fiber Optic Patch Cords, the 50/125μm OM3 bend-insensitive multi-mode fiber optic patch cord has lower attenuation when bent or twisted, making installation and maintenance more efficient.
• 【Wide Application】The fiber optic patch cords are suitable for various network connections, including SFP optical modules, and are widely used in data centers, enterprise network, telecommunications rooms, servers, cloud storage network, and other scenarios.
