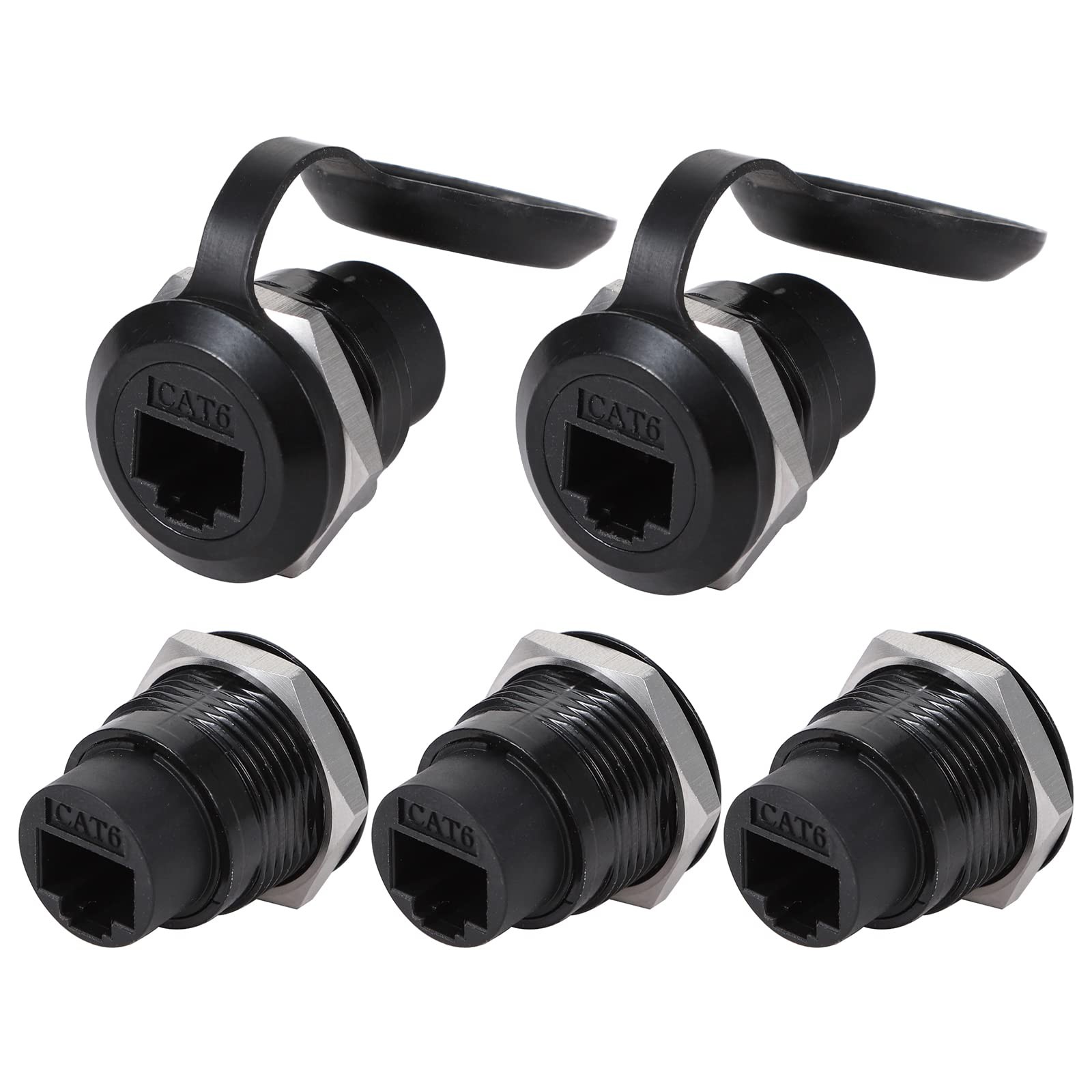

5PCS RJ45 Panel Mount Connector, Cat6 8P8C Ethernet LAN Pass Through Cable Coupler Female to Female Extension Adapter with Waterproof/Dust CapProduct Synopsis

The RJ45 CAT6 panel mount connector is a type of Ethernet port that can be mounted onto a panel or enclosure, providing easy access for connecting network devices. It is designed to support data transfer rates up to 10 Gbps over twisted pair copper cabling, and is backward compatible with lower rated speeds such as 1000BASE-T and 100BASE-TX. Specifications:
Number of cores: 8 PIN
Waterproof rating: IP65（with Waterproof/Dust Cap）
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type
Case wall thickness: Threaded type: >2mm, through-hole type: 0.3~7mm
Mounting Hole Size: 24mm
Thread size: 24*1.5
Connector transmission classification: CAT6
Transmission speed range: 10 Mbps, 100 Mbps, 1000 Mbps network
Bandwidth: 250MHz
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: ＞500MΩ
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
resistance: ＜10MΩ
Material:
Shell: Zinc die casting, nickel plated
Socket pin: 0.5mm diameter phosphor copper wire
pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Package Included:
5x Waterproof RJ45 Connector
5x Waterproof/Dust Cap Cover

Unique Attributes

• Usage: The RJ45 CAT6 panel mount connector is a type of Ethernet port that can be mounted onto a panel or enclosure, providing easy access for connecting network devices. Provides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.
• Durability: Zinc alloy die-cast housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.
• Stable & High-speed Transmission: The copper needles uses brass solid terminals and the surface is gold-plated. the stability of the current. Transmission speed up to 1000Mbps.
• EASY INSTALLATION: No soldering, no installation tools, just plug the standard crystal head directly for quick installation.
• Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to .
