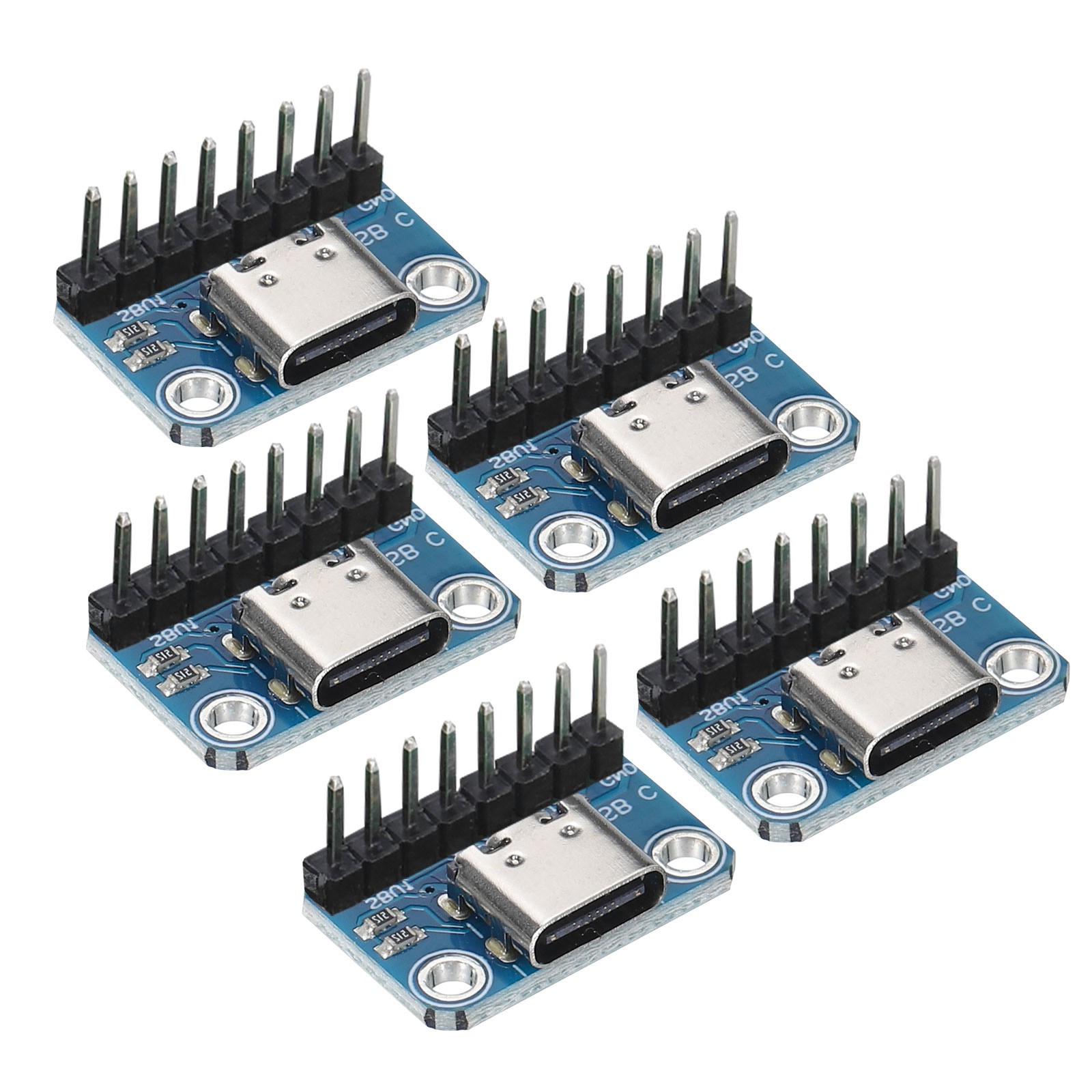

5Pcs USB TYPE C Breakout Board Female 2.54MM Connection w/ Pin Header Connector
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
5Pcs USB TYPE C Breakout Board Female 2.54MM Connection w/ Pin Header Connector
Price: CN $16.03
Document What is this?USB Type C adapter board features symmetrical reversible connectors, more data pins and higher current output capability, and an analog USB 2.0 downstream connection resistor configuration.The two 5.1K resistors on the CC1 pin indicate that the upstream port is providing 5V and up to 1.5A of current.USB TYPE C Breakout Board is mainly used for USB data line testing, computers, and DIY electronics.What will I get?Type: USB Type C FemalePin Number: 8-PinMaterial: Plastic, MetalColor:BluePCB Board Total Size:20*14Pin Size:20*11Pin pitch:2mm In the package: 5 Pcs x USB TYPE C Breakout Board with PCB board connector,8pcsx 8-pin Pin HeaderAre there any advantages of the product?USB Type C test board is made of good quality material, which can extend the life of the product.How to use it?Connect VBUS to 5V input, GND to ground, and D+,D-. You can look at the CC and SBU pins to determine cable polarity or to send data, or disconnect.What should I notice?Note: Please understand that there may be slight color differences due to different lighting and monitor differences.
    5Pcs USB TYPE C Breakout Board Female 2.54MM Connection w/ Pin Header Connector What is this?
    USB Type C adapter board features symmetrical reversible connectors, more data pins and higher current output capability, and an analog USB 2.0 downstream connection resistor configuration.The two 5.1K resistors on the CC1 pin indicate that the upstream port is providing 5V and up to 1.5A of current.USB TYPE C Breakout Board is mainly used for USB data line testing, computers, and DIY electronics.What will I get?
    Type: USB Type C Female
    Pin Number: 8-Pin
    Material: Plastic, Metal
    Color:Blue
    PCB Board Total Size:20*14
    Pin Size:20*11
    Pin pitch:2mm
    In the package: 5 Pcs x USB TYPE C Breakout Board with PCB board connector,8pcsx 8-pin Pin HeaderAre there any advantages of the product?
    USB Type C test board is made of good quality material, which can extend the life of the product.How to use it?
    Connect VBUS to 5V input, GND to ground, and D+,D-. You can look at the CC and SBU pins to determine cable polarity or to send data, or disconnect.What should I notice?
    Note: Please understand that there may be slight color differences due to different lighting and monitor differences. Hot Item
