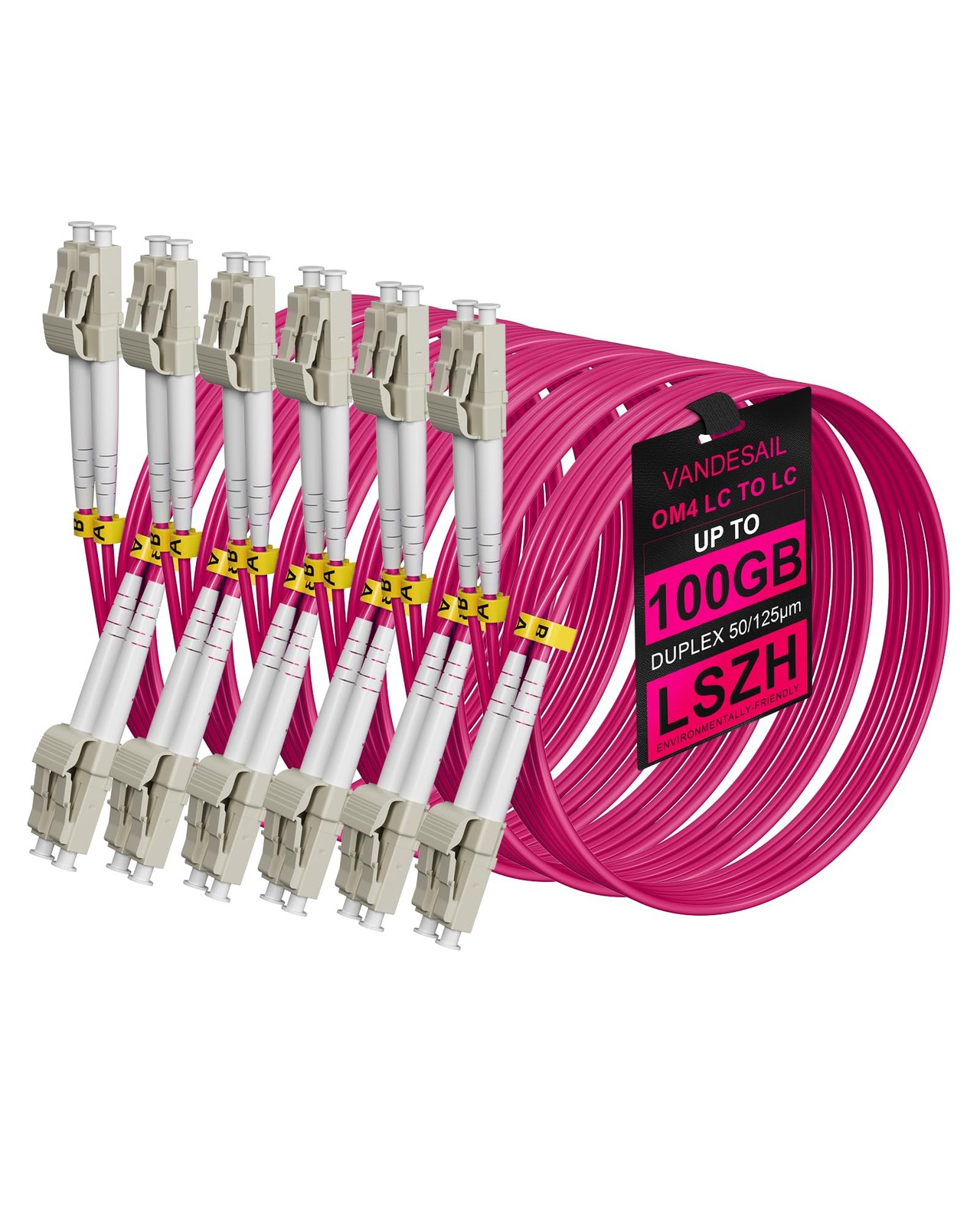

LC to LC Multimode Fiber Patch Cable OM4
Lc to lc multimode fiber patch cable om4 is crucial components ensuring efficient and reliable data transmission across various applications.
Leveraging the latest OM4-grade fiber technology, these multi mode fiber can achieve transmission speeds of 10 gigabits per second (10Gbps) , 40Gbps and up to 100Gbps. This capability makes them ideal for bandwidth-intensive tasks like data center networking, cloud computing, and multimedia streaming, meeting the demands of modern connectivity.
In addition to high-speed transmission, fiber patch cord is renowned for their low loss and superior signal stability. Their premium silicon dioxide fiber core minimizes signal attenuation, ensuring minimal data degradation over long distances and in challenging environments.
Product Details:
Fiber Type: OM4 fiber patch cable
Connector: LC to LC
Length: 3M
package: 6 Pack
Stable Transmission: Equipped with an eco-friendly LSZH jacket and zirconia ceramic ferrules, ensuring optimal insertion loss (≤0.3dB) and return loss (≥30dB). Operates within -20~70°C.
Wide Application: om4 fiber lc to lc suitable for high-density applications such as Gigabit Ethernet, fiber channel, local area networks, data centers, and commercial environments.
Premium Materials: om4 patch cable lc made with Low Smoke Zero Halogen (LSZH) material
Transmission Distance: lc lc multimode om4 supports data rates up to 100 Gbps. At 10 Gbps, it can reach distances up to 550 meters, and at 40 Gbps and 100 Gbps, up to 150 meters. With an effective bandwidth of 4700 MHz·km, it meets high bandwidth and low latency demands.
【Wide Usage】The OM4 Fiber LC to LC multimode fiber patch cable OM4 is designed for high-density applications in Gigabit Ethernet, fiber channel, local area networks, data centers, premise installations, wide area networks, and commercial environments. Ideal for connecting 10G SR, 10G LRM, SFP+ transceivers, and other 10G/40G/100G Ethernet devices, it serves as the preferred fiber optic specification for 40G/100G Ethernet connections.
【Transmission Distance】OM4 fiber LC to LC cables feature high bandwidth and long transmission distances, supporting data rates of up to 100 Gbps. At a 10 Gbps rate, they can reach distances of up to 550 meters, while at 40 Gbps and 100 Gbps rates, they can reach up to 150 meters. With an effective bandwidth of 4700 MHz·km, OM4 LC to LC fiber jumpers are widely used in data centers and enterprise networks to meet high bandwidth and low latency demands.
【Transport Stability】OM4 multimode fibers are equipped with an eco-friendly LSZH jacket and zirconia ceramic ferrules, ensuring optimal insertion loss (≤0.3 dB) and return loss (≥30 dB). Operating within a temperature range of -20°C to 70°C, OM4 fiber patch cables stable signal transmission and precise alignment to maintain signal integrity, in accordance with EIA/TIA 604-2 standards.
【Reliable Compatibility】Designed to meet industry standards, LC to LC OM4 fiber patch cables seamlessly integrate with various network devices and configurations. Whether establishing connections in data centers, enterprise networks, or commercial environments, OM4 patch cables deliver dependable performance and connectivity, facilitating smooth data transmission across different platforms and systems.
【Premium Materials】fiber patch cables OM4 are crafted from premium materials, with an outer jacket made of Low Smoke Zero Halogen (LSZH) material, providing flame-retardant properties.This safety feature helps to minimize the release of harmful gases or smoke in the event of a fire,making it suitable for indoor network environments and contributing to the protection of personnel and equipment.
