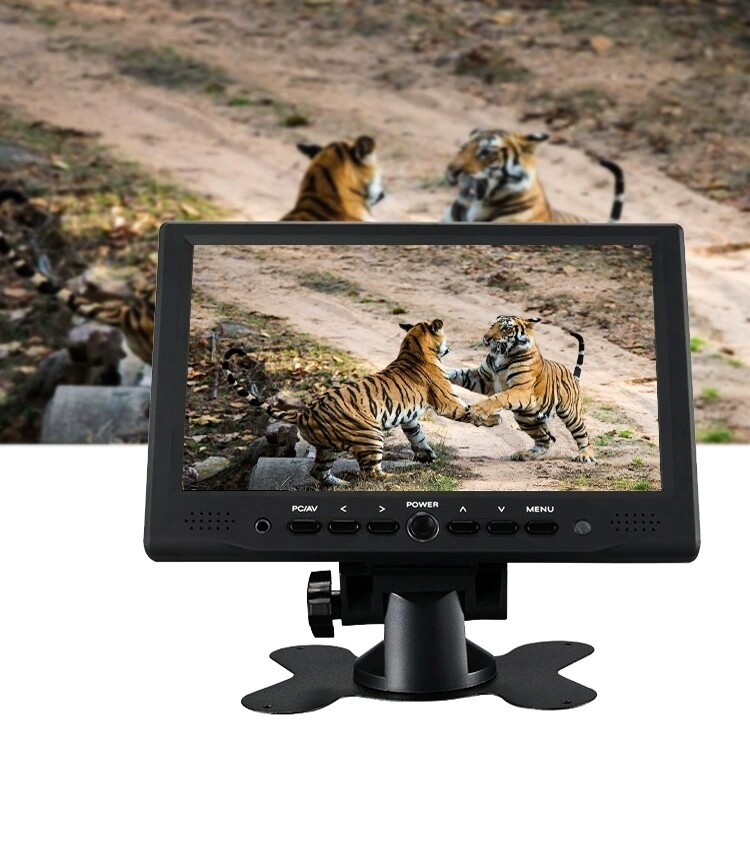

7'' IPS LCD PC Display Screen CCTV Security Monitor VGA HDMI 1080P for DSLR DVR UntitledHighlights:
1. 7 inch IPS LCD screen. Bright color, clear picture, less consumption.
2. Support DOS / Window 9X, ME, 2K, XP, 7, 8, Vista, NT, CE, LINUX, and so on operating system.
3. Support 1 way video input, 1 way VG input, 1 way HDMI input.Black screen when there is no signal input.
4. Standard HDMI high definition video input, support 1080P and all other formats.
5. For DSLR, vending machine, entertainment area, transportation system medical facility, car monitor industrial Equipmen.
Item Specifiaction:
- Display Size: 7 Inch
- Resolution: 1024 x 600
- Voltage: DC 12-24V / AC 110-220V
- System: PAL / NTSC( auto switch )
- Working Temperature: -20℃~+70℃
- Screen Ratio: 16:9 / 4:3
- Placement: In-Dash
- Material Type: ABS
- Display Area: 154.08 (W) x 85.92 (V)
- View angle: 70 / 70 / 50 / 70(1yp) (CR>=10) (L / R / U / D)
- Contrast Ratio: 500:1
- Support: 640 x 480 / 800 x 600 / 1024x768 /1920 x 1280RGB
- HDMI MODE Support: 480I / 480P / 720(50) / 720(60) / 576I / 576P / 1080I(50) / 1080P(50) / 1080I(60) / 1080P(60)
- Power Supply: DC 12V / AC 110-220V
- Power: 5W
- Control: Button control / touch panel control
- Working Humidity: 10 ~ 90%
- Storage Humidity: 5 ~ 90%
- Product Weight : 700 G / 24.69 Ounces
- Product Dimensions (L*W*H) : 200*120*50 MM / 7.87*4.72*1.97 Inch
- Package Weight : 630 G / 22.22 Ounces
- Package Dimensions (L*W*H) : 224*150*75 MM / 8.82*5.91*2.95 Inch
Function of keys:
1. "POWER": On / Off
2. "VOL-": Select this key to adjust volume "down"
3. "VOL+": Select this key to adjust volume "up"
4. "V1/V2": To switch the mode to AV1/AV2/VGA/HDMI
5. "MENU": Press the key can circularly open menu
Packing Included:1 X 7" IPS LCD Monitor1 X Remote Control (CR2025 Battery Not Included)1 X AV Cable1 X Wall Adapter Charger(US/UK/EU/AU Plug Optional)1 X Mount Holder1 X User Manual
