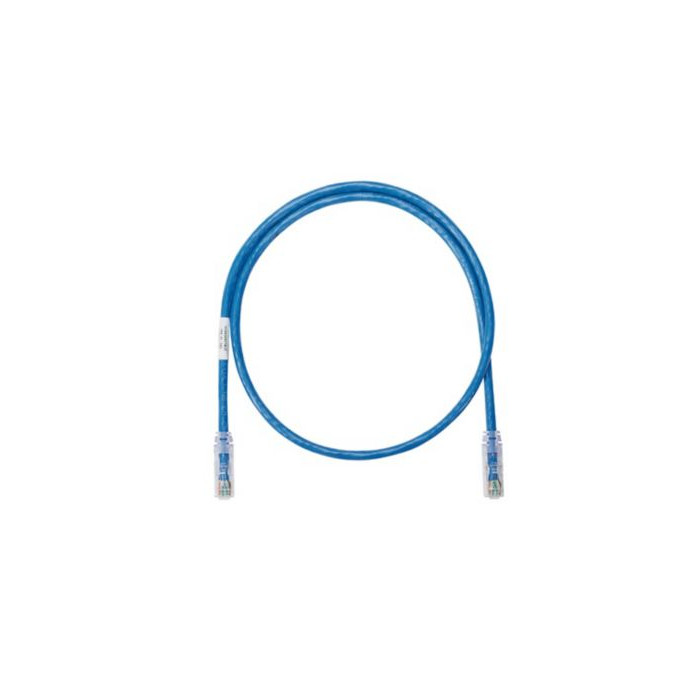

7 ft Panduit NK6APC7BU 26 AWG Copper Cat 6A UTP Patch Cord Blue Click Thumbnails to EnlargeDESCRIPTION
• Modular Patch Cord, 26AWG, Stranded, 4 Pairs, U/UTP - U/Unshielded Twisted Pair, Length 7 ft.
• Cat 6A UTP Patch Cord is constructed of 26 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord’s slender strain relief boot provides easy access in high-density applications. The patch cord is 7 feet in length and blue.
FEATURES
• 100% performance tested for wiremap, NEXT, and return loss, Integral pair manager, Patented tangle free latch, Slender strain relief boot with a variety of colors and lengths available.
APPLICATIONS
• Used in all work area outlets and patch panels; wired to be compatible with both T568A and T568B wiring schemes. Suitable for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet); 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM ; Token Ring 4/16; and Voice over internet protocol (VoIP).
PRODUCT SPECIFICATIONSProduct Type Patch Cord
Conductor Gauge (AWG) 26Performance Level Category 6AConductor Type StrandedCable Construction U/UTPPatch Cord Type UnshieldedPlug Housing Material
PolycarbonateJacket Material
LSZH MaterialConnector 1,2 Type Modular Plug
Overall Length (ft.) 7Nominal Cable Outside Diameter (In.) 0.25Wiring Scheme T568BMaximum Operating Temperature (°F) 140Minimum Operating Temperature (°F) 14Maximum Storage Temperature (°F)
158Boot ColorClearColor
BlueStandards Met Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA channel requirements at swept frequencies up to 500 MHz, Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6A component requirements at swept frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A (formerly FCC Part 68); contacts plated with 50 microinches of gold for superior performance, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant.IEC Variant 60603-7Plug Type 8 PositionShipping
***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note 's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns
***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
