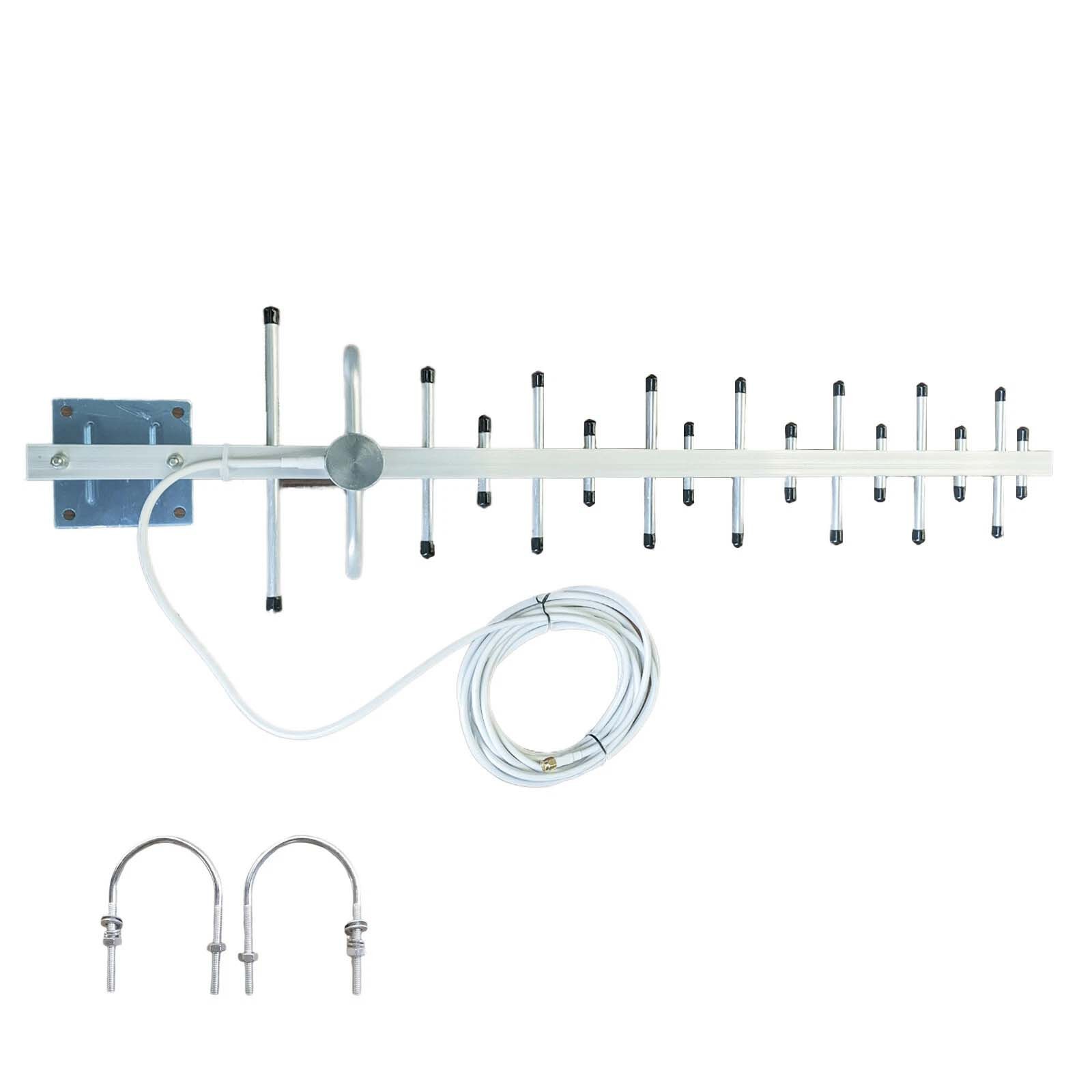

700-2700MHz 10dBi Directional Yagi Antenna for GSM 3G 4G LTE outdoor
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
700-2700MHz 10dBi Directional Yagi Antenna for GSM 3G 4G LTE outdoor
Price: US $85.99

ITEM ID:AN_GSM_Yagi_900_1800

High quality Aluminum alloy frame

7/24 Operation 900/1800/PHS system

Long distance telecommunicationElectric MHz

Band Width:2000 MHz

Gain:10 dBi

Element:16

Beam width:H:48⁰ V:40⁰

F/B ratio:≥16 dB

V.S.W.R:≤2

Input Impedance:50 ohm

Polarization:Horizontal or vertical

Maximum power:100W

Lightning protection:DC groundMechanical mm

Cable length:5 m

Antenna weight:1 kg

Working Temp:-40℃~+60℃

Rated wind velocity:60 mps

Clamp:U

Pole diameter:ø40 to ø50mm

Connector type:SMA male
