AC Input: AC 100V ~ 240V
Passive PoE devices that support MikroTik PoE with an input voltage of DC 8-30V or 18-30V
8 PORT POE INJECTOR supports 10/100/1000M Ethernet, LAN RJ45 sockets is for Switch/PC/HUB 1/2 & 3/6 & 4/5 &7/8 are transmitting data. POE RJ45(power+data) socket is to deliver data and power. Pin 1/2 & 3/6 & 4/5 & 7/8 transmitting data, Pin 4/5(+) & 7/8(-) is for power.This poe splitter can be used with any Ethernet switches. My favorite feature is that can still manage and view every network ports as before when worked with managed switches as opposed to a normal unmanaged POE UAP-AC-LR UAP-AC-LITE
This is a special PoE injector with 24V DC out, it can not Compatible with 802.3af(48v). It could work only on some special customized 24V PoE device
Whichdo not compatible with IEEE 802.3af and IEEE 802.3at, this is an unusual non-standard24Vunsolicited Power Over Ethernet switch. It supplies powerNO MATTER WHAT, so don't plug the "PoE" side into anything that isn't ready for it.
Features:
- Compatible with 10/100/1000Mbps fast ethernet
- Use with any ethernet switch
- Ideal for PoE IP Cameras,VOIP,AP
- 8 Port Injector(8Lan&8Lan+PoE port)
- Midspan Mode-B Unsolicited Power(4,5+/7,8-)
- Additional terminal block power input port
- Per port Maximum current: 1.25A
- AC to DC power supply
Input: 100V~240VAC, 50Hz~60Hz. Output: 24VDC 5A - Power Consumption
2.0 watts(max with no PD device connected)
4 PoE ports Total Max. 72Watt - LAN data pin: RJ45 pin1pin2pin3pin4pin5pin6pin7pin8
- LAN Data In: Connects PC/Router/Switch
- PoE Power on RJ45
Power +: pin 4 & pin 5 ; Power -: pin 7 & pin 8
PoE PowerOutput: DC24V, Per PoE port Max 20W(24V1.25A) - Product Dimensions 100mm W x 45mm D x 30mm H
- Temperature
Operation Temperature:0 ~40℃ (32 ~104℉)
Storage Temperature: -40 ~70℃(-40 ~158℉) - Humidity
Storage Humidity 5%~90% non-condensing, Operating Humidity 10%~90% non-condensing

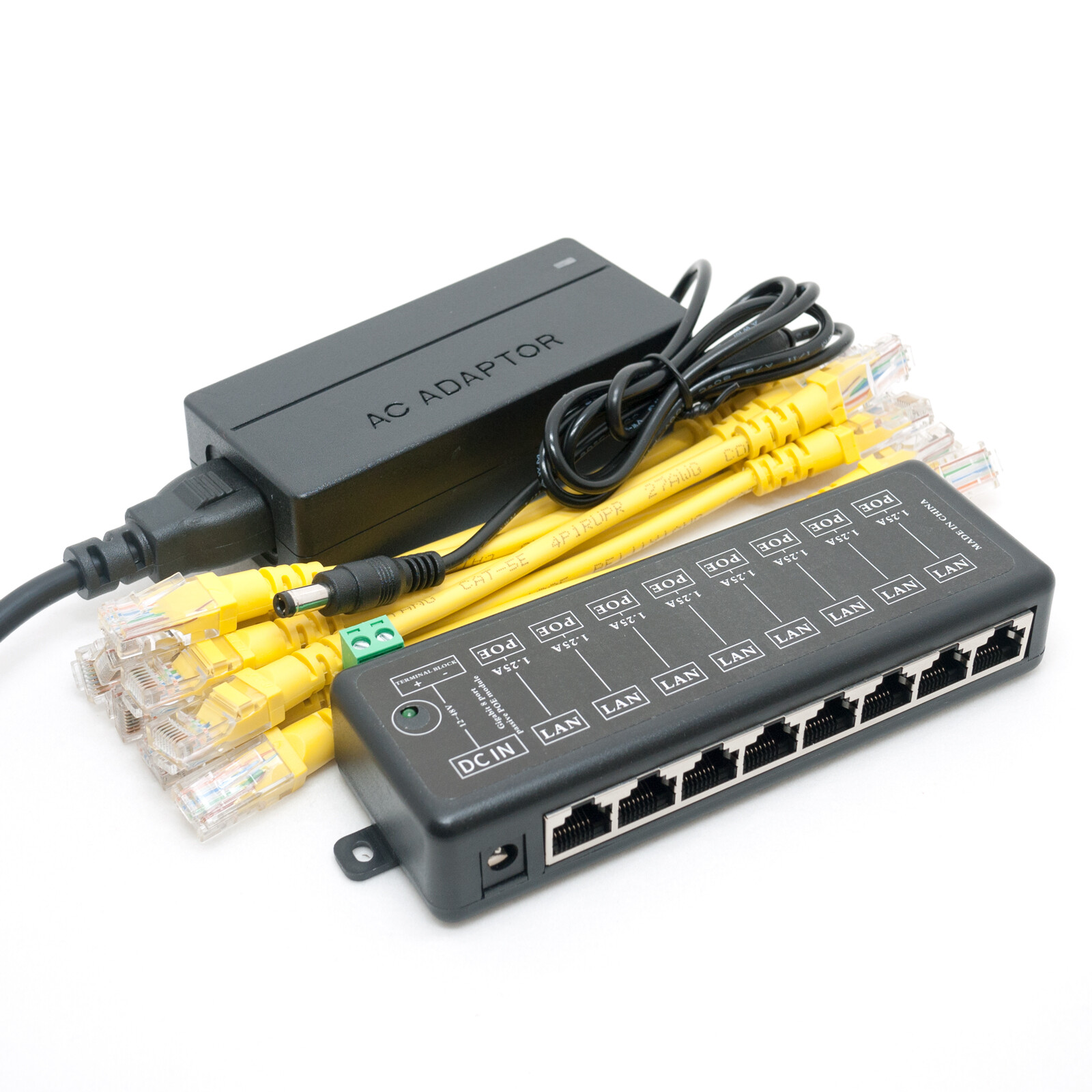

Item Included(Ethernetswitchnot included):
8Ports Gigabit Passive PoE injector x1
2pin power input port terminal block x1
AC Power Cable x1AC power plug is US, EU or AU type,if you need other type (UK),Please leave a message.
15cm568B CAT5E Ethernet RJ45 Patch Cable x8
