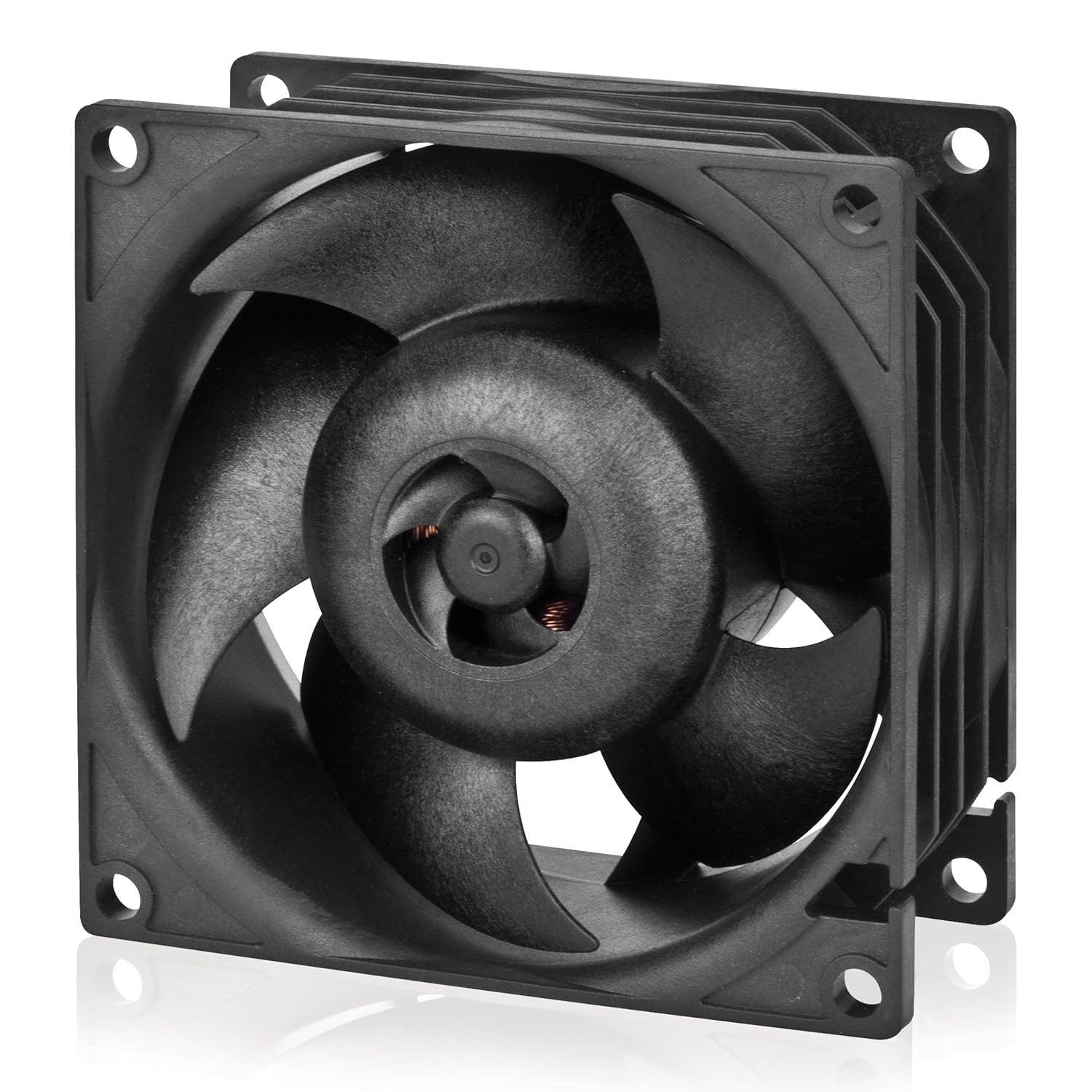

80mm x 80mm x 38mm Server Fan 500-10000 RPM PWM Polycarbonate 1 Count Cooling
- The impeller of the S8038-10K is held in place by two ball bearings, making it particularly durable and less sensitive to external influences such as heat and dust
- The S8038-10K has a wide speed range that can be regulated via PWM and voltage. With up to 10000 rpm, it provides an ideal balance between cooling performance and noise.
- With a static pressure of 51 mmH₂O and a maximum airflow of 173.30 m³/h, the S8038-10K is a true all-rounder and is suitable as both a radiator fan and a case fan.
- The S8038-10K fits into 2U server cases and serves as an upgrade or replacement for a CPU fan, radiator fan, or system ventilation
- The fan has a standard 4-pin connector and can also be connected and controlled on 2-pin and 3-pin headers, while the 30 cm cable allows flexibility in positioning.
Designed for Continuous Operation
The impeller of the S8038-10K is held in place by two ball bearings, making it not only particularly durable but also less sensitive to external influences such as heat and dust.
Full Control with a Wide Speed Range
The S8038-10K has a wide speed range that can be regulated via PWM and voltage, allowing it to be tuned to the specific system requirement. With a speed range from 500 rpm to 10000 rpm, it provides an ideal balance between cooling performance and noise, ensuring optimal performance in various scenarios.
High Airflow and Static Pressure
Heat sinks and radiators benefit from fans with high static pressure. The S8038-10K has a static pressure of 51 mmH₂O, which enables it to push air even through narrow cooling fins. At the same time, it achieves a maximum airflow of 173.30 m³/h, allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.
Flexible Connection Options
With its standard 4-pin fan connector, the S8038-10K can also be connected to 2-pin or 3-pin sockets and then be controlled by voltage. The 30 cm cable allows a lot of flexibility in positioning.
Active Cooling for Extended Motor Lifespan
The lifespan of fans is mostly determined by the lifespan of the motor, which is significantly dependent on the motor temperature, especially in long-term operation. The motor of the S8038-10K is actively cooled by an additional impeller in the fan hub. By maintaining lower motor temperatures, its lifespan is extended by up to 50%. This advance not only leads to improved operating efficiency but also to significant cost savings in the long run.
Wide Range of Applications
The S8038-10K fits into 2U server cases and serves as an upgrade or replacement for a CPU fan, radiator fan, or system ventilation. In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it assures performance in various hardware environments and ensures efficient cooling and minimal downtime.
Technical Specifications
Fan Speed: 500–10000 rpm Airflow: 102 cfm | 173.30 m³/h Speed Control: Pulse Width Modulation – PWM Static Pressure: 51 mmH₂O Fan Frame: Standard Connector: 2510 4-pin fan connector Fan Bearing: Dual ball bearing Operating Ambient Temperature: -10~70 °C Starting Voltage: 5.8 V Current | Voltage: 1.3 A | 12.0 V DC Cable Length: 300 mm Length: 80 mm Width: 80 mm Height: 38 mm Weight: 151 g
Product DetailsUPC840033402064Voltage12 voltsWattage15.6 wattsMaterialPolycarbonateUnit Count1 CountItem Weight151 gPart NumberACFAN00279AMaterial TypePolycarbonateCooling MethodAirNumber of Items1Number of Packs1Air Flow Capacity173.3 cfmCompatible DevicesServerProduct Dimensions3.15"L x 1.5"W x 3.15"HIncluded ComponentsS8038-10KPower Connector Type4-PinWarranty Description6 yearsMaximum Rotational Speed10000 rpmItem Dimensions L x W x H3.15"L x 1.5"W x 3.15"H
