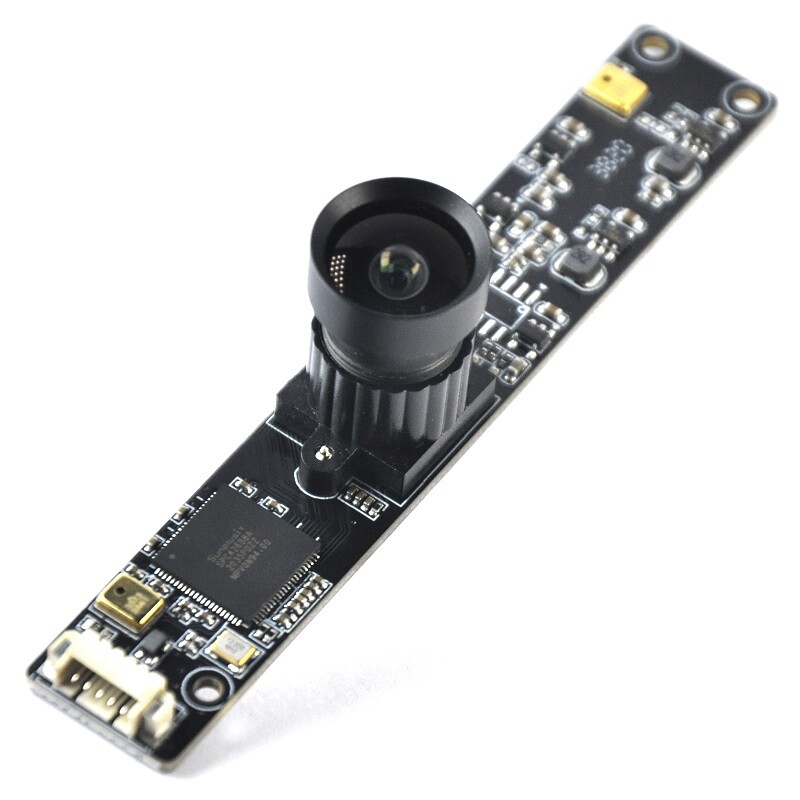

8MP Camera Module IMX317 Cmos Sensor Fixed Focus 4K UVC USB2.0 Camera Module For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Product Parameters:·Module Size: 90*15mm·Pixel Size: 1.62*1.62μm·Image Sensor:1/2.5-Inch IMX317·Max. Resolutions: 3840H*2160V·Frame Rate: 30fps·Output Format: MJPEG, YUY2·Field of View: 120°·Focus Mode: Fixed Focus·Shutter Mode: Electronic Rolling Shutter·Compatibility: UVC-compliant, Plug and Play·Connection Cable: Default 1.0 Meter USB Cable·Controllable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure·Supported OS:Windows, Android, Linux, Wince, Mac OSSupported Resolution and Frame Rate: Format Resolution Frame Rate (USB2.0) MJPEG 3840x2160(4K) 30FPS 2952X1944 30FPS 2548x1536 30FPS 1920 x 1080 (1080P) 30FPS 1280 x 720 (720P) 30FPS 640 x 480 (VGA) 30FPS YUY2 3840x2160(4K2K) 2FPS 2952X1944 30FPS 1920x1080 (1080P) 5FPS 1280 x 720 (720P) 10FPS 640X480 (VGA) 30FPS PIN Definition: Pin No. Signal Name Description 1 VCC 5V Power 2 DM USB2.0 Data- 3 DP USB2.0 Data+ 4 GND GND 5 GND GND Working Condition: Operating Voltage USB DC +5V Supply Operating Current 260mA Operating Temperature -20℃~ +70℃ Storage Temperature -20℃~ +85℃ Humidity 80 ~85% Package Include:1x USB Camera Module  |
| | |
