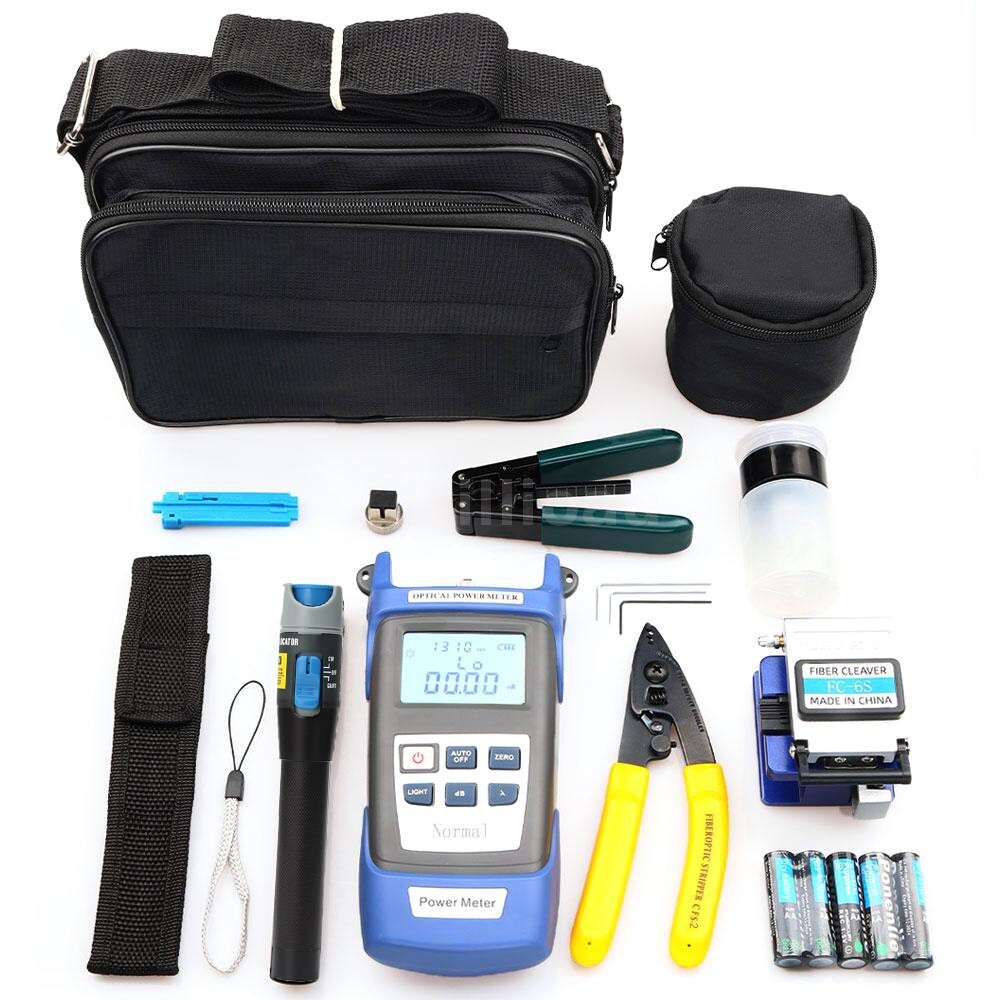

Fiber Optic FTTH Tool Kit with FC-6S Cleaver Optical Power Meter Visual US1.Self calibration
2.More than 48 hours continuous working time
3. Linear Display (mW) and Logarithmic display (dBm) show on the same screen
4.Support for FC/SC/ST interface and quick switch
5.Auto switch
6.Backlight availablePictures

Specifictions:
1.Test Range: -70~+3dbm
2.Probe Type: InGaAs
3.Wavelength Range: 800~1700nm
4.Standard Wavelength(nn): 850/980/1300/1310/1490/1550/1625
5.Display Resolution: Linear Display 0.1%; Logarithmic display 0.01dBm
6.Working Temp(℃): -10~+60℃/14℉-140℉
7.Storage Temp(℃): -25~+70℃/-13℉-158℉
8.Auto Switch-off Time(min): 18min
9.Battery working period: ≥48hrs
10.Size(mm): 162x75x27
11.Power: 3x AA batteries (batteries included)
12.Power:1mw

for FC 6S cutter Specification:
1.Applicable bare wire diameter: 125μm
2.Applicable fiber core number: single core (φ0.25 & 0.9mm) ~ 12 core ribbon core wire ~ 2.5 skin line
3.Fiber cutting length: 9-16mm (φ0.25), 10-16mm (0.9mm)
4.Size: 63 * 76 * 63mm

Visual Fault Locator Specification:
1. Output wavelength:650mm
2. Output light power: >1mW
3. Optical connector: universal connector
4.Operating temperature:0~+60℃/32℉-140℉
5. Storage temperature: -20~+70℃/-4℉-140℉
6. Power supply: 2 x AA batteries(batteries included)
7. Size: 175mm*26mm


Package include:
1 x Fiber Cleaver FC-6S
1 x Optical Power Meter -70 to +3dBm
1 x 1mw Visual Fault Locator
1 x Drop Cable Stripper
1 x Fixed-Length Stripper
1 x CFS-3 Fiber Optic Stripper
1 x Tool kit Carrying Bag
1 x 2 pc Allen adjustable tools1 x Alcohol bottle1 x Visual fault locator carrying bag1 x Optical power meter sc adapter1 x Fiber cleaver bag1 bag paper1 bag cottom swab5PC Batteries needed includedWarranty
