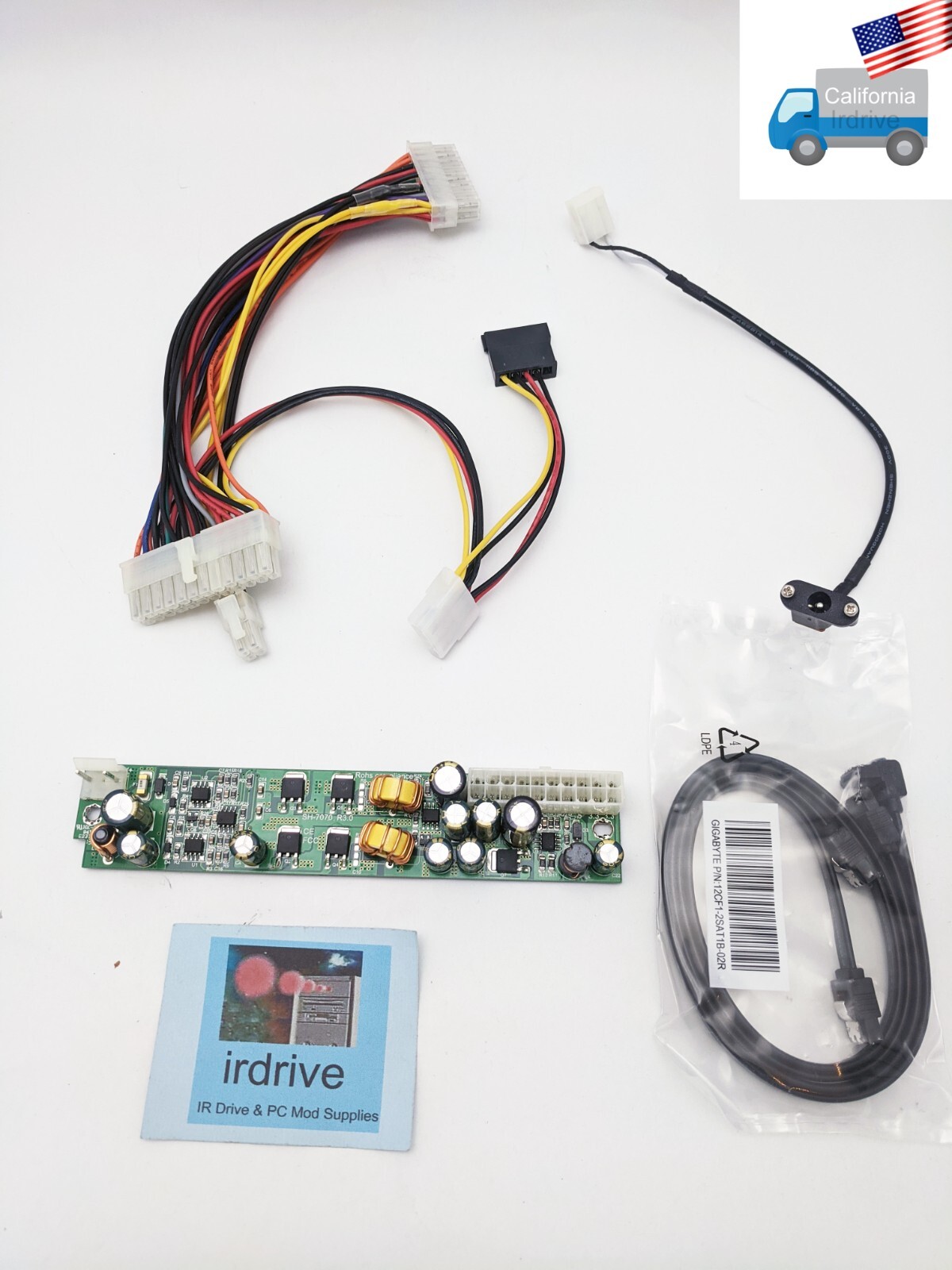

NEWHigh Quality True 90-Watt 12V DC to ATX Power Supply
RoHS / FCC / CE Compliant
Compatible with:HIGH POWER® AC to DC Power Adapter
DC-DC ATX converter was designed from ground up to fit small form factor ATX boards, allowing enclosure designers to save space while not compromising power requirements..Total Watts: 90W (Tested to work with Intel Intel Celeron J1900 Quad-Core, as well as other mini ITX CPU/motherboard combo)
Internal DC-to-DC fanless ATX Power Supply Specifications
• DC Input: 11.4~13.0V, Max 10A/12V
• Maximal Inrush current: 45A @12V at 25℃ cold start
• Output up to 90W (120W peak)
• Ripple and Noise: <120 mV
• Load Regulation: +/- 5%
• Efficiency: 80% minimum at full load
• Multi protection: OLP, OCP & SCP
• Operation Temperature: -10 to 50℃RoHS / FCC / CE Compliant Output Voltage
+5V
+3.3V
+12V
-12V
+5VSB
Rated Load
5.0A
6.0A
3.2A
0.1A
1.0A
Peak Load
10A
10A
5.0A
0.5A
1.5A
Power Connector Summary: 1 x 20/ 24 pin Dual-Use Main Power Connector
1 x P4 12V Power Connector
1 x Molex Peripheral Power Connector
1 x SATA Power Connector
Bonus 2pcs: New factory sealed SATA III 6Gb/s data cable.
All connectors havesafety locking latchon them so once it is attached, it is secured and won't fall off like many cheaper cables out there
Fit in HIGH POWER® Mini Compact PC Case
All you need to complete the power source is to add
this energy efficiency 60W HIGH POWER® UL-Safe AC AdapterStore Policy & About us
