Anycan CCPAM1011 VDSL2+ Point to Point 30a Bridge
High-speed Connectivity for Internet Access and IPTV Service
The CCPAM1011 is a single VDSL2 port modem equipped with four Ethernet ports by embedded 10/100Mbps Ethernet Switch. Compliant with ITU-T G.993.2 VDSL2 standard, the CCPAM1011 interoperates with major chipsets, and supports Profile 30a with line rate up to 100Mbps/100Mbps for various bandwidth-consuming applications, like video streaming or Video on Demand. Besides forwarding Ethernet packets between VDSL2 port and Ethernet ports, CCPAM1011 also provides Hardware IGMP snooping for IGMP v1/v2 to facilitate IPTV services without interfering with other to ITU-T G.993.2
The CCPAM1011 complies with the international standards and interoperates with other major/open chipsets. It supports different profiles (8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a); different band plans (997, 998, and proprietary) and different annex types (Annex A, Annex B and Annex C), by factory settings to fit into different requirements. Benefit from the latest chip design technology, CCPAM 1011 consumes less power (less than 2 watt per VDSL2 port) and has shorter training time to make device up and running.
Long Reach Ethernet (LRE): Back-to-back Applications
In addition to using one CCPAM1011 to connect to ISP/Telco's DSLAM for accessing Internet or video services, users can utilize a pair of CCPAM1010 for back-to-back applications. Theoretically the maximum length for Ethernet cable is within 100 meters. With two 1010 modems, users can have 100/100Mbps connectivity over a twisted-pair phone line up to 200 meters or longer. This capability can help users to bridge two distinct LAN segments in longer distance or to have surveillance service a little farther over existing twisted-pair phone cables.
Easy Installation
The CCPAM1011 is easy to use.
Simply connect the hardware interfaces without the need for complicated configuration efforts.
Features & Specifications
VDSL2 Compliance
Compliant with VDSL2 Standard, ITU-T G.993.2
VDSL2 Profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
Supports 997 and 998 Band Plans
Supports Annex A, Annex B and Annex C
Upstream/Downstream connection rates greater than 100/100Mbps
OLR (On Line Reconfiguration), UB0 Supported
Supports Ethernet 802.3ah
Network Protocols and Features
Transparent bridging
Ethernet over VDSL (EoVDSL) Bridging
IEEE 802.3/3u compliant
Hardware IGMP Snooping for IGMP v1/v2
Management
Simple management function via console port
Firmware upgradable (on demand)
Hardware Specifications
Physical Interface
VDSL: one RJ-11 connector
DIP Switch: DIP2 for configuring RT/COT mode
Ethernet: 10/100Mbps auto-crossover (MDI / MDI-X) Switch
Console:RS232, for management function
Power jack
Power switch
Physical Specifications
Dimensions: (200mm x 145mm x 34mm)
Power Requirements
Input: 12V DC, 1A
Operating Environment
Operating temperature: 0 - 40 °C
Storage temperature: -20 - 70 °C
Humidity: 20 - 95% non-condensing
Item SpecificsType DSLModel CCPAM1011Outputs Ethernet (RJ-45)UPC Does not applyBrand UnbrandedMPN Does not apply
PaymentAccessories: Include AC Adapter.
We will try to provide world wide AC adapter plug connecter for US, UK, EU & AU buyer. But not ensure for each item!
Shipping: Item location is HongKong, We will ship by HongKong Post by review the shipping fees and traffice condition. Shipping will be about 10-15 days to US CA AU with tracking munber.
Traffic to the Eastern Europe/Middle East/some EU country will be more than 20-30days.
We don't sell to some country because we can't control the post shipping time, if you don't accept the shipping time please don't buy the item.
If you want the item, but your country does not in our list, please give us a message.
The tracking number will show in 2-3days after shipping.
No shipping service on Saturday to Sunday.
Heavy item will ship with EMS\DHL\FedEx.
Customs duties not included !
Anycan CCPAM1011 VDSL2+ Point to Point 30a Birdge
High-speed Connectivity for Internet Access and IPTV Service
The CCPAM1002 is a single VDSL2 port modem equipped with two Ethernet ports by embedded 10/100Mbps Ethernet Switch. Compliant with ITU-T G.993.2 VDSL2 standard, the CCPAM1002 interoperates with major chipsets, and supports Profile 30a with line rate up to 100Mbps/100Mbps for various bandwidth-consuming applications, like video streaming or Video on Demand. Besides forwarding Ethernet packets between VDSL2 port and Ethernet ports, CCPAM1002 also provides Hardware IGMP snooping for IGMP v1/v2 to facilitate IPTV services without interfering with other to ITU-T G.993.2
The CCPAM1002 complies with the international standards and interoperates with other major/open chipsets. It supports different profiles (8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a); different band plans (997, 998, and proprietary) and different annex types (Annex A, Annex B and Annex C), by factory settings to fit into different requirements. Benefit from the latest chip design technology, CCPAM 1011 consumes less power (less than 2 watt per VDSL2 port) and has shorter training time to make device up and running.
Long Reach Ethernet (LRE): Back-to-back Applications
In addition to using one CCPAM1002 to connect to ISP/Telco's DSLAM for accessing Internet or video services, users can utilize a pair of CCPAM1002 for back-to-back applications. Theoretically the maximum length for Ethernet cable is within 100 meters. With two 1002 modems, users can have 100/100Mbps connectivity over a twisted-pair phone line up to 200 meters or longer. This capability can help users to bridge two distinct LAN segments in longer distance or to have surveillance service a little farther over existing twisted-pair phone cables.
Easy Installation
The CCPAM1002 is easy to use.
Simply connect the hardware interfaces without the need for complicated configuration efforts.
Features & Specifications
VDSL2 Compliance
Compliant with VDSL2 Standard, ITU-T G.993.2
VDSL2 Profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
Supports 997 and 998 Band Plans
Supports Annex A, Annex B and Annex C
Upstream/Downstream connection rates greater than 100/100Mbps
OLR (On Line Reconfiguration), UB0 Supported
Supports Ethernet 802.3ah
Network Protocols and Features
Transparent bridging
Ethernet over VDSL (EoVDSL) Bridging
IEEE 802.3/3u compliant
Hardware IGMP Snooping for IGMP v1/v2
Management
Simple management function via console port
Firmware upgradable (on demand)
Hardware Specifications
Physical Interface
VDSL: one RJ-11 connector
DIP Switch: DIP2 for configuring RT/COT mode
Ethernet: 10/100Mbps auto-crossover (MDI / MDI-X) Switch
Power jack
Power switch
Physical Specifications
Dimensions: (200mm x 145mm x 34mm)
Power Requirements
Input: 12V DC, 1A
Operating Environment
Operating temperature: 0 - 40 °C
Storage temperature: -20 - 70 °C
Humidity: 20 - 95% non-condensing
Limited stock,what are you waiting for??
Direct-Buy
Buy Now
Add to cart
Place offer

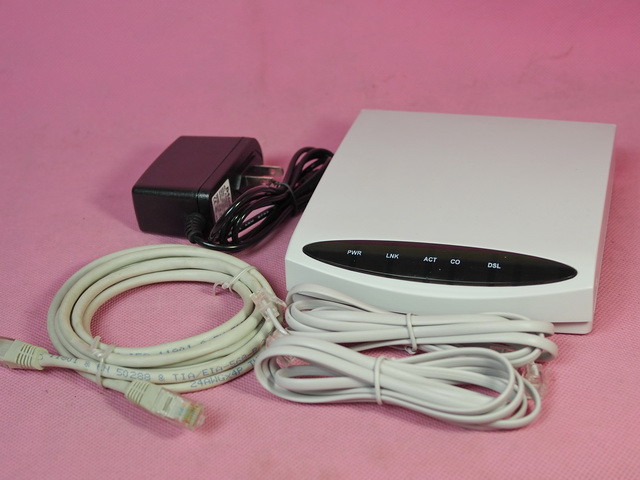

Accessories: Include AC Adapter,Phone Cable,Ethernet Cable.
