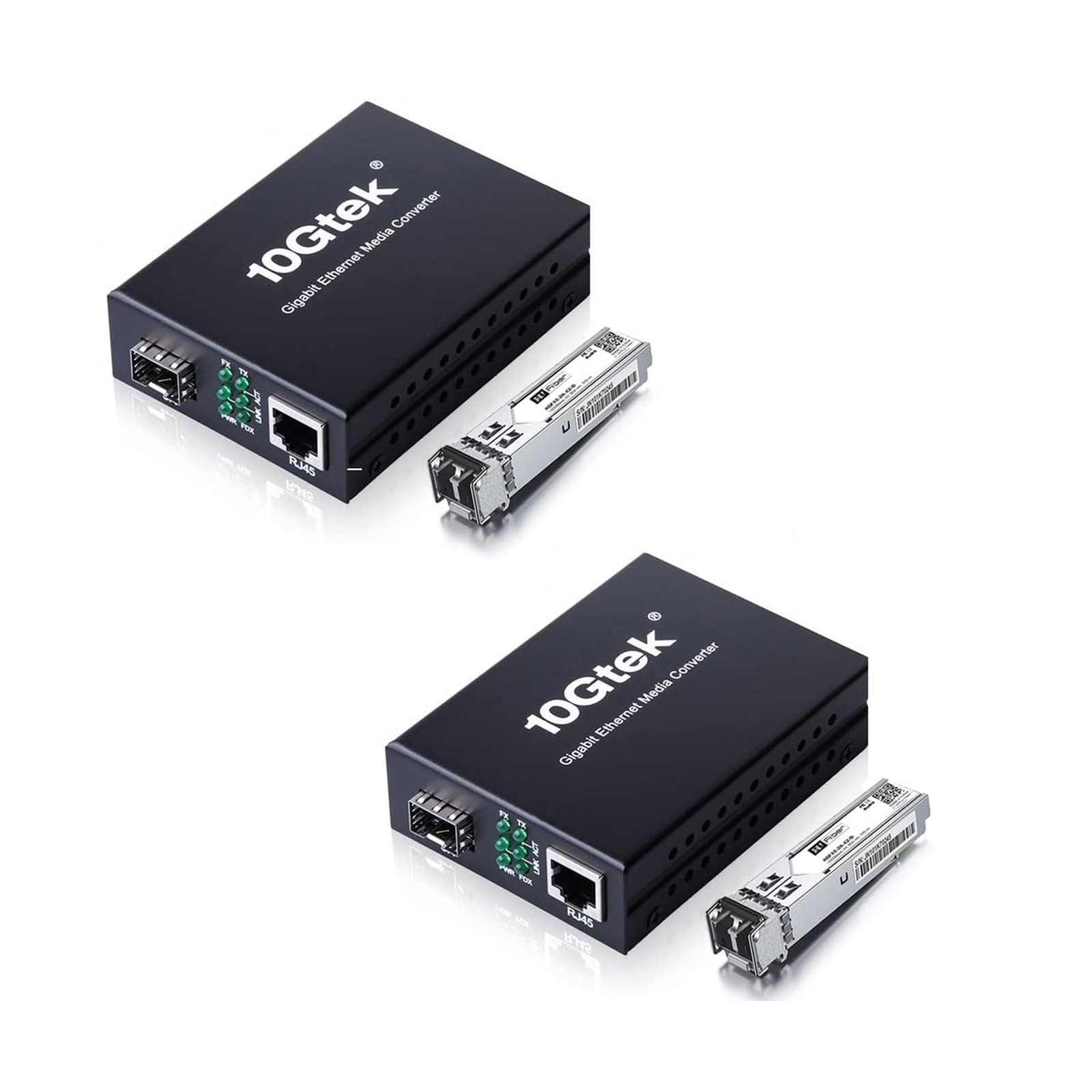

Brand New A Pair of Gigabit Multi-Mode LC Fiber Media Converter, with 2 Pcs SFP SX Modules, Fiber to Ethernet Converter, 1000Base-SX to 10/100/1000M RJ45, MMF, 850nm, up to 550m
Manufacturer model: AD-MPO-PC-Black (x2)-HI

• What You Get2x Gigabit SFP to RJ45 Media Converters, 2x Multi-Mode 1000Base-SX Modules, 2x external power supply, 1x Product Manual. Enjoy 30-day free-returned and 2-year warranty service.

• SFP Fiber Port1000Base-SX Multi-Mode Module Plug in SFP Fiber Port of media converter, link Multi-Mode Dual LC Fiber cable(OM1/OM2/OM3/OM4), 850nm wavelength, up to 550m.

• RJ45 PortProvide speed up to 1000Mbps stable Eternet connection, downward compatible with 10/100 Mbps. Supports Full Duplex or Half Duplex, Support MDI/MDI-X auto crossover, Supports jumbo frame size 9K byte.

• Visualizd LED Indicators Easy-to-view LED indicators provide status to monitor network activity easily. Support wide power supply voltage (100V-240V), operating voltage is 5VDC /1.0A;

• Plug and Play Just plug in SFP Optical port and RJ45 port, and will work immediately. Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x.

Description

HiFiber's A7S2 series Media Converter is use to expanding existing Gigabit Ethernet networks. The easy implementation and expansion of 1000Base-TX/FX networks can be further assured with this converter.
The converter is completely transparent when connected so the network performs exactly the way it did before - only now, it allows the co-existence of both copper and fiber mediums.

Main Features:
Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x
Auto negotiation function allows UTP port to auto select 10M, 100M or 1000M
Ethernet port supports MDI/MDI-X auto crossover
Extends distances up to 550M/ 20KM/ 40KM/ 60KM/ 80KM/ 100KM/ 120KM (multi mode fiber or single mode fiber)
Auto MDI/MDI-X support on RJ-45 port
Support Full Duplex and Half Duplex
Status LED's for TX,FX LINK/ACT, POWER,FDX to easily monitor network status
1Mbit RAM for data buffer
Supports jumbo frame size 9K bytes

Optical Port: 850nm Multimode
Connectors: LC Connector

Ethernet Port:
Connectors: RJ-45 Connector

LED Indicators:
FX, TX, Link/Act(Left/Right), FDX, PWR
FX: Light on when fiber speed is 1000Mbps, else light off
TX: Light on when TP speed is 1000Mbps, else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off

Specifications:
Output voltage: 5VDC 1.0A
Power dissipation: ≤3 watts
Housing: Metal enclosure
Dimensions: 93 x 71 x 27mm
Weight: 0.5kg
Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 70°C

Warranty:
2 years

•
