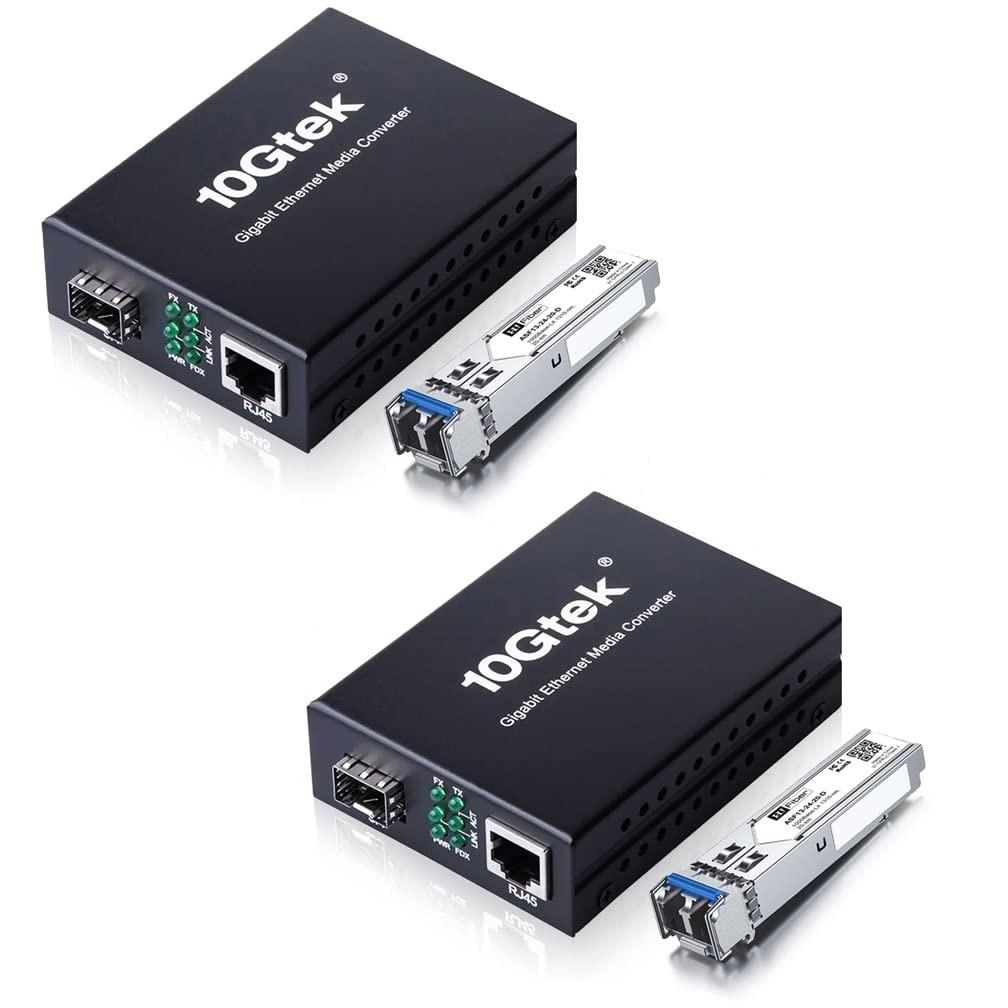

A Pair of Gigabit Single Mode LC Fiber Media Converter, with 2 Pcs SFP LX Modules, 1.25G/s Fiber to Ethernet Converter, 1000Base-LX to 10/100/1000base-TX, SFP to RJ45, SMF, 1310nm, up to 20km

ColorStandardItem ShapeRectangularRecommended Uses For ProductExtending the transmission range of Ethernet signals over fiberSpecification MetIEEEIndoor Outdoor UsageIndoorEU Spare Part Availability Duration3 yearsBrandH!Fiber.comConnector TypeKit #2: Sfp 20kmCable TypeEthernetCompatible DevicesCameraSpecial FeatureHigh SpeedAbout this item

• What You Get: 2x Gigabit SFP to RJ45 Media Converters, 2x Single-Mode 1000Base-LX Modules, 2x external power supply, 1x Product Manual. We provide 30 Days Free-returned, 3 Year Free Warranty and Lifetime Technology Support
• SFP Fiber Port: 1000Base-LX Single-Mode Module Plug in SFP Fiber Port of media converter, link Single-Mode Dual LC Fiber cable(OS1/OS2/OS3), 1310nm wavelength, up to 20km
• RJ45 Ethernet Port: Gigabit RJ45 Port provides 1000Mbps stable Ethernet connection, downward compatible with 10/100 Mbps; Fiber to Ethernet converter supports Full/ Half Duplex, MDI/MDI-X auto crossover, and 9K-byte jumbo frames
• Visualized LED Indicators: Easy-to-view LED indicators provide status to monitor network activity easily; Media Converter support wide power supply voltage (100V-240V), operating voltage is 5VDC /1.0A
• Easy to Use: Media Converter instantly use without any configuration, plug and play; Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x

• What You Get: 2x Gigabit SFP to RJ45 Media Converters, 2x Single-Mode 1000Base-LX Modules, 2x external power supply, 1x Product Manual. We provide 30 Days Free-returned, 3 Year Free Warranty and Lifetime Technology Support
• SFP Fiber Port: 1000Base-LX Single-Mode Module Plug in SFP Fiber Port of media converter, link Single-Mode Dual LC Fiber cable(OS1/OS2/OS3), 1310nm wavelength, up to 20km
• RJ45 Ethernet Port: Gigabit RJ45 Port provides 1000Mbps stable Ethernet connection, downward compatible with 10/100 Mbps; Fiber to Ethernet converter supports Full/ Half Duplex, MDI/MDI-X auto crossover, and 9K-byte jumbo frames
• Visualized LED Indicators: Easy-to-view LED indicators provide status to monitor network activity easily; Media Converter support wide power supply voltage (100V-240V), operating voltage is 5VDC /1.0A
• Easy to Use: Media Converter instantly use without any configuration, plug and play; Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x

HiFiber's A7S2 series Media Converter is use to expanding existing Gigabit Ethernet networks. The easy implementation and expansion of 1000Base-TX/FX networks can be further assured with this converter. The converter is completely transparent when connected so the network performs exactly the way it did before - only now, it allows the co-existence of both copper and fiber mediums. Main Features: Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x Auto negotiation function allows UTP port to auto select 10M, 100M or 1000M Ethernet port supports MDI/MDI-X auto crossover Extends distances up to 550M/ 20KM/ 40KM/ 60KM/ 80KM/ 100KM/ 120KM (multi mode fiber or single mode fiber) Auto MDI/MDI-X support on RJ-45 port Support Full Duplex and Half Duplex Status LED's for TX,FX LINK/ACT, POWER,FDX to easily monitor network status 1Mbit RAM for data buffer Supports jumbo frame size 9K bytes Optical Port: 1310nm Single Connectors: LC Connector Distances: up to 20km Ethernet Port: Connectors: RJ-45 Connector LED Indicators: FX, TX, Link/Act(Left/Right), FDX, PWR FX: Light on when fiber speed is 1000Mbps, else light off TX: Light on when TP speed is 1000Mbps, else light off Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active PWR: Light on when DC power on, else light off Specifications: Output voltage: 5VDC 1.0A Power dissipation: ≤3 watts Housing: Metal enclosure Dimensions: 93 x 71 x 27mm Weight: 0.5kg Operating Temperature: 0°C to 60°C Storage Temperature: -20°C to 70°C Warranty: 2 years"
