Product description
About this project
Designed specifically for AMD socket AM4 CPU motherboards.
Made of steel and plastic, it has good heat dissipation, prevents deformation and has a long service life.
Good heat dissipation ensures the normal operation of the CPU.
There is a small hole on the pin corresponding to the mainboard, which is firm and practical. The installation hole spacing is 90x54mm.
Mounting Hole Spacing: 90x54mm/3.54x2.13Inch
Applicable Main Board Chipset: AMD AM4 B350X370 A320X470
Product description
Material: steel, plastic and thin film insulating layer.
Mounting Hole Spacing: 90x54mm/3.54x2.13Inch
Applicable Main Board Chipset: AMD AM4 B350X370 A320X470
Color: Black,White
Package Includes:1PC AM4 Backplane
Feature

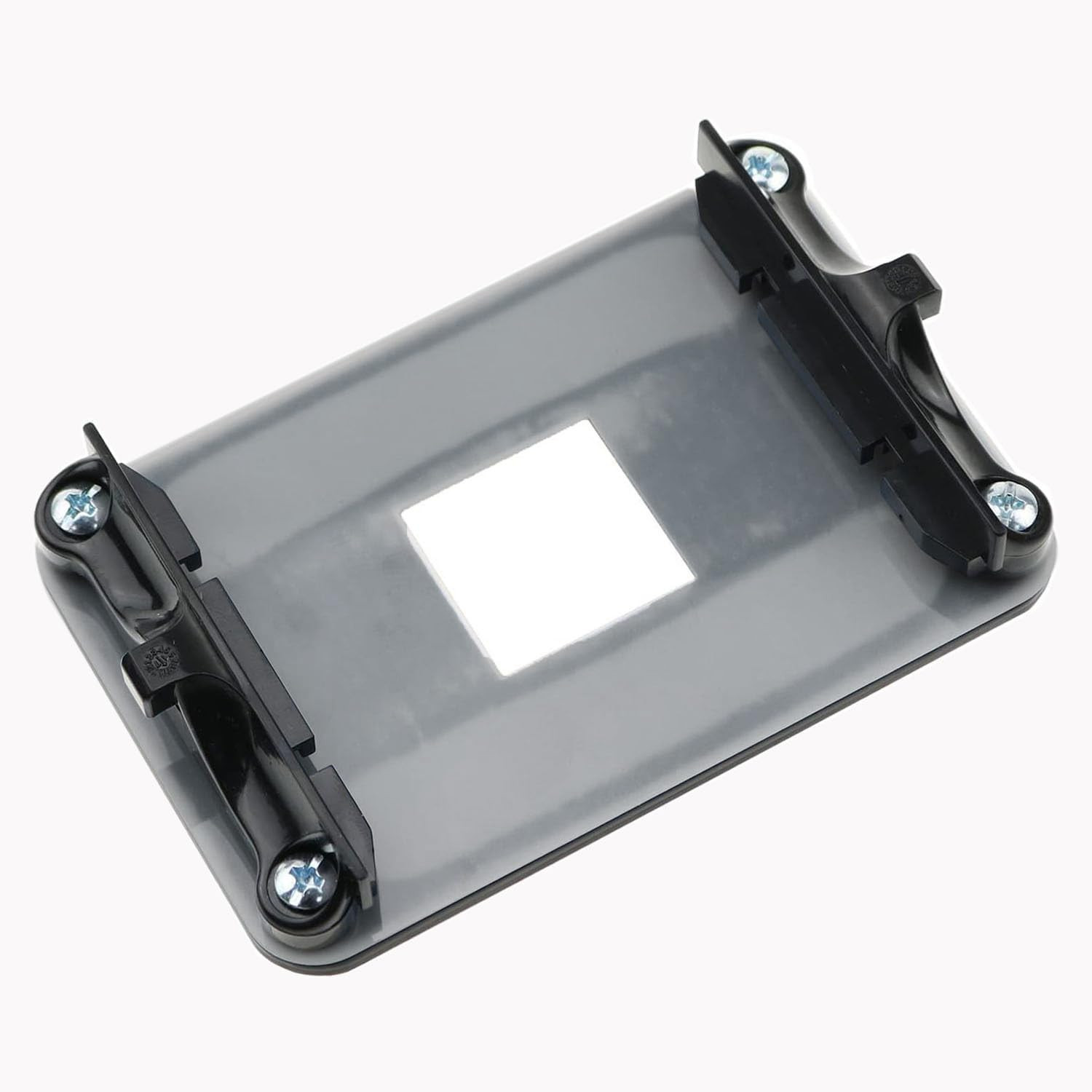

This CPU Fan mounting bracket is designed to replace hardware heatsink mounting hardware for your motherboard.
Fit for AMD Socket AM4 CPU's motherboards.
Use this CPU fan bracket case cooling better.
Just CPU fan bracket base, CPU fan not included here.
The fixed clamp on the top of the motherboard is a plastic clamp (to prevent accidental short circuits).
Above the base plate is a plastic film insulating layer to prevent the metal from coming into direct contact with the main board.
Under the base plate is a stainless steel metal plate, which is more stable and durable.
Including:One AM4 metal bracketTwo plastic clipsFour screws
Installation schematic diagram
The screw is installed downward.
The upper part of the claspInstall it above the motherboard
The mainboard is in the middle.
The lower half of the bracketIt is installed below the motherboard
- ✅ Designed specifically for AMD Socket AM4 CPU's motherboards.
- ✅Made of copper and plastic, good heat dissipation, prevents deformation, and a long service life.
- ✅ Good heat dissipation to ensure the CPU works properly.
- ✅ There is a small hole corresponding to the motherboard on the pin, which is firm and practical. The installation hole distance is 90x54mm.
- ✅ Color: Black,White.Package Includes:1PC AM4 Backplane.
