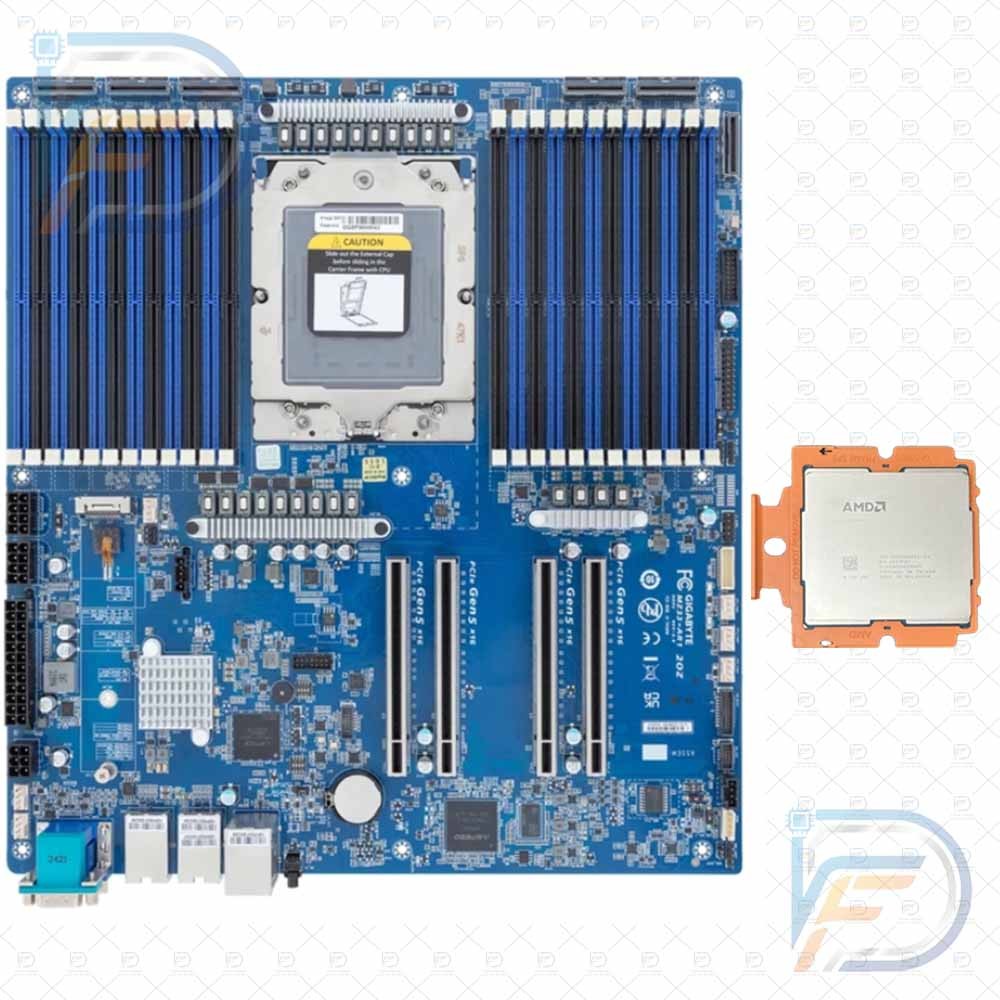

📋Product ListGigabyte MZ33-AR1 * 1
AMD EPYC 9334 QS *1⚙️Product Specifications
AMD EPYC 9334 QS：
AttributeValueModelAMD EPYC 9334QS（100-000000897-03）SeriesEPYC 9004 SeriesArchitectureZen 4Core Count32 coresThread Count64 threadsBase Clock Speed2.55 GHzBoost Clock Speed3.5 GHzSupported Memory TypeDDR5Memory Channels12 channels
Gigabyte Factor (WxD, mm)E-ATX (304.8 × 330.2 mm)CPU Support- AMD EPYC™ 9005 Series Processors- AMD EPYC™ 9004 Series ProcessorsSingle Processor, cTDP up to 500WSocket1 × LGA 6096 (Socket SP5)ChipsetSystem on Chip (SoC)Memory- 24 × DIMM Slots- DDR5 RDIMM Support- 12-Channel Memory per ProcessorEPYC 9005:• Up to 5200 MT/s (1DPC)• Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)EPYC 9004:• Up to 4800 MT/s (1DPC)• Up to 3600 MT/s (2DPC)LAN- 2 × 10Gb/s LAN (Broadcom® BCM57416), supports NCSI- 1 × 10/100/1000 Mbps Management LANVideoASPEED® AST2600, 1 × VGA portAudioN/AStorage InterfaceMCIO:• 2 × MCIO 8i → 4 × Gen5 NVMe or 16 × SATA• 3 × MCIO 8i → 6 × Gen5 NVMe• 1 × MCIO 8i → 2 × Gen4 NVMeM.2:• 1 × M.2 2280/22110, PCIe Gen4 x4RAIDN/APCIe Expansion Slots- Slot 7: PCIe Gen5 x16- Slot 6: PCIe Gen5 x16- Slot 4: PCIe Gen5 x16- Slot 3: PCIe Gen5 x16Additional MCIO PCIe Links:• 2 × MCIO 8i (Gen5 x8 or SATA) [1][2]• 3 × MCIO 8i (Gen5 x8) [1]• 1 × MCIO 8i (Gen4 x8)Notes[1] Use qualified cables to ensure Gen5 signal quality.[2] Connector defaults to SATA; BIOS settings required to enable other modes.Internal I/O- 1 × 24-pin ATX main power- 2 × 8-pin ATX 12V- 1 × 6-pin ATX 12V- 1 × CPU fan header- 5 × System fan headers- 1 × USB 3.2 Gen1 (x2) header- 1 × USB 2.0 header- 1 × M.2 slot- 6 × MCIO 8i connectors- 1 × Front panel header- 1 × Backplane board header- 1 × PMBus connector- 1 × IPMB connector- 1 × TPM headerRear I/O- 2 × USB 3.2 Gen1 (Type-A)- 1 × VGA port- 1 × Serial port- 2 × RJ45 LAN ports- 1 × MLAN port- 1 × ID button with LEDSecurity Modules- 1 × TPM header (SPI interface)- Optional TPM 2.0 kit: CTM012Board ManagementASPEED® AST2600 BMCGIGABYTE Management Console:- Dashboard- HTML5 KVM- Sensor Monitor- Sensor History Log- FRU Information- SEL Log- Hardware Inventory- Fan Profiles- System Firewall- Power Control / Power Capping- LDAP / AD / RADIUS Support- Backup & Restore- Remote BIOS/BMC/CPLD Update- Event Log Filtering- User Management- Media Redirection- PAM Order Settings- SSL / SMTP SettingsPSU Connectors- 1 × 24-pin ATX main power- 2 × 8-pin ATX 12V- 1 × 6-pin ATX 12VOperating Properties- Operating Temperature: 10°C to 40°C- Operating Humidity: 8%–80% (non-condensing)- Storage Temperature: −40°C to 60°C- Storage Humidity: 20%–95% Us💳We accept payments supported by . All major credit cards are accepted.
