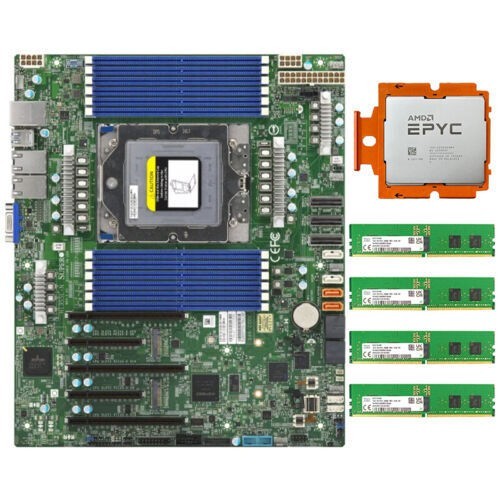

AMD EPYC Genoa 9334 QS CPU W/ Supermicro H13SSL-N Motherboard&64GB (16GB *4) RAM
Package include: 1XSupermicro H13SSL-N MB 1xAMD Genoa EPYC 9334 QS 4xSK hynix 16GB 1RX8 PC5-4800B-RD0-1010-NT（Total 64G） RAM SK hynix server memory module 16G 4800 RDIMM HMCG78MEBRA113N DDR5 capacity 16G frequency 4800Mbps CPU AMD Genoa EPYC 9334 QS 2.7- 3.9 GHz 32cores 64thr CPU processor Motherboard Product SKUsMBD-H13SSL-NPhysical StatsForm Factor Dimension - 12" x 10.1" (30.48cm x 25.65cm)
ProcessorCPU - AMD EPYC™ 9004 series Processors
- Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core System MemoryMemory Capacity - 12 DIMM slots
- Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type - 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes - 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board DevicesChipset Network Controllers - Dual LAN with Broadcom BCM5720 1GBase-T
Input / OutputSATA LAN - 1 RJ45 Dedicated IPMI LAN port
USB - 6 USB 3.0 port(s) (4 USB; 2 via header)
Video Output Serial Port TPM Others - 1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
- 2 MCIO (PCIe 5.0 x8) Port(s)
Expansion SlotsPCIe - 3 PCIe 5.0 x16 (in x16 slot),
- 2 PCIe 5.0 x8
M.2 - M.2 Interface: 2 SATA/PCIe 4.0 x4
- Form Factor: 2280/22110
- Key: M-Key
System BIOSBIOS Type - AMI 32MB SPI Flash EEPROM
BIOS Features - ACPI 6.4
- SMBIOS 3.5 or later
- UEFI 2.8
- Plug and Play (PnP)
- USB Keyboard support
ManagementSoftware - SuperDoctor® 5, SPM, SUM, SSM, Watchdog, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, IPMI 2.0, KVM with dedicated LAN
PC Health MonitoringVoltage - VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED - UID/Remote UID
- BMC/IPMI Heartbeat LED
Other Features FAN - 6x 4-pin fan headers (up to 6 fans)
Operating EnvironmentOperating Temperature Range - 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range - -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range - 8% - 90% (non-condensing)
Non Operating Relative Humidity Range - 5% - 95% US
We have all models included, due to the price and stock varies a lot, if you need other models, you can contact us， we will give you a quote, our product price is very low and you can order in large quantities. We are looking forward to a perfect style="text-wrap: wrap; text-align: left;">We will ship 98% of items within 5 working day upon receipt of payment, our goal is: to ship them as fast as we can. 1. All orders are shipped from China 2. Make sure your address is correct, we ship to 's address only. 4. Item will be shipped within 5 day after full payment is received(NOT counting holidays or weekends) 5. Orders are shipped Monday through Friday, excluding US federal holidays. No orders are shipped on weekends 6. All parcels will provide a tracking number for your tracking. 9.Import duties and taxes are not included in the item price or shipping charges. These charges are the buyer's responsibility.
If the product is faulty, please contact us via mail and we will provide a good solution for you.
