AMD Radeon HD 8490 C553 VideoGraphics Card PCie DVi & Displayport.

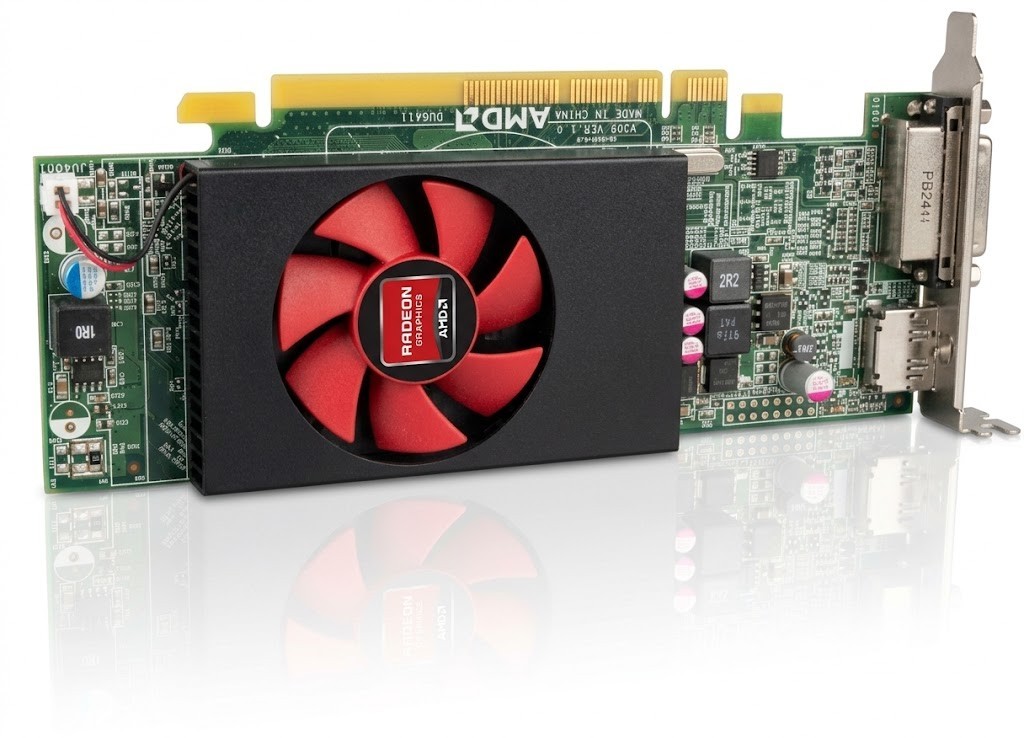

The graphics card shown is an AMD Radeon HD 8490 (Model / Board ID: C553). It is a low-profile, entry-level OEM expansion card designed primarily for multi-monitor office setups, general desktop display output, and workstation replacements.

Key Specifications

• GPU Architecture: TeraScale 2 (Caicos XTX chip, 40 nm process)

• GPU Clock Speed: 875 MHz

• Memory: 1 GB DDR3

• Memory Interface: 64-bit (14.4 GB/s bandwidth)

• Bus Interface: PCI Express 2.0 x16

• Power Draw (TDP): 35W (draws power directly from the PCIe slot; no external PCIe power connectors required)

Display Outputs & Features

• Outputs: 1x DisplayPort (1.1) and 1x DVI-I

• Form Factor: Low-profile / Single-slot design

• API Support: DirectX 11.2, OpenGL 4.4, OpenCL 1.2
