FEATURES
Guaranteed 750W of Continuous Power from Antec
100% Modular－Improves airflow and reduces clutter
80 PLUS® GOLD certified－Up to 92% efficient, to reduce yourelectricity bill
PhaseWave™ Design－A server-class full-bridge LLC designwith a synchronous rectification based on a DC-DC topology
Antec Quality 10-year warranty and lifetime global 24/7support
120mm FDB Silence－Whisper-quiet high-quality fluid-dynamicbearing fan with long lifetime
Zero RPM Manager－An advanced low voltage fan controlwith fan-off mode at low loads for absolute silence
99%+12V - Output for maximum CPU & GPU support
100% Japanese capacitors achieve unprecedented tight voltageregulation & low ripple & noise to maximize your system’s performance
28(18+10) pin MBU socket - For possible future MBUconnectors
ATX12V 2.4－Engineered according to the newest PSU guideline andcompatible with the latest CPU generation
Compact size 140mm depth power supply is the best choice forcompact ATX chassis
SPECIFICATIONS

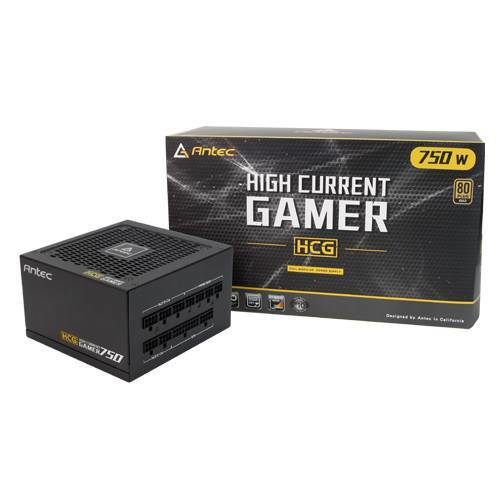

Model HCG750 Gold
Type ATX 12V 2.4
Modular FullyModular
Dimension (W x L x H) 140(L)*150(W)*86(H)mm
Warranty 10years
Input Voltage 100-240VAC ±10%
Input Current 10A-5A
Input Frequency Range 50Hz-60Hz
PFC Active PFC(>0.9 typical)
Power Good Signal 100-500ms
Efficiency 92%Typically
Protection OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
Output Capacity 750W
Operation Temperature 0~40°C
Regulatory cTUVus/TUV/CB[IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC
Fan 120mm FDBFan
Certifications 80Plus Gold
Connector 1 xMB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
4 x 8(6+2) Pin PCI-E
8 x SATA
3 x Molex
1 x FDD
Net Weight 2.11Kg
Gross Weight 3.42Kg
