APC AP7998B Switched PDU Power Distribution Unit 0U 35A 208V 21xC13 3xC19 For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

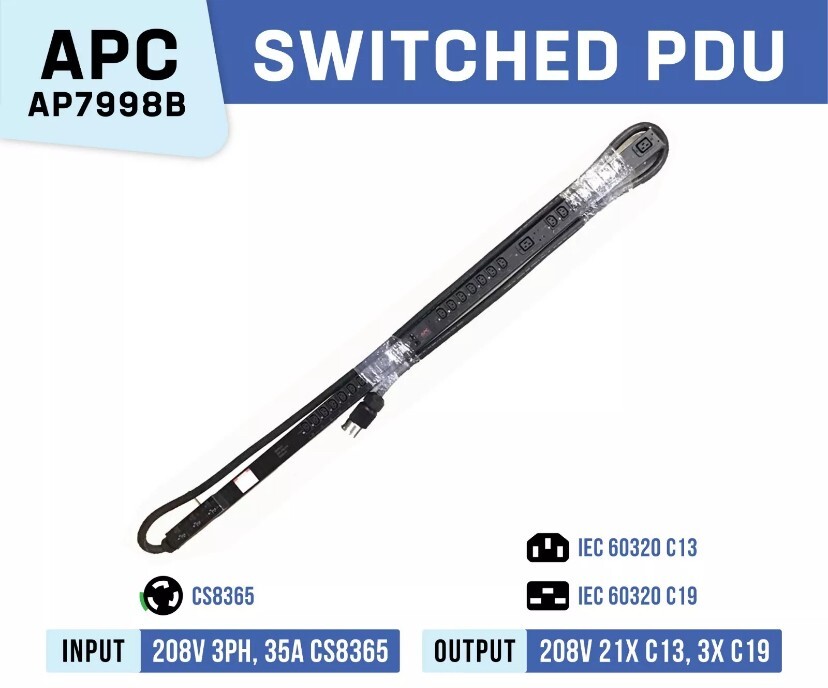

APC AP7998B Switched PDU Power Distribution Unit 0U 35A 208V 21xC13 3xC19
Toolless Mounting Capabilities- Units do not require additional tools to mount into APC NetShelter VX, which allows the users to quickly and easily mount units in the rear of the enclosure.
Local and web-based monitoring- Status available to customers both in the data center and remotely
Vertical Mounting Capabilities- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter VX enclosures.
Resettable circuit breakers- Enables a quick recovery from overload events.
Remote Current Monitoring
Redundant Internal Power Supplies
Power Sequencing
High Power Density
APC AP7998B in. (1778 mm.)Width2.20 in. (56 mm.)Depth3.50 in. (89 mm.)Weight21.28 lbs. (9.67 kg.)ColorBlackEnvironmentalOperating Environment23 - 113 °F (-5 - 45 °C)Operating Relative Humidity5%Operating Elevation0-10000 feet (0-3000 meters)Storage Temperature-13 - 149 °F (-25 - 65 °C)Storage Relative Humidity5%Storage Elevation0-50000 feet (0-15000 meters)OutputNominal Output Voltage208VMaximum Total Current Draw per Phase35AOutput Connections(21) IEC 320 C13 (3) IEC 320 C19Overload ProtectionYesInputNominal Input Voltage208V 3PHInput Frequency50/60 HzInput ConnectionsCS8365Cord Length10 feet (3.05 meters)Number of Power Cords1Maximum Line Current per phase35AMaximum Input Current per phase35ALoad Capacity12.5 kVAConformanceRegulatory ApprovalscUL Listed,CSA,FCC Part 15 Class A,ICES-003,Industry Canada,UL 60950,UL ListedEnvironmental ComplianceRoHS 7b Exemption The AP7998B was formerly designated the AP7998.
