APC AP8841 Rack Power Distribution Unit , Input: 200/240V, 50/60Hz, 24A. Output: 200/240V, 16A Per Bank, 24A Total.

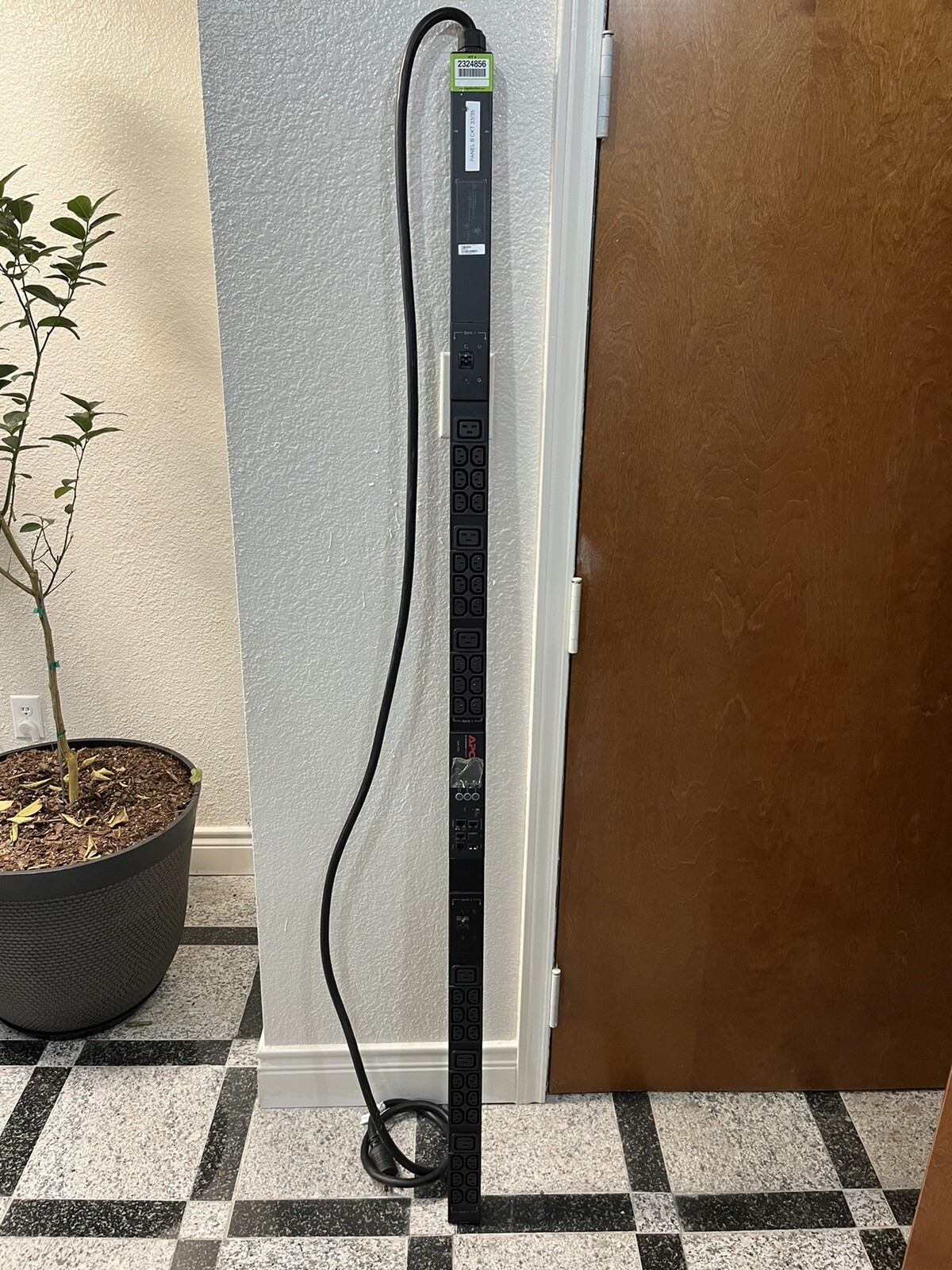

Unit is in excellent working condition. Please note that this unit does require a new plug (less than $20), because a prong is missing. Please see photographs. We provided one photograph of what it is supposed to look like versus the missing prong on this one.OverviewPresentationunAPC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (36) IEC 60320 C13 and (6) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra-low profile. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable.
MainMain Input Voltage200 V
208 VMain Output Voltage200 V
208 Vplug standardNEMA L6-30Pnumber of rack unit0Ucable length9.84 ft (3.00 m)number of cables1PhysicalColorBlackHeight70.51 in (179.1 cm)Width2.20 in (5.6 cm)Depth1.73 in (4.4 cm)Net Weight15.08 lb(US) (6.84 kg)Mounting LocationSidemounting preferenceNo preferenceMounting ModeRack-mountedUSB compatibleNoInputLine Rated Current24 AAcceptable Input Voltage200…240 Vinput current limits30 ALoad Capacity4992 VAInput Frequency50/60 HzOutputnumber of power socket outlets36 IEC 60320 C13
6 IEC 60320 C19ConformanceProduct CertificationsMETI Denan
PSE
VDEstandardsCSA C22.2 No. 60950
IEC 60950
UL 60950-1EnvironmentalAmbient Air Temperature for Operation23…140 °F (-5…60 °C)Relative Humidity5…95 %operating altitude0...10000 ftAmbient Air Temperature for Storage-13…149 °F (-25…65 °C)Storage Relative Humidity5…95 %storage altitude0…50000 ft (0.00…15240.00 m)
