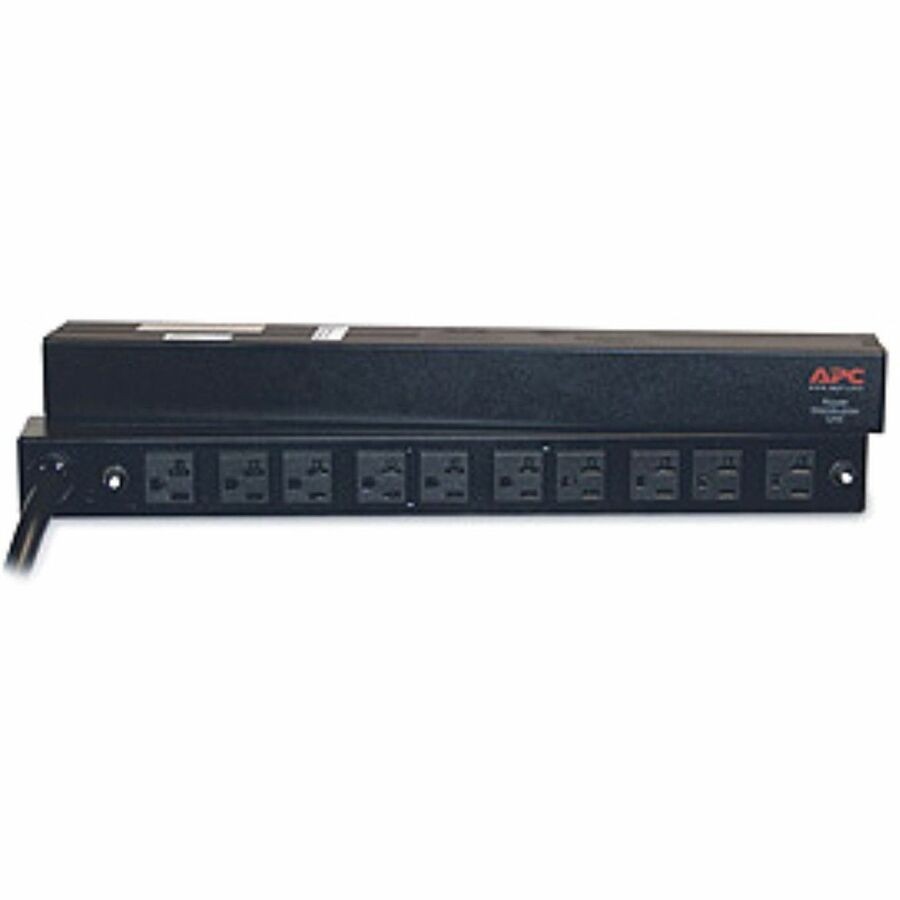

APC Basic Rack 2.88kVA PDU AP9560 Brand: APC UPC: 0731304192930 Mfr Part #: AP9560
General Information It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 120V. The PDU features 10 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L5-30P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.
?
Technical Information PDU Type: Basic Plug/Connector Type: NEMA L5-30P Receptacle Type: NEMA 5-20R Receptacle Detail: 10 x NEMA 5-20R Protection Type: Overload Protection Number of Protected Output Receptacles: 10
?
Power Description Input Voltage: 100 V Input Voltage: 120 V Input Voltage Range: 120 V AC - 132 V AC Output Voltage: 120 V AC Power Rating (VA): 2880 VA Circuit Breaker: Yes
?
Physical Characteristics Color Family: Black Product Color: Black Mounting Orientation: Horizontal Mounting Preference: No Preference Mount Type: Rack-mountable Placement: Rear Placement: Front Rack Height: 1U Cord Length: 11.98 ft Height: 1.7" Width: 17.6" Depth: 2.2" Weight (Approximate): 5.51 lb
Basic Rack 2.88kVA PDU Rack mounting brackets User manual Additional Information:
- Always on Outlets: 10
- Maximum Line Current per phase: 24 A
Certifications & Standards: cUL Listed|UL Listed Product Take Back Program: No Country of Origin: India Environmentally Friendly: Yes Environmental Compliance: Restriction of Hazardous Substances (RoHS) Single-use Plastic (SUP) Free Shipping Packaging: No Reach Compliance Date: 12/10/2025 Halogen Content Performance: Product contains halogen above thresholds Sustainable Packaging: No Packaging Contains Recycled Cardboard: Yes
?
Warranty Limited Warranty: 2 Year Parts Warranty/Labor: 2 Year Store Policies
