Manufacturer: APC

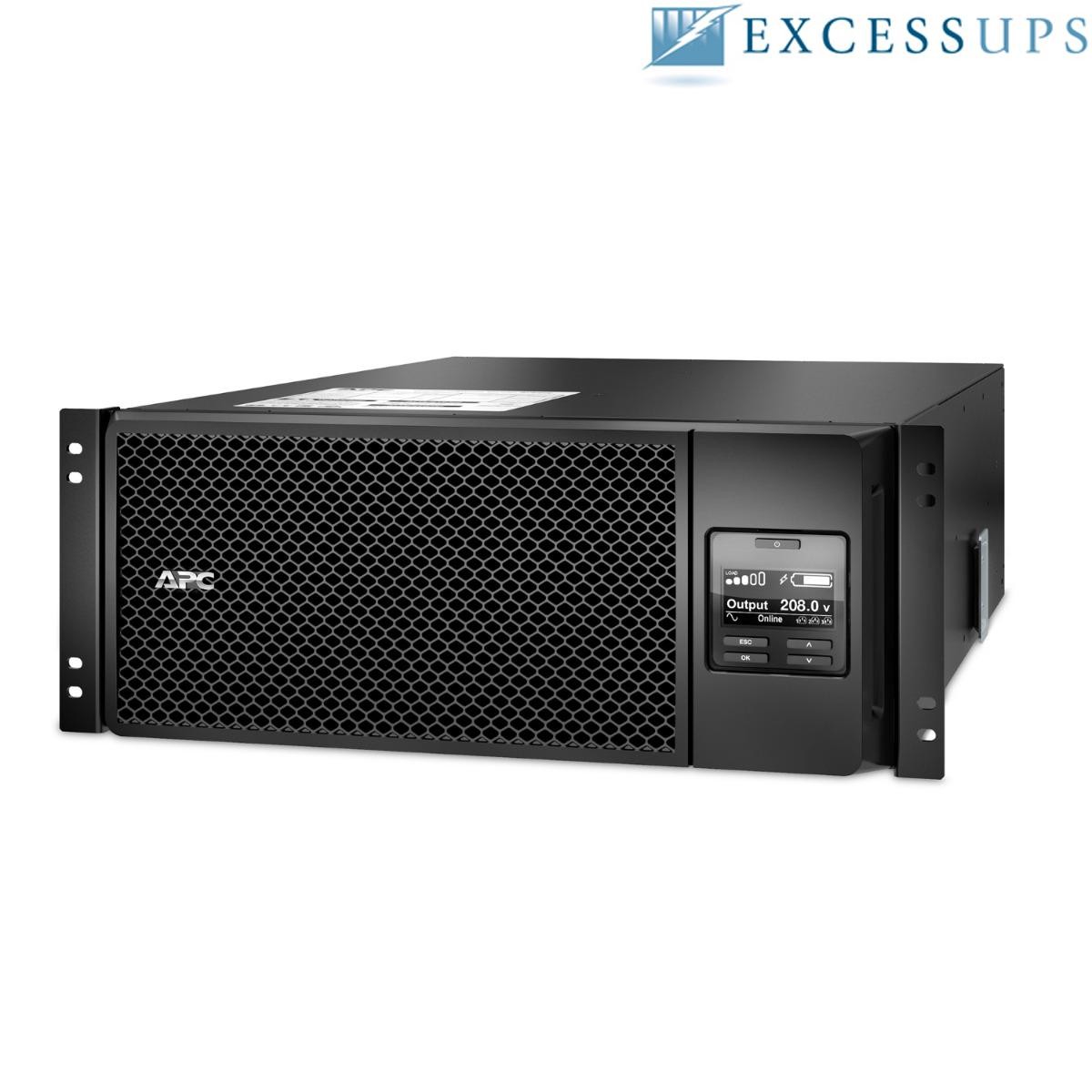

Model: APC Smart-UPS SRT 6000VA 208V RM 4U, 208V
Condition: New batteries, refurbished UPS
Part Number: SRT6KRMXLT
Maximum output: 6kW / 6kVA
Typical backup time at half load: 8.3 minutes (3000 Watts)
Typical backup time at full load: 2.3 minutes (6000 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SRT 6kVA 6kW SRT6KRMXLT - User Manual
SRT6KRMXLT - APC Smart-UPSRT Specifications:Main:
Main Input Voltage
208V
Other Input Voltage
240V
Main Output Voltage
208V
Other Output Voltage
240V
Rated Power in W
6kW
Rated Power in VA
6kVA
Output Connection Type
(2) NEMA L6-20R
(3) NEMA L6-30R
Output Connector Type
Hard Wire 3-wire (2PH + G) 1
Number of Rack Unit
4U
Battery Type
Lead-Acid Battery
Batteries & Runtime:
Included Battery Modules
1.5 h
RBC Quantity
2
Battery Voltage
+/-192 V (split battery referenced to neutral)
Battery Charge Power (Watts)
1191 W rated
Battery Power in VAH
1799 VAh runtime
Battery Life
3 - 5 year(s)
Replacement Battery
APCRBC140
Battery Run style="line-height: 150%;">Product Web Sub-Family
High density
Number of Power Module Free Slots
0
Number of Power Module Filled Slots
0
Redundant
No
Physical:
Color
Black
Height
6.85 in (17.4 cm)
Width
17.01 in (43.2 cm)
Depth
28.31 in (71.9 cm)
Net Weight
134.99 lb(US) (61.23 kg)
Mounting Location
Front
Mounting Preference
Lower
Mounting Mode
Rack-mounted
Two Post Mountable
0
USB Compatible
Yes
Mounting Position
Horizontal
Input:
Efficiency at Full Load
100 - 275 V adjustable (half load)
Input Frequency
40 - 70 Hz auto-sensing
Number of Input Connectors
1 Hard Wire 3-wire (2PH + G)
Output:
Max Configurable Power (Watts)
6kW
Harmonic Distortion
Less than 2%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz sync to mains
Crest factor
3 : 1
Topology
Double Conversion Online
Waveform Type
Sine wave
Bypass Type
Internal Bypass (Automatic and Manual)
Maximum configurable power in VA
6kVA
Conformance:
Product Certifications
ENERGY STAR V2.0 (USA)
FCC part 15 class A
NOM
UL 1778
Environmental:
Ambient Air Temperature for Operation
32 - 104 °F (0 - 40 °C)
Relative Humidity
0 - 95 % non-condensing
Operating Altitude
0 - 10000 ft
Ambient Air Temperature for Storage
5 - 113°F (-15 - 45°C)
Storage Relative Humidity
0 - 95% non-condensing
Storage Altitude
0 - 50000 ft (0.00 - 15240.00 m)
Acoustic Level
55 dBA
Heat Dissipation
1402 Btu/h
IP degree of protection
IP20
Communications & Management:
Free Slots
Emergency Power Off (EPO)
Yes
Surge Protection and Filtering:
Surge Energy Rating
480 J
