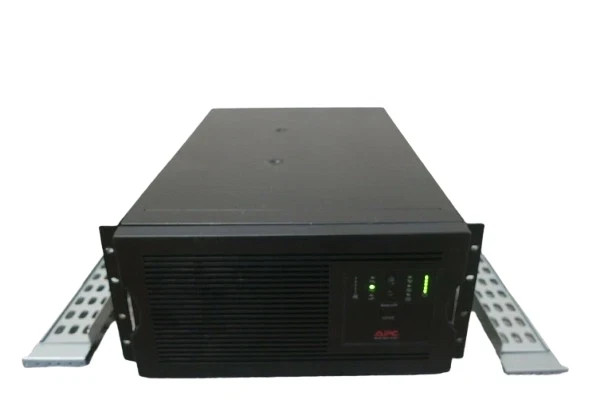

2 Year Warranty Fast Worldwide Delivery Trusted Seller In Stock & Ready to Ship APC Smart UPS SUA5000RMI5U 5000VA 4000W 8x C13 2x C19 UPS + AP9630 + New Cells What's Included 1 x APC Smart UPS SUA5000RMI5U 5000VA 4000W 8x C13 2x C19 UPS + New Cells- Refurbished
1 x AP9630 Network Management Card
1 x Power Cable
1 x Set of Rails
1 x APC Bezel Specification Delivery ReturnsFull Load 9min 21s & Half Load 26min 40s
New Battery Cells InstalledOutput

• Output power capacity: 4.0 KWatts / 5.0 kVA
• Max Configurable Power (Watts): 4.0 KWatts / 5.0 kVA
• Nominal Output Voltage: 230V
• Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
• Efficiency at Full Load: 96.0 %
• Output Voltage Distortion: Less than 5% at full load
• Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal
• Other Output Voltages: 220, 240
• Topology: Line Interactive
• Waveform type: Sine wave

Output Connections:

• (4) IEC Jumpers (Battery Backup)
• (2) IEC 320 C19 (Battery Backup)
• (8) IEC 320 C13 (Battery Backup)
• Transfer Time: 2ms typical : 4ms maximum

Input

• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: Hard Wire 3-wire
• Input voltage range for main operations: 160 - 286V
• Input voltage adjustable range for mains operation: 151 - 302V
• Efficiency at Full Load: 96.0 %

Batteries & Runtime

• Battery type: VRLA
• Typical recharge time: 3hour(s)
• Replacement Battery: RBC55
• RBC Quantity: 2

Communications & Management

• Interface Port(s): DB-9 RS-232 , SmartSlot
• Pre-Installed SmartSlot Cards: AP9630
• Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators
• Audible Alarm: Audible and visible alarms : configurable delays
• Surge Protection and Filtering
• Surge energy rating: 480Joules
• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height: 222mm , 22.2CM
• Maximum Width: 483mm , 48.3CM
• Maximum Depth: 660mm , 66.0CM
• Rack Height: 5U
• Net Weight: 97.73KG
• Color: Black

Environmental

• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 %
• Operating Elevation: 0-3000meters
• Storage Temperature: -15 - 45 °C
• Storage Relative Humidity: 0 - 95 %
• Storage Elevation: 0-15000meters
• Audible noise at 1 meter from surface of unit: 53.0dBA
• Online thermal dissipation: voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
• Audible alarms - Provides notification of changing utility power and UPS power conditions.
• Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Boost and Trim Automatic Voltage Regulation(AVR) - Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.
• Cold-start capable - Provides temporary battery power when the utility power is out.
• Disconnected battery notification - Warns when a battery is not available to provide backup power.
• Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
• Network manageable - Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
• Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
• Resettable circuit breakers - Enables a quick recovery from overload events.
• Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
• Serial connectivity - Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
• SmartSlot - Customize UPS capabilities with management cards.
• Temperature compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
