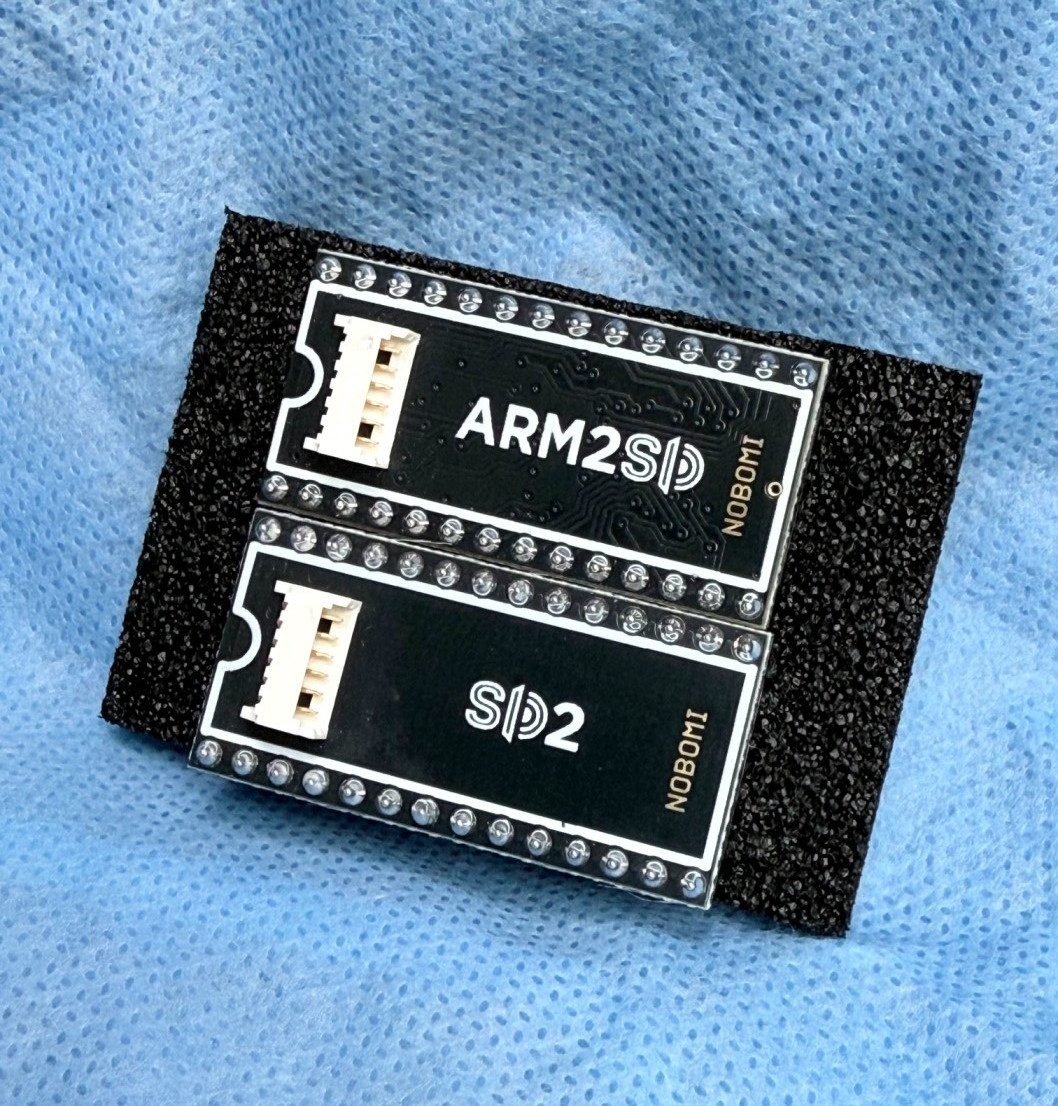

ARM2SID with SID2 socket and dedicated cable for Commodore 64 Ultimate or Gideon's Ultimate 64 (Elite, Elite II)
ARM2SID is "plug & play"replacement of the MOS 6581 and 8580 SID music chipused in the Commodore C64U.It is a real "plug & play" solution. Just insert instead of the original SID chip into the socket and its done.
Accurate sound, significantly lower noise level and less interference from the power supply than the original SID.Automatic recognition of 6581/8580 mode.You can change it anytime by using simple configuration utility to change the SID type, tune the audio filters and test your ARMSID.
Lower power consumption than the original.
Would you like dual-SID stereo, triple-SID, or FM synthesis?
- up to 12 audio channels (2× SID, 3× SID, FM, or SID + FM)- compatible with all C64U- stereo with any combination of 6581 and 8580 models- automatic fallback to dual mono if the second SID is not used- configuration and firmware updates via software utility on the C64U
ARM2SID with SID2 socket and dedicated cable for Commodore 64 Ultimate or Gideon's Ultimate 64 (Elite, Elite II)The best option for Commodore C64 Ultimate or Gideon's Ultimate 64.It is based on the standard 5 cm interconnect cable, but the A8 address line is rerouted: instead of going directly between the two SID sockets, it is extended and finished with a Dupont connector for the SID A[5–9] header on the Ultimate 64.The second SID2 socket is included.
This version allows:- dual SID stereo- triple SID- SFX Sound Expander (FM)
This item include:
1 xARM2SID -MOS SID 6581 / 8580 Replacement
1 x SID2 socket and dedicated cable for C64U
