Motherboard Description:

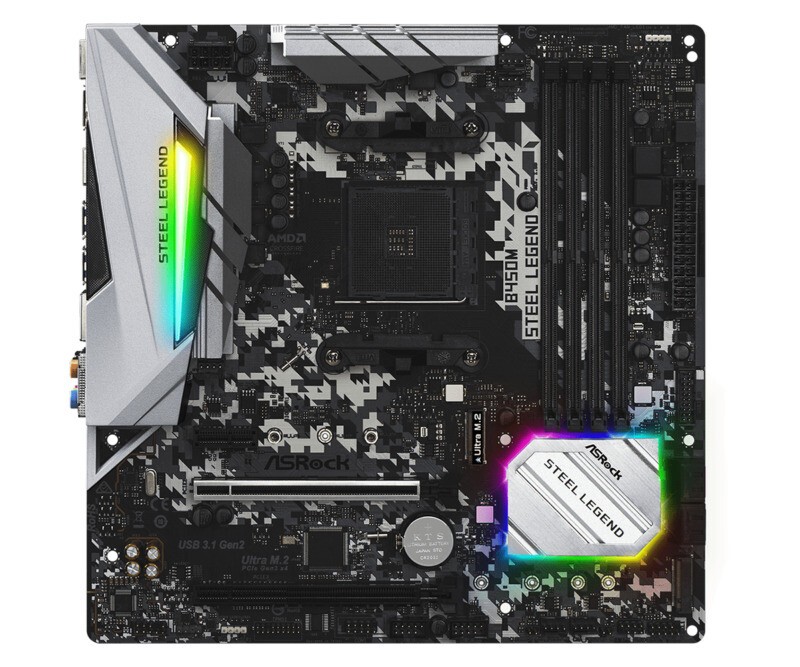

ASRock B450M Steel Legend Motherboard AMD B450 AM4 DDR4 M.2 Micro ATX for Please DO NOT use fake memory, because the motherboard maybe can't support.
Please DO NOT use single-side memory, because some motherboards can't support.
Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.
Package Included:
1 * motherboard
2 * sata cable
1 x I/O back panel
Product information
Exclusive features
ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type A Port (10 Gb/s)
- ASRock USB 3.1 Gen2 Type-C Interface (10 Gb/s)
ASRock Super Alloy
- Super alloy radiator
- 60A high efficiency inductor
- Nichicon 12k Black Capacitor (Original Japanese High Quality High Conductive Solid Capacitor)
- I/O armor
- Gem Black PCB
- High density moisture proof fiber circuit board
- 2 oz copper PCB board
ASRock Alloy Socket
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Protection (supports all USB, audio, network interfaces)
ASRock Instant Update & App Market
CPU
- Supports AMD AM4 socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop processors
- Digitally powered
Chipset
- AMD Promontory B450
RAM
- Dual channel DDR4 memory technology
- 4 x DDR4 memory slots
- AMD Ryzen series processors (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series APU (Cezanne) supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series APU (Renoir) supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Pinnacle Ridge) support DDR4 3533+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (non-ECC), un-buffered memory*
- Maximum system memory capacity: 128GB**
- Supports Extreme Memory Profile (XMP) memory modules
- DIMM sockets feature 15µ gold plated headers
BIOS
- Multilingual 128Mb AMI UEFI Legal BIOS with GUI support
- Support "Plug and Play"
- Compliant with ACPI 5.1, supports Wake Up Events
- Support jumper-free
- Support SMBIOS 2.3
- DRAM voltage multifunction regulator
Onboard graphics card
- Integrated AMD Radeon™ HD Vega series graphics cores on Ryzen series APUs*
- DirectX 12, Pixel Shader 5.0
- Shared memory defaults to 2GB. Supports up to 16GB of shared memory. **
- Dual display output option: HDMI and DisplayPort 1.2 support via separate display controller
- Supports HDMI 1.4 technology, up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports DisplayPort 1.2, up to 4K x 2K (4096x2160) @ 60Hz
- Supports HDMI 1.4 port auto-sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (requires HDMI compatible monitor)
- Supports HDCP 1.4 via HDMI 1.4 and DisplayPort 1.2 ports
- Supports 4K Ultra HD (UHD) playback via HDMI 1.4 and DisplayPort 1.2 ports
*Actual level of support depends on CPU
**To get up to 16GB of shared memory requires 32GB of system memory installed.
Sound effect
- 7.1 channel high definition audio with content protection function (Realtek ALC892/897 audio codec)
- Support anti-surge
- PCB isolation shield
- Layered routing of left and right channels
- Gold plated audio jack
local area network
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Support Wake-On-LAN function
- Support anti-lightning/anti-ESD static electricity
- Supports Energy Efficient Ethernet 802.3az
- Support PXE
Expansion slot
AMD Ryzen series processors (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode)*
- 1 x PCI Express 2.0 x16 slot (PCIE3: x4 mode)
AMD Ryzen series processors (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 slot (PCIE2: x8 mode) (If using Athlon 2xxGE series APU, the PCIE2 slot will operate in x4 mode.)
- 1 x PCI Express 2.0 x16 slot (PCIE3: x4 mode)
AMD Athlon series processors
- 1 x PCI Express 3.0 x16 slot (PCIE2: x4 mode)*
- 1 x PCI Express 2.0 x16 slot (PCIE3: x4 mode)
- 1 x PCI Express 2.0 x1 slot
- Supports AMD Quad CrossFireX™ and CrossFireX™
*Support NVMe SSD boot
Storage
- 4 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and hot plug*
- 1 x Super M.2 port (M2_1), supports M Key 2242/2260/2280 type M.2 PCIe modules up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (Athlon series APU and Raven Ridge 2)**
- 1 x M.2 port (M2_2), supports M Key 2230/2242/2260/2280 type M.2 SATA3 6.0 Gb/s module
*M2_2 shares the channel with SATA3_3. One of them is used and the other will be disabled.
**Support NVMe SSD boot
Support ASRock U.2 kit
Onboard interface
- 1 x COM port header
- 1 x TPM header
- 1 x Chassis open warning function header
- 1 x Power LED and Speaker Header
- 1 x RGB LED header*
- 1 x Programmable LED Header**
- 1 x AMD Fan LED Header***
- 1 x CPU Fan Connector ((4-pin))****
- 1 x CPU / Water Pump Fan Connector ((4-pin)) (Smart Fan Speed Control)*****
- 3 x Chassis/Water Pump Fan Connectors ((4-pin)) (Smart Fan Speed Control)******
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V power connector
- 1 x front panel audio jack
- 2 x USB 2.0 pin headers (supports 4 USB 2.0 ports) (supports ESD protection)
- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (supports ESD protection)
*Support up to 12V/3A, 36W LED strip
**Supports up to 5V/3A, 15W LED strip
***AMD Fan LED header supports up to 12V/3A (36W), and RGB LED strips up to 2.5 meters long.
****CPU fan connector supports up to 1A (12W) power supply.
*****CPU / water pump fan supports up to 2A (24W) water cooling fan.
******Chassis/Water Pump Fan supports up to 2A (24W) water cooling fan.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can automatically detect 3-pin or 4-pin fans.
I/O port on the rear panel
- 1 x PS/2 keyboard/mouse port
- 1 x HDMI port
- 1 x DisplayPort 1.2
- 1 x Optical SPDIF digital audio output port
- 2 x USB 2.0 ports (supports ESD protection)
- 1 x USB 3.1 Gen2 Type A port (10 Gb/s) (supports ESD protection)
- 1 x USB 3.1 Gen2 Type-C port (10 Gb/s) (supports ESD protection)
- 4 x USB 3.1 Gen1 ports (supports ESD protection)
- 1 x RJ-45 network interface with indicator lights (action/connection indicator and speed indicator)
- HD Audio Jacks: Rear / Center / Bass / Line In / Front / Mic (gold plated audio jack)
Dimensions
- Micro ATX; 9.6-in x 9.6-in, 24.4 cm x 24.4 is the only online payment method we accept. Please make sure you have a valid/confirmed PayPal account prior offerding. And please make sure that your PayPal registed address is the same with your registed address.
