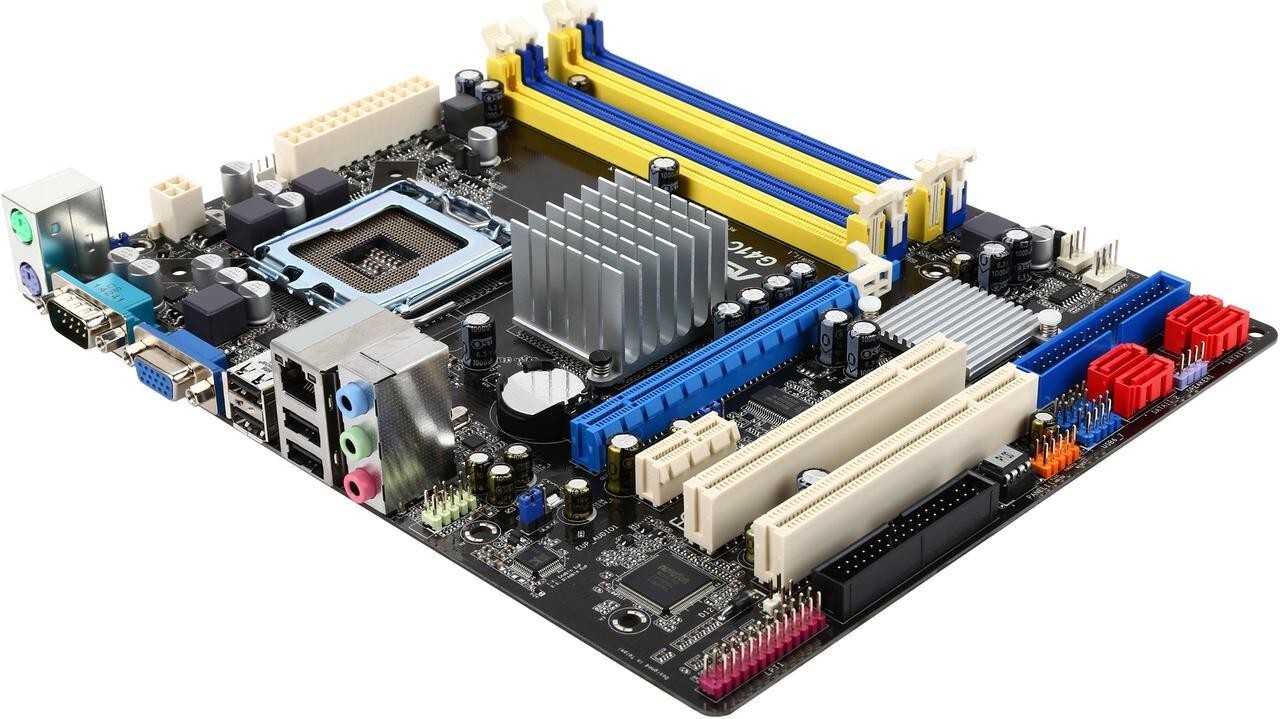

Item Condition:Prior customer stated board is defective/DOA. For Parts or Repair and Sold as is. Accessories include I/O Shield, 2x SATA Cable, Manual, CD. Buyer acknowledges and assumes risk with R2.0Supported CPUCPU Socket TypeLGA 775CPU TypeLGA 775 for Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale ProcessorsFSBSupports FSB 1333/ 1066/ 800/ 533 MHzSupported CPU TechnologiesHyper-Threading TechnologyChipsetsChipsetIntel G41South BridgeIntel ICH7Onboard VideoOnboard Video ChipsetIntel Graphics Media Accelerator X4500
Pixel Shader 4.0, DirectX 10
Max. shared memory 1759MB
Supports D-Sub with max. resolution up to 2048x1536 @ 75HzMemoryNumber of Memory Slots2 x DDR3 DIMM Slots
2 x DDR2 DIMM SlotsMemory Standard2 x DDR3 DIMM Slots
- Supports DDR3 1333(OC)/ 1066/ 800 non-ECC, un-buffered memory
2 x DDR2 DIMM Slots
- Supports DDR2 800/ 667/ 533 non-ECC, un-buffered memory* DDR3 and DDR2 are supported separately.Maximum Memory Supported8GB*
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.Channel SupportedDual ChannelExpansion SlotsPCI Express x161 x PCI Express x16PCI Express x11 x PCI Express x1PCI Slots2 x PCI SlotsStorage DevicesSATA 3Gb/s4 x SATA2 3.0Gb/s Connectors (No support for RAID and Hot Plug)Onboard AudioAudio ChipsetRealtek ALC662Audio Channels5.1 ChannelsOnboard LANLAN ChipsetRealtek RTL8111GRMax LAN Speed1GbpsRear Panel PortsBack I/O Ports2 x PS/2 / 4 x USB 2.0/1.1PS/21 x PS/2 Mouse Port
1 x PS/2 Keyboard PortCOM1Video Ports1 x D-SubRJ451 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)USB 1.1/2.04 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))Audio PortsHD Audio Jacks: Line in / Front Speaker / MicrophoneInternal I/O ConnectorsOnboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))Other Connectors1 x ATA100 IDE Connector (Supports 2 x IDE devices)
1 x Floppy Connector
1 x Print Port Header
1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (4-pin)
1 x Power Fan Connector (3-pin)
1 x Front Panel Audio ConnectorPhysical SpecForm FactorMicro ATXPower Pin1 x 24-pin ATX Power Connector
1 x 4-pin 12V Power ConnectorFeaturesFeaturesBIOS:
- 8MB AMI Legal BIOS
- Supports Plug and Play
- ACPI 1.1 compliant wake up events
- Supports jumperfree
- VCCM, NB, VTT, GTLRef Voltage multi-adjustment
- Supports Smart BIOSUnique Feature:
- ASRock OC Tuner
- ASRock Intelligent Energy Saver
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock OC DNA
- ASRock XFast LAN
- ASRock XFast RAM
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)Hardware Monitor:
- CPU temperature sensing
- Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU VcoreOS:
- Microsoft Windows 7 32-bit / 7 64-bit / Vista 32-bit / Vista 64-bit / XP 32-bit / XP 64-bitCertifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
