ASRock H55M-LE Intel H55 Mainboard Micro ATX Sockel 1156
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

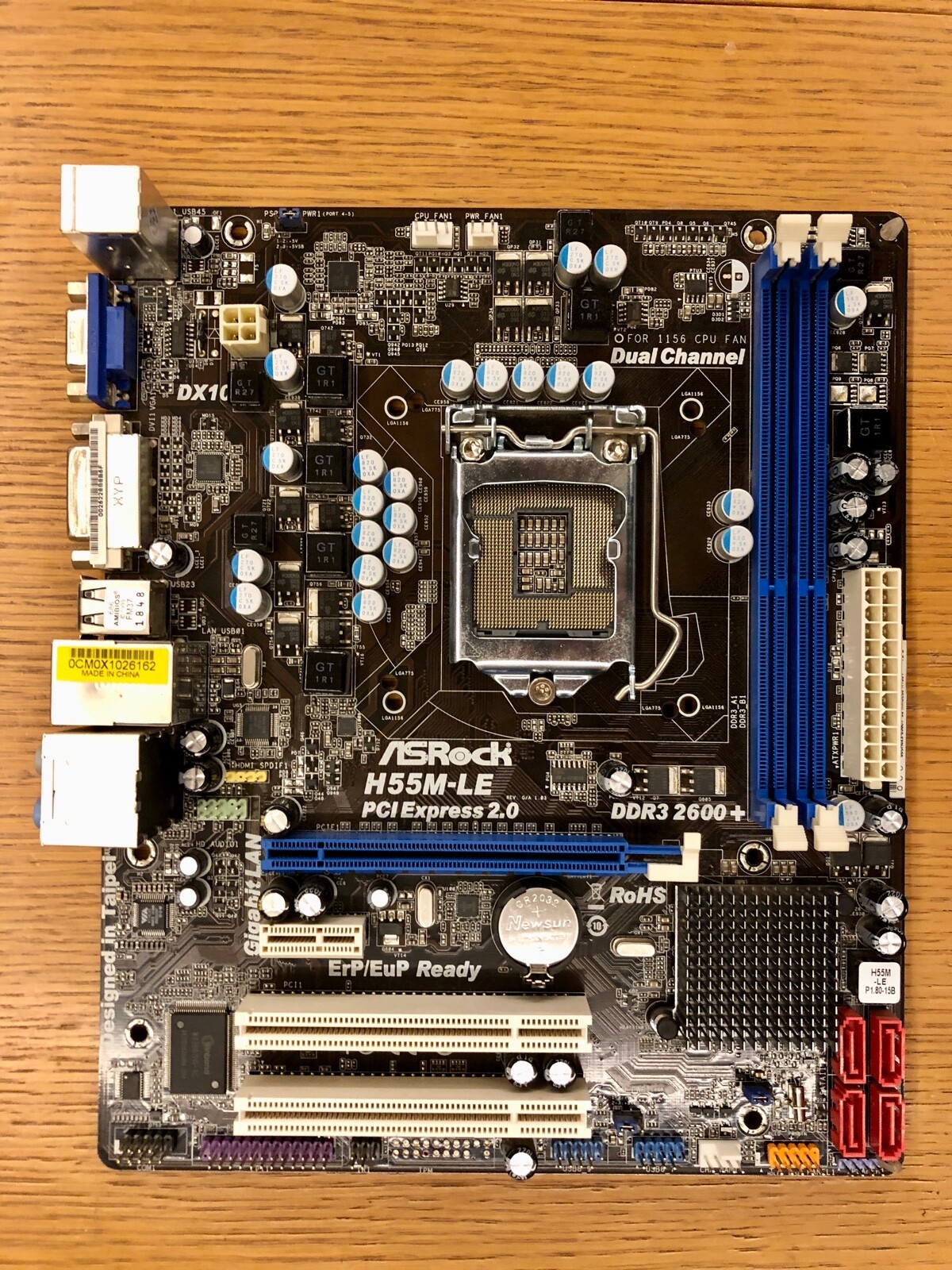

ASRock H55M-LE Intel H55 Mainboard Micro ATX Sockel 1156
Price: LT $44.99
Selling fully working condition motherboard with I/O shield:ASRock H55M-LE
  • CPU- Supports Intel®Core™ i7 / i5 / i3 and Pentium®G6950 Processors in LGA1156 Package
    - Supports Intel®Turbo Boost Technology
    - Supports Hyper-Threading Technology
    - Supports Untied Overclocking Technology
    - Supports EM64T CPU
  • Chipset- Intel®H55
  • Memory- Dual Channel DDR3 memory technology
    - 2 x DDR3 DIMM slots
    - Supports DDR3 2600+(OC) / 2133(OC) / 1866(OC) / 1600 / 1333/1066 non-ECC, un-buffered memory
    - Max. capacity of system memory: 8GB**
    - Supports Intel®Extreme Memory Profile (XMP)

    *In order to maximize the system memory, please install 2GB/4GB memory module with 16 cells.

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows®32-bit OS. For Windows®64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS- 16Mb AMI Legal BIOS
    - Supports "Plug and Play"
    - ACPI 1.1 Compliance Wake Up Events
    - Supports jumperfree
    - SMBIOS 2.3.1 Support
    - CPU, DRAM, VTT, PCH, CPU PLL, GFX Voltage Multi-adjustment
  • Graphics*Requires Processor with Intel®Graphics Technology
    - Supports Intel®HD Graphics
    - Pixel Shader 4.0, DirectX 10
    - Max. shared memory 1759MB*
    - Two graphics output options: Support DVI-D and D-Sub ports by independent display controllers
    - Supports DVI with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
    - Supports HDCP function with DVI port
    - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI port
    - DVI port can be transferred to a HDMI port to support Deep Color, xvYCC and HBR audio (High Bit Rate Audio) (Compliant HDMI monitor is required)

    *The shared memory size is dynamically controlled by VGA driver, and the Max. shared memory size will be available only when more than 4GB memory is installed under 64-bit OS.

    **Due to chipset limitation, the Blu-ray playback of Intel®HD Graphics is only supported under Windows®Vista™ and Windows®7.

    ***For more information, please refer to the "CPU Support List".
  • Audio- 7.1 CH HD Audio (VIA®VT1718S Audio Codec)
  • LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111DL
    - Supports Wake-On-LAN
    - Supports PXE
  • Slots- 1 x PCI Express 2.0 x16 slot (at x16 mode)
    - 1 x PCI Express 2.0 x1 slot (2.5GT/s)
    - 2 x PCI slots
  • Connector- 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
    - 1 x IR header
    - 1 x Print Port header
    - 1 x COM port header
    - 1 x HDMI_SPDIF header
    - 1 x Chassis Intrusion header
    - CPU/Chassis/Power FAN connector
    - 24 pin ATX power connector
    - 4 pin 12V power connector
    - Front panel audio connector
    - 2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • Rear Panel I/OI/O Panel
    - 1 x PS/2 Keyboard Port
    - 1 x VGA/D-Sub Port
    - 1 x VGA/DVI-D Port
    - 6 x Ready-to-Use USB 2.0 Ports
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Unique Feature- ASRock OC Tuner
    - Intelligent Energy Saver
    - Instant Boot
    - ASRock Instant Flash
    - ASRock OC DNA
    - ASRock XFast USB
    - ASRock XFast LAN
    - ASRock XFast RAM
    - Hybrid Booster:
    - CPU Frequency Stepless Control
    - ASRock U-COP
    - Boot Failure Guard (B.F.G.)
    - Combo Cooler Option (C.C.O.)
    - Good Night LED
    - Turbo 50 / Turbo 100 GPU Overclocking (Requires Processor with Intel®Graphics Technology)
  • Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
  • Accessories- Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
  • Hardware Monitor- CPU Temperature Sensing
    - Chassis Temperature Sensing
    - CPU, Chassis, Power Fan Tachometer
    - CPU Quiet Fan
    - CPU, Chassis Fan multi-speed control
    - CASE OPEN detection
    - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor- Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm
    - Solid Capacitor for CPU Power
  • OS- Microsoft®Windows®7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
  • Certifications- FCC, CE
    - EuP Ready (EuP ready power supply is required)
