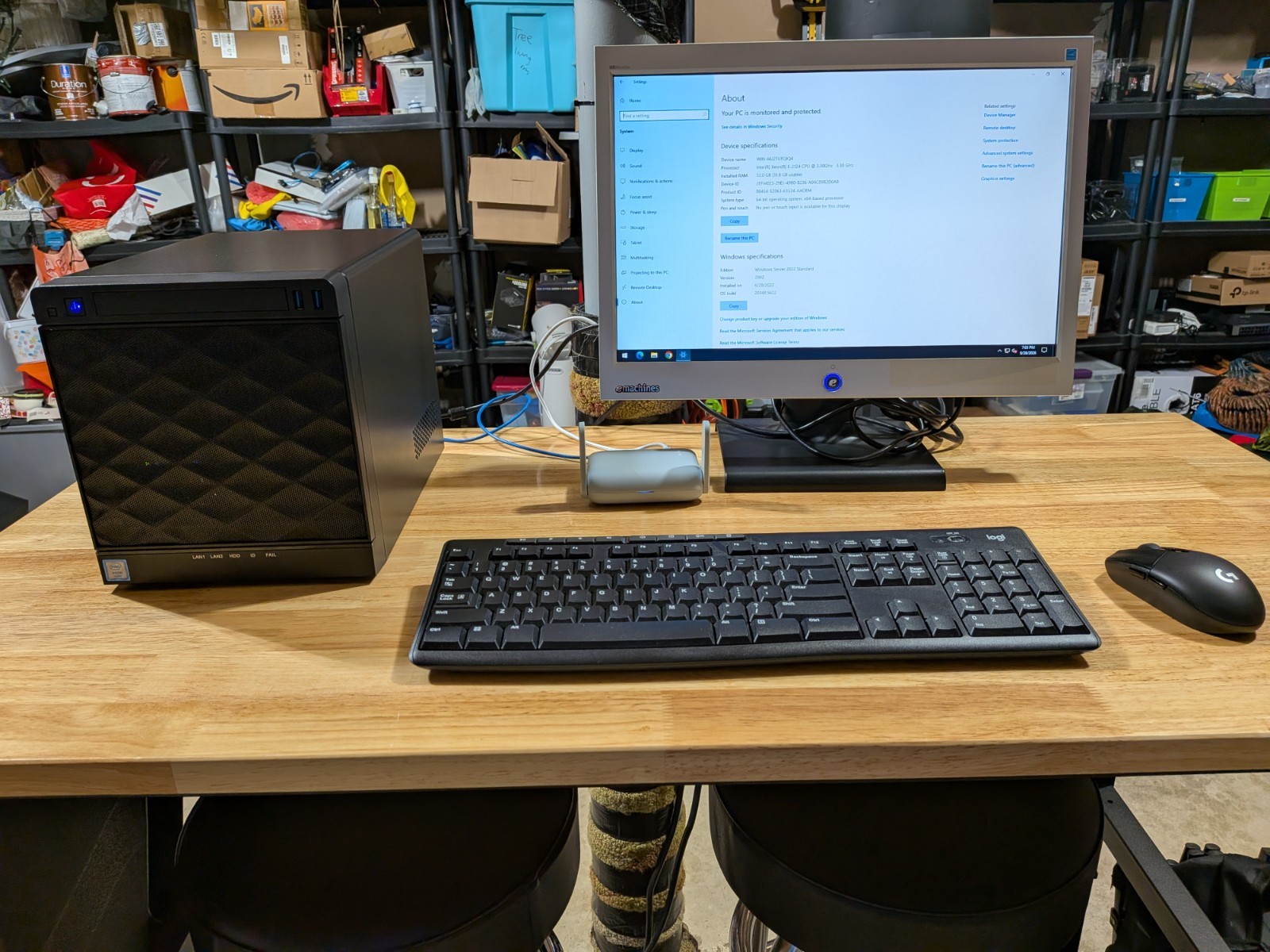

Compact Custom Server / NAS – Xeon / ECC / Hardware RAID / IPMI
Fully assembled, tested and ready-to-use compact server built with server-grade components. This system was maintained as a spare server and has now been updated, tested and configured for sale.
Hardware
- ASRock Rack E3C246D2I Mini-ITX server motherboard
- Intel Xeon E-2124, 4 cores / 4 threads, 3.30 GHz base / up to 4.30 GHz turbo
- 32GB NEMIX DDR4-2666 ECC P/N SK hynix NVMe SSD – operating system drive
- 2x Western Digital Red WD40EFAX 4TB SATA HDDs
- HDDs configured as RAID1
- Approximately 3.63TB usable RAID1 capacity
- Avago / Broadcom LSI MegaRAID SAS 9361-4i
- 1GB hardware RAID cache
- Battery Backup Unit / cache protection installed
- RAID controller firmware updated to 4.680.00-8577
- Controller reports Optimal
- BBU reports Optimal
- Cache configured for Always Read Ahead / Always Write Back
- InWin IW-MS04 compact 4-bay hot-swap server chassis
- PowerMan 265W 80 PLUS power supply
- Dual Intel Gigabit Ethernet
- Dedicated IPMI/BMC remote management
- VGA and USB connectivity
- Four front-accessible hot-swap HDD bays
Software
Windows Server 2022 Standard is installed, activated and updated.
The operating system is installed on the separate 256GB NVMe SSD. The RAID1 array is available as a separate approximately 3.63TB data volume.
Testing / Condition
System has been tested and boots normally into Windows Server 2022. CPU, 32GB ECC memory, NVMe SSD, network interfaces and RAID storage are recognized and functioning.
MegaRAID controller, RAID1 virtual disk and battery backup report healthy/optimal status.
Motherboard BIOS/BMC and MegaRAID firmware have been updated to current versions available for the installed hardware.
Important photo note: Some BIOS and RAID configuration photos were taken prior to the firmware updates and therefore may display older firmware version numbers. The system has subsequently been updated.
The installed WD40EFAX drives are WD Red 4TB drives and use SMR recording technology
Tower and Power Cord Only
