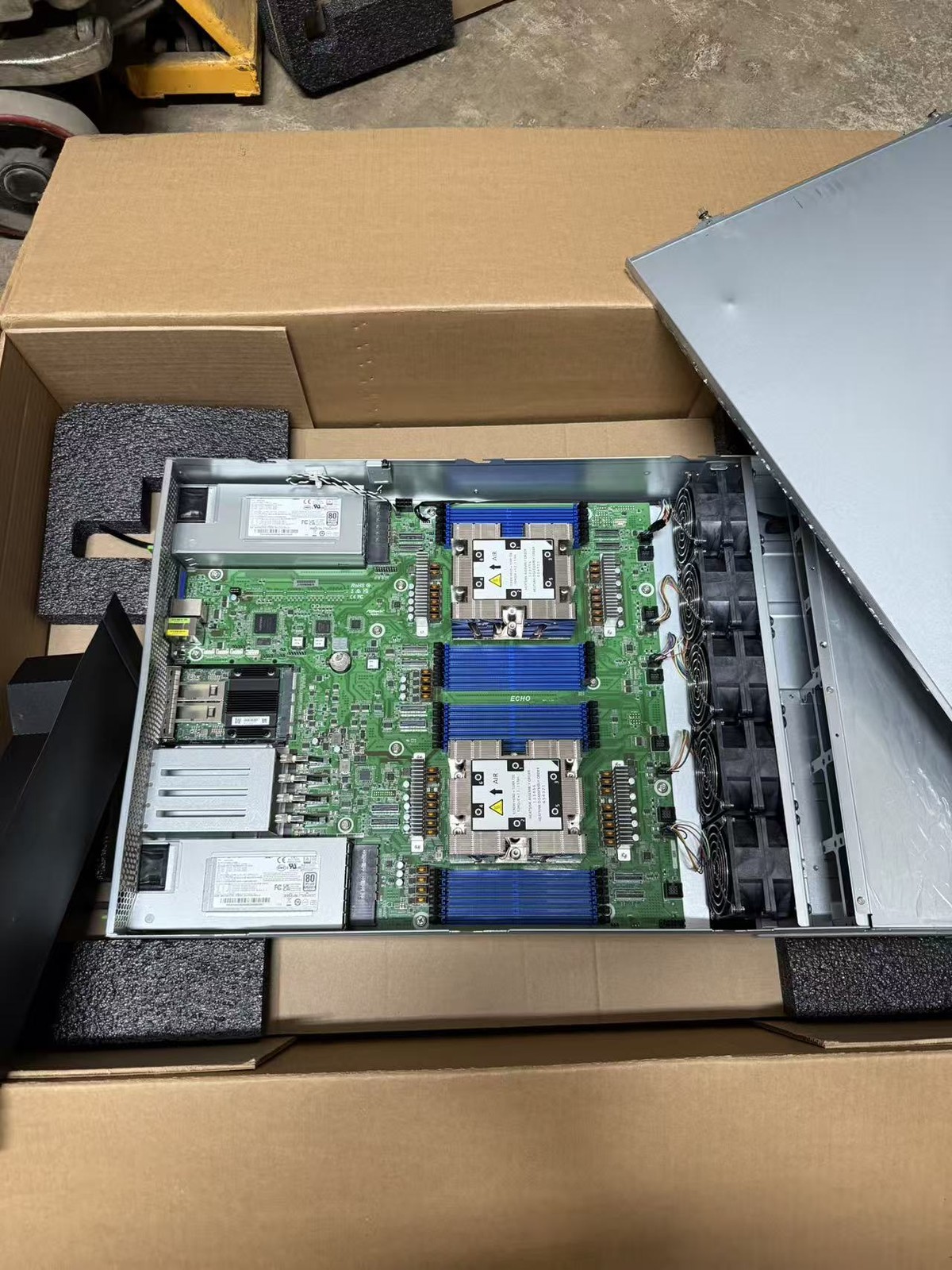

2U Rackmount with 1+1, 80-PLUS Titanium, 2600W CRPS
1. Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
2. 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
3. 24 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
4. 2 fixed 2.5" NVMe (PCIe5.0 x4) drive bays
5. 1 FHHL PCIe5.0 x16 or 2 FHHL PCIe5.0 x8
6. 1 FHHL PCIe5.0 x16 or 2 FHHL PCIe5.0 x8
7. 1 HHHL PCIe5.0 x8
8. Supports 2 M.2 (PCIe3.0 x4)
9. 2 RJ45 (1GbE) by Intel®i350
10. 1 OCP NIC 3.0 (PCIe5.0 x16)
11. Remote Management (IPMI)

System
Chassis height 2U Rackmount
Appearance dimensions (depth) x wide x High) 770.0 x 438.0 x 86.4 mm (30.3'' x 17.2'' x 3.4'')
Motherboard size GENOA2D24TM3-2L+/2U
front panel
button Power, Reset, UID
LED Power, LAN 1/2, HDD Activity, System status
I/O port 1 Type-A (USB3.2 Gen1), 1 Type-A (USB2.0), 1 DB15 (VGA)
External hard drive drag and drop/ Storage
Front hot swappable hard drive tray 24 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
Front control backplane 24-port NVMe passive backplane
Rear Window 2 fixed 2.5'' NVMe (PCIe5.0 x4) drive bays
inner side 1 M-key (PCIe3.0 x4), supports 2280/2260/2242/2230 form factor [CPU0]
1 M-key (PCIe3.0 x4), supports 2280/2242 form factor [CPU1]
power supply
specifications 1+1 CRPS
Output power 1000W @ 100-127Vac input / 2600W @ 220-240Vac input
efficiency 80-PLUS Titanium
AC Import Low-line: 100-127Vrms, 50/60Hz ; High-line: 220-240Vrms, 50/60Hz
System Fan
fan 6 PWM hot-swap 60x38 mm fans
processor system
cpu Supports AMD EPYC ™ 9005*/9004（with AMD 3D V-Cache ™ Technology) and 97x4 series processors*A BIOS update is required to support AMD EPYC ™ 9005 series processors
stitch Dual Socket SP5 (LGA 6096)
Power supply design Up to 360W
chipset System on Chip
memory
capacity 12+12 DIMM slots (1DPC)
specifications Supports DDR5 288-pin RDIMM, RDIMM-3DS
DIMM Size Per DIMM RDIMM: 128GB (2Rx4)
RDIMM-3DS: 512GB (2Rx4)
Max. DIMM Frequency 4800 MHz
voltage 1.1V
expansion slot
PCIe x 16 Rear:
1 FHHL PCIe5.0 x16 or 2 FHHL PCIe5.0 x8
1 FHHL PCIe5.0 x16 or 2 FHHL PCIe5.0 x8
1 HHHL PCIe5.0 x8
Ethernet
Additional GbE Controller Intel ® i350: 2 RJ45 (1GbE)
OCP slot 1 OCP NIC 3.0 (PCIe5.0 x16) [CPU1]
manage
Integrated substrate management controller ASPEED AST2600
Intelligent platform external frequency management interface 1 Realtek RTL8211F for dedicated management GLAN
show
controller ASPEED AST2600
Video Random Access Memory DDR4 512MB
Backplane output/input interface
Display connector 1 DB15 (VGA)
USB 3.2 Gen1 port 2 Type-A (USB3.2 Gen1)
RJ-45 network port 2 RJ45 (1GbE)
1 dedicated IPMI
Serial port 1 RJ45 (COM)
UID Button/ UID LED 1 UID button w/ LED
System BIOS
BIOS specification AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and abouve compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
Hardware monitoring
Temperature CPU, MB, Card side Temperature Sensing
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
voltage P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB
Environment
Operation temperature: 10 ° C~35 ° C/Non operation temperature: -40 ° C~70 ° C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
