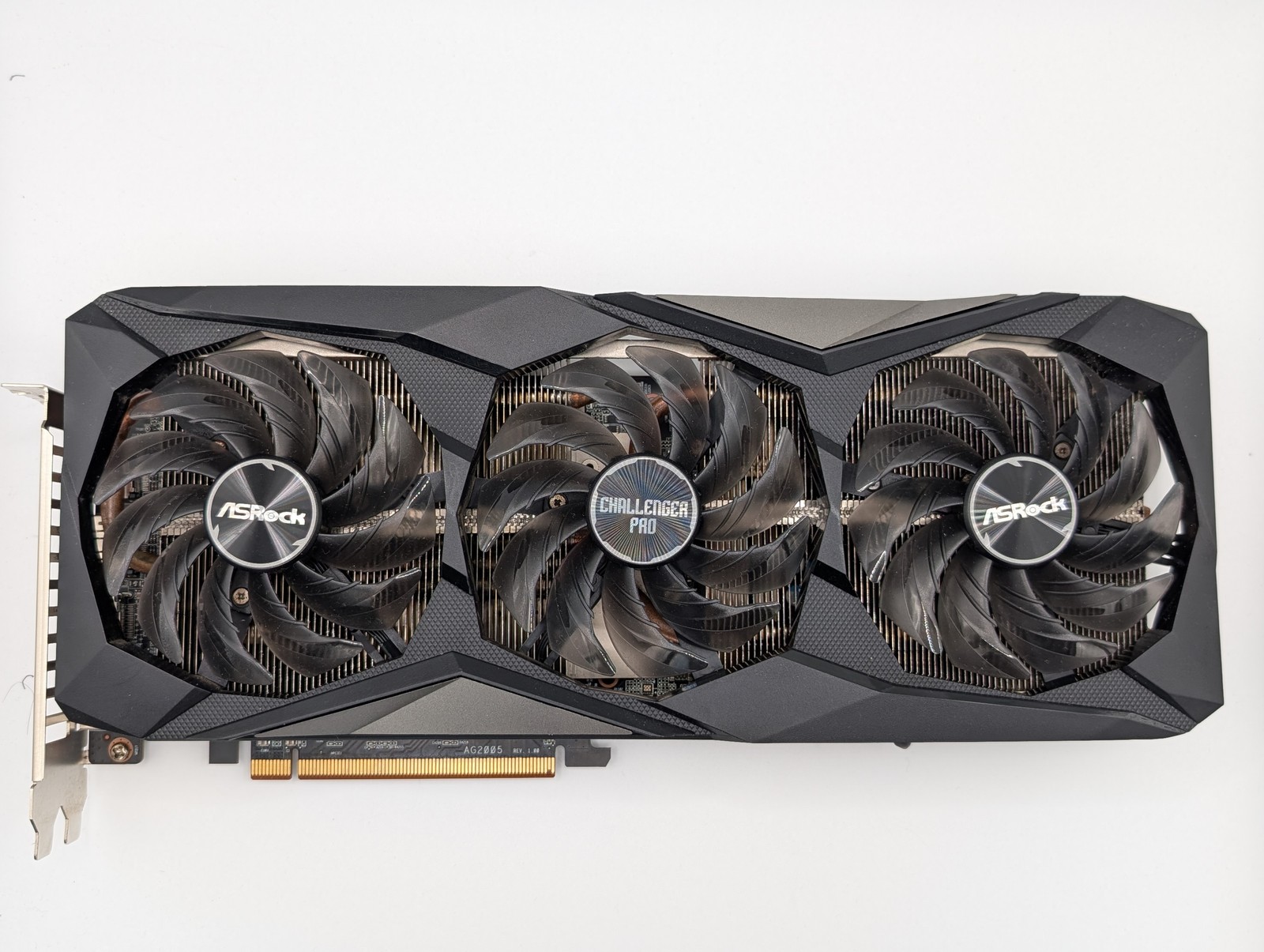

Here are the detailed specifications for the ASRock AMD Radeon RX 6700 XT Challenger Pro 12GB OC graphics card.

⚙️ Core Specifications

🔌 Connectivity & Power

• Video Outputs

  • 3 × DisplayPort 1.4a (with DSC)

  • 1 × HDMI 2.1 VRR

• Max Multi-Monitor Support: 4 displays

• Max Digital Resolution: 7680 × 4320 (8K)

• External Power Connectors: 2 × 8-pin PCIe

• Recommended PSU: 650W – 700W

🧊 Cooling & Dimensions

• Cooling Solution: Triple-fan “Challenger Pro” cooler

• Key Features:

  • Striped Axial Fans

  • Ultra-fit Heatpipe

  • Metal Backplate

  • 0dB Silent Cooling technology

• Card Dimensions: ~303 × 131 × 45 mm (2.3-slot thick)

• Card Weight: ~890 g

🚀 Performance & Features

• Performance Tier: Designed for 1440p (2K) high-refresh gaming. It is positioned between the RTX 3060 Ti and RTX 3070 in terms of rasterization performance.

• API & Feature Support:

  • DirectX: 12 Ultimate

  • OpenGL: 4.6

  • Vulkan: 1.3

  • Ray Tracing: Yes (40 Ray Accelerators)

  • AMD FSR: Supported

• Platform Technologies:

  • AMD Smart Access Memory (SAM) when paired with a compatible AMD Ryzen 5000 CPU and motherboard.

  • AMD FreeSync, Radeon Anti-Lag, and Radeon Boost.
