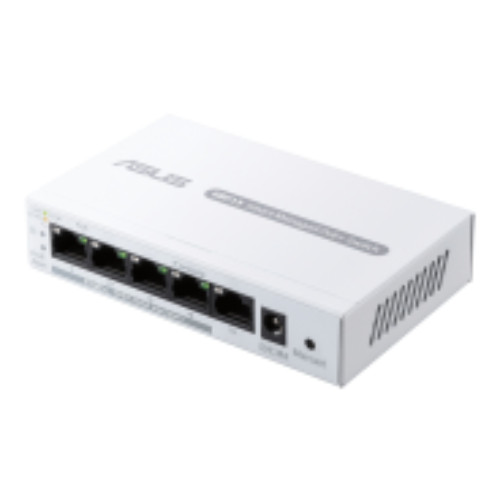

ASUS ExpertWiFi EBP15 Switch LAN*4 WAN POE White 90IG08D0-MO3B00
ModelASUS ExpertWiFi EBP15Port characteristicsFive 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIXStandardIEEE 802.1p
IEEE 802.1q
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at IEEE
802.3i
IEEE 802.3u
IEEE 802.3x
IPv4ColorWhitePoE Budget60 wattsProductivityMAC Address : Up to 8 K
Buffer Memory : 4 Mbits
Switching Capacity : 10Gbps
Packet Forwarding Rate : 7.44Mpps
Jumbo Frame : 15KBLED indicatorsSystem power ON/OFF
PoE Alert
Link, Speed, activity, and PoE indicators per port built into each RJ-45 portPower supplyAC Input: 100V~240V (50~60Hz)
DC Output: 54V, 1.25APoE portsStandard: 802.3 af/at compliant
PoE ports: port 1 - port 4
Maximum power per port: 30WManagementQuality of Service
IGMP Snooping
Port Mirroring
Loop Detection/Prevention
Web-based GUI
ExpertWiFi APP (with ExpertWiFi products only)Operating conditionsOperating temperature: 0℃~40℃ (32℉~104℉)
Storage temperature: -20℃~70℃ (-4℉~158℉)
Operating humidity: 10%~95%RH non-condensing
Storage humidity: 5%~95%RH non-condensingFor search onlyPoE+ SwitchSoftware featuresExpertWiFi AiMesh Mode (with ExpertWiFi router only): Centrally manage connected devices via ASUSWRT/ExpertWiFi app
Standalone Mode: IGMP Snooping, VLAN, Loop Detection/Prevention, Port Mirroring, Port-based QoS, 802.1p CoS, Update Firmware, PoE priority setting, PoE EBP15
Ethernet cable RJ45
Power supply
User manual
Warranty cardMass, g248 gDimensions (L*W*H), mm121 x 75 x 26 mm
