ASUS Graphics Card - EN7300GT/Silent/HTD/256M/A - Tested and Working Well
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
ASUS Graphics Card - EN7300GT/Silent/HTD/256M/A - Tested and Working Well
Price: AU $17.46

ASUS Graphics Card - EN7300GT/Silent/HTD/256M/A – Tested and Working – safe from static storage

EN7300GT

NVIDIA GeForce

PCI Express x 16

Memory Size: 256Mb

Memory Type: DDR2

Ports: DVI / VGA

Tested and Working

Card Stored and Shipped in Static Protector Bag

One of a few ASUS Graphics Processing Units, based on NVIDIA GeForce 7300 GT DDR2, ASUS EN7300GT SILENT (part number EN7300GTSILENT/HTD/256M) is fabricated on 90 nm manufacturing process.

The card is targeted at desktop market segment. The card's graphics frequency is 400 MHz. It also has 8 pixel shaders, 8 texture units, as well as 4 ROPs. The EN7300GT SILENT has 256 MB of DDR2 memory. Because the memory operates at 400 MHz, and utilizes 128 bit interface, the effective memory bandwidth is 12.8 GB/s.

The GPU supports PCI Express 1.0 interface, and needs 1 slot on the motherboard. 3D graphics and game performance of the ASUS EN7300GTSILENT can also be improved if it is paired with another graphics card.

Name / Brand / ASUS

  • Model: EN7300GT SILENT
  • Part number: EN7300GTSILENT/HTD/256M
  • Based on: NVIDIA GeForce 7300 GT DDR2 [Compare]
  • Target market segment: Desktop
  • Die name: G73
  • Architecture: Fourth Generation CineFX Shading Architecture
  • Fabrication process: 90nm
  • Transistors: 177million
  • Bus interface: PCI-E1.0 x clock: 400MHz

    • Memory specifications

    • Memory size: 256MB
    • Memory type: DDR2
    • Memory clock: 400 MHz
    • Memory clock (effective): 800MHz
    • Memory interface width: 128-bit
    • Memory bandwidth: / Texture

      • ROPs: 4
      • Pixel shader processors: 8
      • Vertex shader processors: 5
      • Texture units: 8

      RAMDACs: 400MHz

      • Decoders: H.264/ MPEG-2 /WMV

      SLI / Crossfire

      • Maximum SLI options: 2-way

      Video features

      • Maximum digital resolution: 2560x 1600
      • Maximum VGA resolution: 2048x 1536
      • Anti-Aliasing technologies: fill rate: 1.6Gigapixels/s
      • Texture fill rate: connectors

        • Standard display connectors: DVI-I/ S-Video / Single-Slot

        Other features /Support

        • Other features: High Dynamic Range (HDR) Support
        • OpenGL support: 2.1
        • DirectX support: 9.0c
        • Pixel shader model: 3.0
        • Vertex shader model: 3.0
        Notes: Passive Cooling

        Card Stored and Shipped in Static Protector Bag

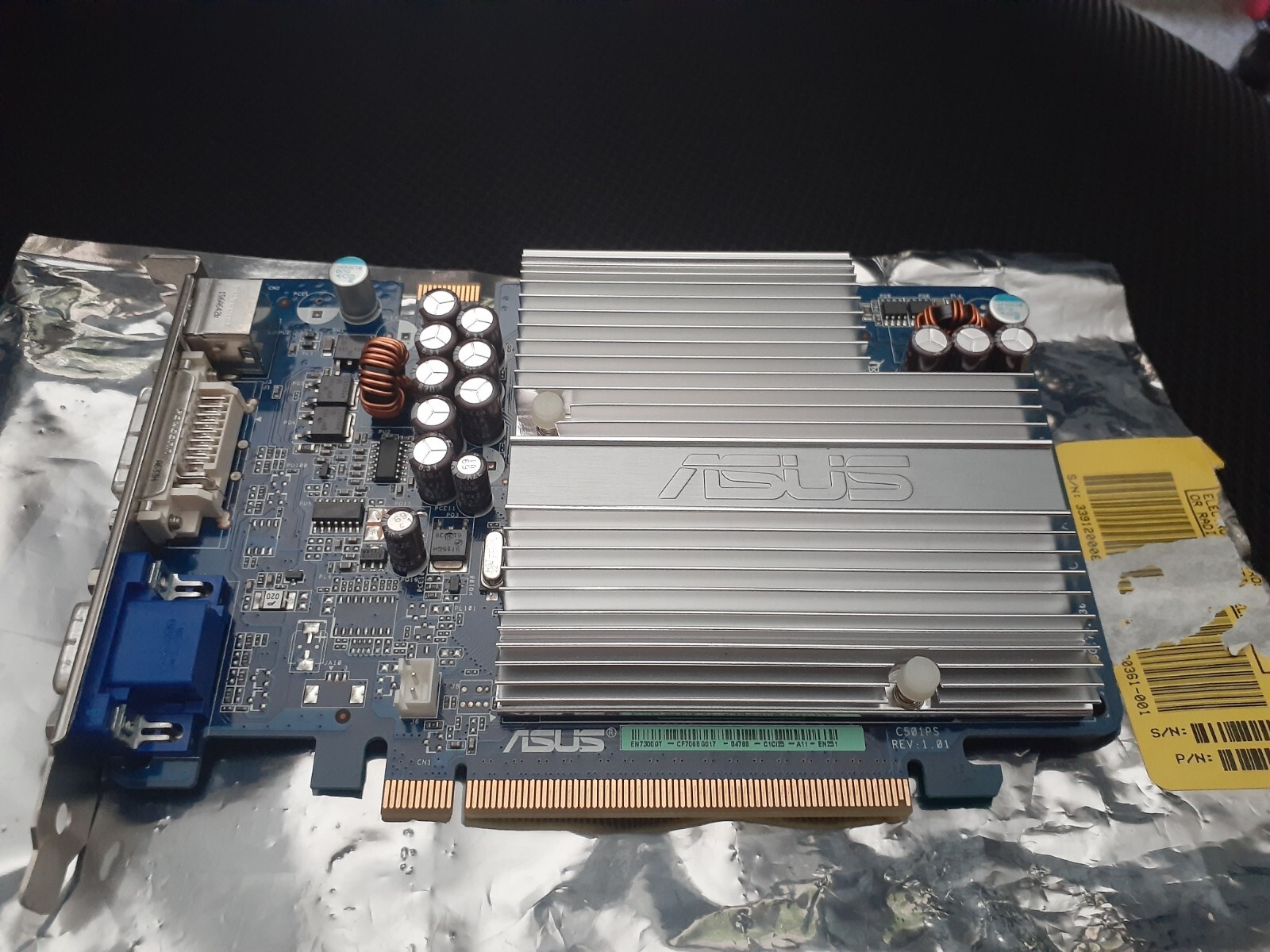

        Photos show actual item.

        Pick up from North Adelaide (or Australia Will ship in 1 to 2 working days (normally less than 24hours!)

        - Australia Post Standard Parcel – packed well and tracked.


        - Any questions, or if unsure or unclear on any issue, please ask as I am happy to help or clarify.

        - Ask me about 'bundling with other listings' to save on postage.
