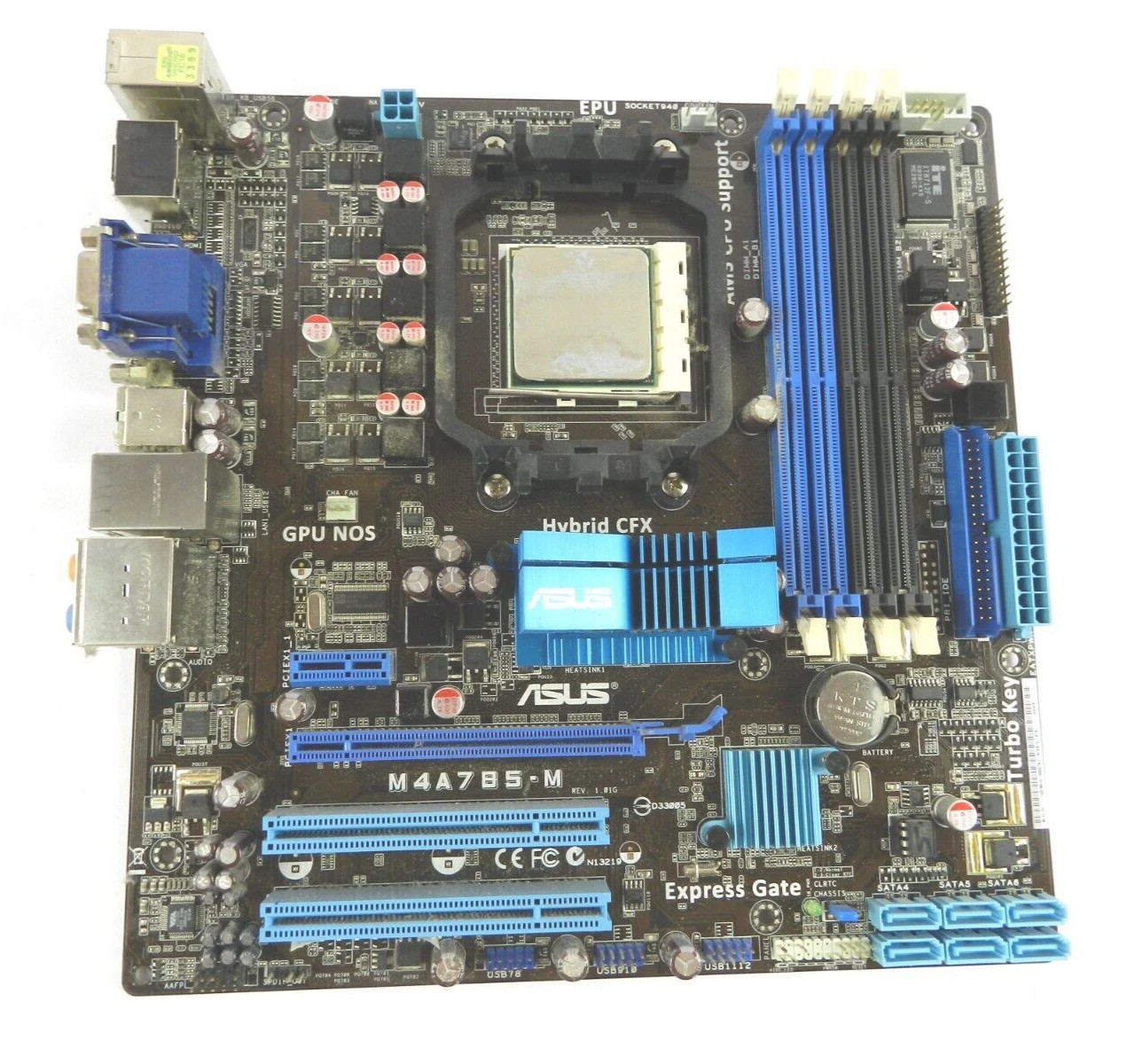

ASUS M4A785-M Motherboard AMD 785G DDR2 Socket AM2/AM2+ Micro ATX w/ IO Shield

• Model: ASUS M4A785‑M (Micro‑ATX)
• Platform: AMD 785G (Northbridge) + SB710 (Southbridge)
• CPU Socket: AM3 / AM2+ / AM2 compatible
• CPU Support: Phenom II / Athlon II / Phenom / Athlon / Sempron (up to 125W)
• Form Factor: Micro‑ATX (24.4×24.4 cm)

VRM

• 4+1 phases with solid capacitors, 125W CPU support
• Cool ‘n’ Quiet 2.0 supported

Memory

• 4×DDR2 DIMM, dual‑channel, max 16GB
• Speed: DDR2 667/800/1066 MHz (native) / 1200MHz (OC)
• ECC/non‑ECC unbuffered supported

Integrated Graphics

• ATI Radeon HD 4200, DirectX 10.1, UVD2 video decoding
• Hybrid CrossFire support

Storage

• 5×SATA 3Gb/s, RAID 0/1/10/JBOD
• 1×eSATA port

Expansion

• 1×PCIe 2.0 x16 (discrete GPU)
• 1×PCIe x1, 2×PCI
• AMD CrossFireX supported

Video Output

• VGA + DVI + HDMI (4K@30Hz capable)

Network & Audio

• LAN: Realtek RTL8111C Gigabit Ethernet
• Audio: Realtek ALC887 (VT1708S) 8‑channel HD audio

USB & Rear I/O

• Rear: 6×USB2.0, 1×eSATA, VGA/DVI/HDMI, RJ45, audio jacks
• Front: 4×USB2.0, audio headers

Features

• CPU unlocking (SB710, some Athlon II → quad‑core)
• ASUS EZ Flash 2 (BIOS update without CPU)
• Anti‑surge, solid capacitors, Q‑Connector

Best For

• Legacy AMD upgrades (AM2/AM2+/AM3)
• Office/home/HTPC builds, low‑power stable systems
• Retro builds, CPU unlocking enthusiasts
• Please note: This product does not include batteries as they are prohibited items.
  All motherboards in this store are used motherboards. Motherboards are updated rapidly, so the pictures displayed on the page may not match the actual ones. Please contact customer service to obtain the latest actual pictures
