Dear customers:
This is Anny's shop, welcome to purchase our items, we will provide excellent products and professional service to you.
We promised all the motherboards are carefully tested, 100% working, No DEFECT, NO FAULT, NO DOA, and shipped in a safe package.
If any problem please contact us, because of the time difference, we may reply you late for hours, please be patient to wait, we must reply you in 12 hours, and give you safisfied solution.
Warranty:
Our item warranty is 90 days, if any problem, we can replace, exchange or refund. But please make sure the item was from me, because our items have warranty mark.
Warm notes:
1. Please DO NOT use fake memory, because most of genuine band motherboards can't support that.
2. Please DO NOT use single-side memory, because some motherboards can't support that.
3. Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
4. Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

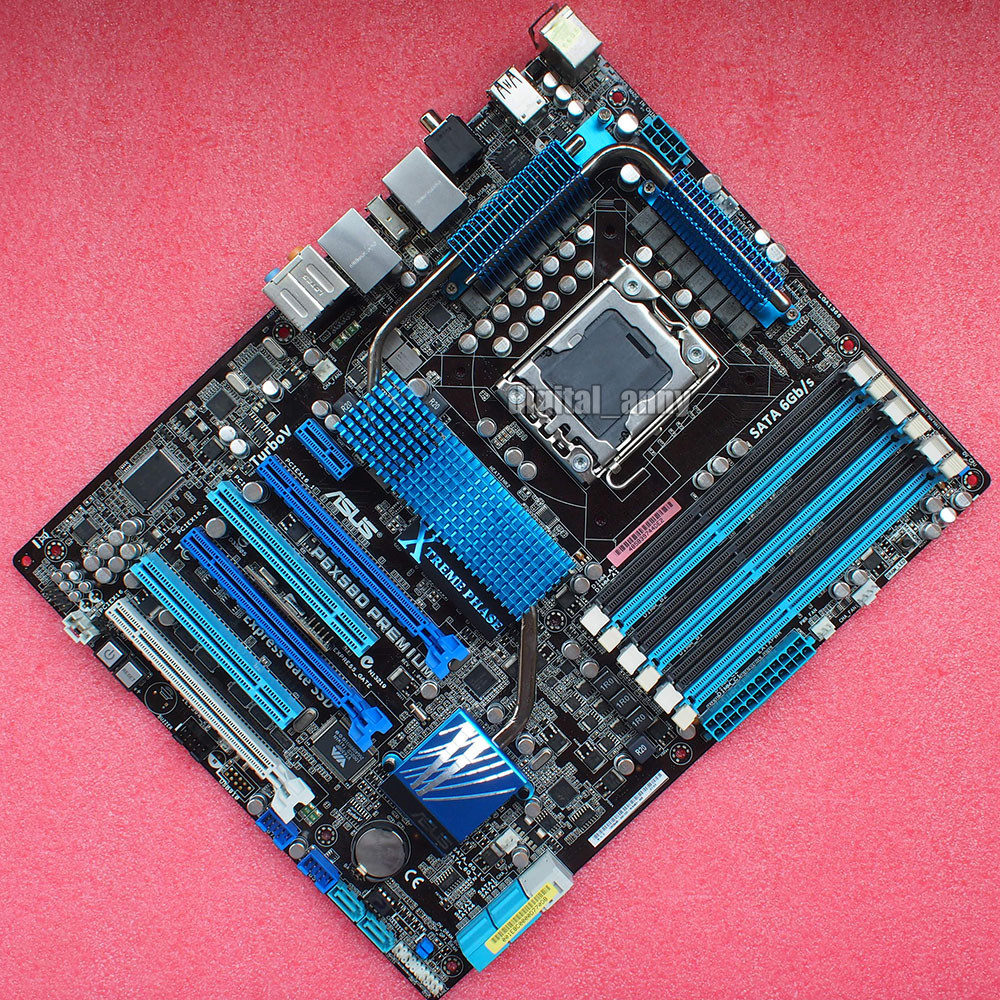

Official specification:
CPU
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Turbo Boost Technology
Chipset
Intel® X58 / ICH10R
Front Side Bus
Up to 6400 MT/s
Memory
6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)*/1600/1333/1066 Non-ECC,Un-buffered Memory
Triple channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs.
*Refer to ASUS official website for the Memory QVL (Qualified Vendors Lidts).
Expansion Slots
3 x PCIe 2.0 x16 (at x16/x8/x8 or x16/x16/x1 mode)
1 x PCIe x1
2 x PCI
Multi-GPU Support
Supports NVIDIA® 3-Way SLI™ Technology*
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage
Intel ICH10R controller
6 xSATA 3.0 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10
Marvell® PCIe SATA 6Gb/s controller*
- 2 x SATA 6.0 Gb/s ports
* These SATA ports are for data hard drives only. ATAPI devices are not supported.
LAN
Dual Gigabit LAN controllers 2*Marvell 88E8056® PCIe Gigabit LAN controller featuring AI NET2
Audio
Realtek® ALC889 8-Channel High Definition Audio CODEC
- DTS Surround Sensation UltraPC
- BD audio layer Content Protection
- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O
IEEE 1394a
VIA® VT6308P controller supports 2 x 1394a port(s) (one at mid-board; one at back panel)
USB
NEC® USB 3.0 controller
- 2 x USB 3.0/2.0 ports (at back panel)
Intel® ICH10R Southbridge
- 8 x USB 2.0/1.1 ports (4 ports at midboard; 4 ports at back panel)
ASUS Unique Features
True USB 3.0 Support
True SATA 6Gb/s Support
ASUS Xtreme Design
ASUS Xtreme Phase
- ASUS 16+2 Phase Power Design
ASUS Exclusive Overclocking Features
- ASUS TurboV
ASUS Exclusive Features
- MemOK!
- ASUS EPU
- Express Gate SSD
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fanless Design: Stack Cool 3+
- ASUS Fan Xpert
ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Design: Q-Slot
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
Overclocking Features
Intelligent overclocking tools
- ASUS TurboV
Precision Tweaker 2
- vCore: Adjustable CPU voltage at 0.00625V increment
- vChipset 31-step chipset voltage control
- vCPU PLL: 36-step reference voltage control
- vDRAM Bus: 49-step DRAM voltage control
- vNB-PCIe: 65-step chipset-PCIe voltage control
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 180MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x IEEE 1394a
2 x LAN(RJ45) port(s)
8 -Channel Audio I/O
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)
1 x Clear CMOS button
1 x Coaxial S/PDIF Output
1 x Optical S/PDIF Output
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
Internal I/O Connectors
2 x USB connectors support additional 4 USB 2.0/1.1 ports
1 x IEEE 1394a connector
1 x CPU Fan connector(s)
1 x Power Fan connector(s)
System Panel (Q-Connector)
2 x SATA 6.0 Gb/s connectors (gray)
6 x SATA 3.0 Gb/s connectors (blue)
3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
Front panel audio connector
1 x S/PDIF Out Header
CD audio in
24-pin ATX Power connector
8-pin ATX 12V Power connector
1 x MemOK! Button
1 x Power on switch
1 x Reset switch
BIOS
16 Mb Flash ROM , AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Accessories:
1 x motherboard
2 x SATA cables
1 x I/O shield
Shipping & Handling:
1. Usually we need 1-2 days to process the items and prepare to ship it. According to your country, we will use the DHL, EMS, UPS, TNT, DPEX expedited shipping, the tracking number can be offered and tracked.
2. The shipping fees have included the local handing and packaging cost. We will send your item base on your address showed on order page. If your address is P.O.BOX, please give us physical address.
3. We can not mark item as "gift", because the custom office and international government regulations prohibit such behavior, thank you for your understanding.
Custom tax:
1. Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
2. Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer service:
Dear buyers, we sincerely do business with you. If you satisfy with our service and products, please leave us a good response. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 12 hours, and do our best to help you solve any problems.
Return policy:
Dear buyer, every item is very valuable to us, please know that we won't send bad products, but in case you need replace, exchange or refund, please read folloing policy.
1. Refund. Please send back the item in original package with all the accessories. When you shipped back, please give us tracking number. We'll refund all your money, as soon as got the returned package.
Please note if the package was loss, we only can refund you the shipping cost you paid. If the accessories was not complete, we need the compensation of the lost parts. If the mobo returned with wilful damage, we need the compensation.
2. Replace. Please send back the item in original package, needn't return any accessories. When you shipped back, please give us the tracking number. We'll resend another mobo to you, as soon as we got the returned package.
Please note if the package was loss, we don't resend you any more, then refund you the shipping cost you paid. If the mobo returned with wilful damage, we need the compensation.
Thank you for viewing
