Honest Seller
Trusted, Qualified and Recognized Seller
We promised all the Items will be tested earnestly before shipping, ensure it 100% working in orders.
Package Included: 1 x motherboard 1 x I/O back panel 2 x generic SATA II cable
Technical Tips:
A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C.If the motherboard can't run correctly, please first check your CPUwhether can be compatible with our motherboard, then check your videocard or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.

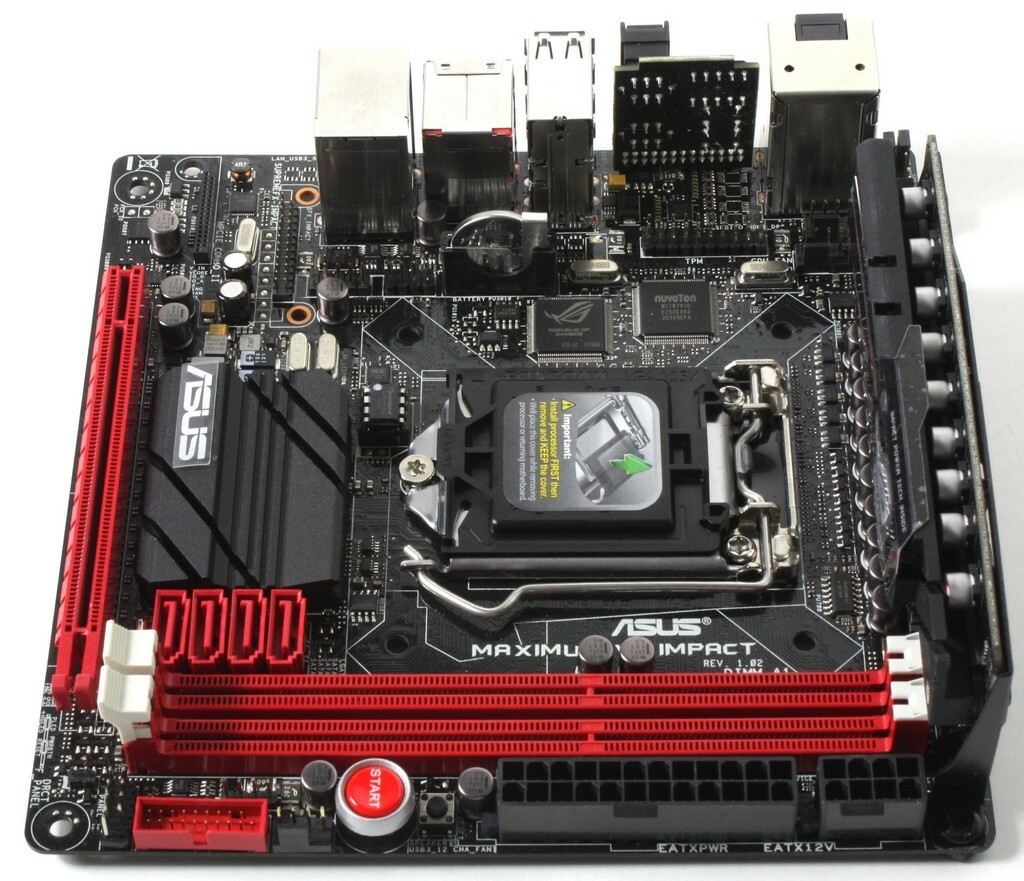

Parts Specification:CPUSupport Intel® 22nm CPUIntel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0* Whether or not Intel® Turbo Boost Technology 2.0 is supported depends on the CPU type.
ChipsetIntel® Z87
Memory2 x DIMM, up to 16GB, DDR3 /2000(OC)/1866(OC)/1800(OC)/1600/1333 MHz non-ECC, no buffer memorySupports Intel® Extreme Memory Profile (XMP)*Whether Hyper DIMM is supported depends on the physical characteristics of individual CPUs.Dual Channel Memory Architecture
Display chip- Supports DisplayPort with max. resolution 4096 x 2160 @ 24Hz / 3840 x 2160 @ 60HzIntegrated Graphics Processor- Support HDMI up to 4096 x 2160 @ 24Hz / 2560 x 1600 @ 60HzSupports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™Supports multiple VGA outputs: HDMI/DisplayPort ports
Slots1 x mini-PCIe 2.0 x1 *11 x PCIe 3.0/2.0 x16
StorageSupport M.2 (NGFF) Type 2242/2260/2280/22110 SSD card (up to 110mm in length), support PCI express 2.0 x1 and SATA 6Gb/s standards4 x SATA 6Gb/s ports, red,Intel® Z87 Chipset :1 x eSATA port(s), red,1 x M.2 (NGFF) Socket 2 on mPCIe Combo II expansion card(s), Black,Supports Intel® Smart Response Technology, Intel® Rapid Start Technology™, Intel® Smart Connect Technology *2Support Raid 0, 1, 5, 10
Wireless networkWi-Fi 802.11a/b/g/n/ac*3Supports dual band frequency 2.4/5 GHz
Bluetooth deviceBluetooth V3.0+HSBluetooth V4.0
Sound effect- Lineout DAC playback Signal-to-Noise Ratio (A-weighted, Differential output): 115 dB- Headphone DAC playback Signal-to-Noise Ratio (A-weighted, Differential output): 110 dB- Music PnPROG SupremeFX Impact8 channel high-fidelity sound CODEC-Sonic Radar- TI LM4562 high-fidelity audio OP AMP(s)- ELNA premium audio capacitors- Blu-ray audio layer content protection- DTS Connect- SupremeFX Shielding™ TechnologyAudio Feature :- Support : Plug Detection, Multiple Audio Output Input, Front Panel Jack Assignment Function- Optical S/PDIF output on back panel
USBIntel® Z87 Chipset: *6Intel® Z87 Chipset: *56 x USB 3.0 ports (4 on back panel, blue, 2 on motherboard)6 x USB 2.0 ports (4 on back panel, black, 2 on motherboard)
Operating System SupportWindows® 8Windows® 7
Rear Panel Output Terminals1 x DirectKey button1 x eSATA1 x ROG Connect switch1 x Q-Code LED4 x USB 3.1 Gen 1 (Blue)4 x USB 2.03 x Audio Jacks1 x DisplayPort1 x HDMI1 x LAN (RJ45) port1 x Optical S/PDIF Out1 x Clear CMOS button
Built-in I/O connection holes1 x mPCIe Combo II connector(s)1 x FastBoot jumper(s)1 x SupremeFX Impact connector(s)1 x DRCT header(s)1 x ROG extension (ROG_EXT) header(s)1 x 8-pin EATX 12V Power connector4 x SATA 6Gb/s headers1 x USB 2.0 header supports additional 2 USB 2.0 ports10 x ProbeIt measuring points1 x USB 3.0 header supports additional 2 USB 3.0 ports1 x LN2 Mode jumper(s)1 x TPM connector1 x CPU Fan Header3 x chassis fan headers1 x 24-pin EATX power connector1 x Front Panel Audio Header (AAFP)1 x System Panel1 x Power-on button1 x Reset button
BIOS64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a Multi-Language BIOS
Motherboard sizeMini ITX ; 6.7 inches x 6.7 inches ( 17 cm x 17 cm )
Terms and Conditions
Terms:Pleaseread the entire listing before offerding. We do not offer cash refundsfor any purchases. All sales are FINAL, we will replace per ourwarranty (see below) buyer is responsible for all shipping charges.
response:Weappreciate positive response we always try our best to service ourcustomers so if you have any question ,Please don't hesitate to contactus
we are always here to offer help.
Payment :PAYPAL ONLY: We do not accept any other payment method.
Shipping:
Economy:
Country Agent Estimate time USA Epacket Shipping 8-15 business days Canada,Australia,New Zealand Economy Shipping 10-20 business days UK,Germany,France Economy Shipping 10-25 business days Other Europe Country Economy Shipping 10-25 business days Other Country Economy Shipping 10-25 business days
Agent Estimate time Expedited : Country USA Expedited Shipping 3-5 business days Canada,Australia,New Zealand Expedited Shipping 3-7 business days UK,Germany,France Expedited Shipping 3-6 business days Other Europe Country Expedited Shipping 3-6 business days Other Country Expedited Shipping 4-8 business days
Sinceyour Country customs and international customs regulations prohibitsuch behavior,We can not item is "gift", thank you for yourunderstanding.
Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Warranty:All items are sold with 60 days warranty unless otherwise stated in the sale.
Returns:
1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.
3)Please do not return any items without an authorization number or otherinstructions by us. Any packages that are send without our knowledgewill be refused and no replacements will be issued. Wrong item orderedor non defective part returns require a 20% restocking fee. All productsare marked with serial number and QC badge.Any products returnedwithout our serial number and QC badge will be rejected as not ourparts..
Support:Weanswer emails Mon-Fri. Please allow up to 48 hours for us to respond.All emails are answered! If you do not receive a response, please resendyour email. Sometimes Spam filters prevent emails from being properlydelivered. If you do not receive a response after a second request,please provide an alternative email address for us to respond to. No oneis EVER ignored!
