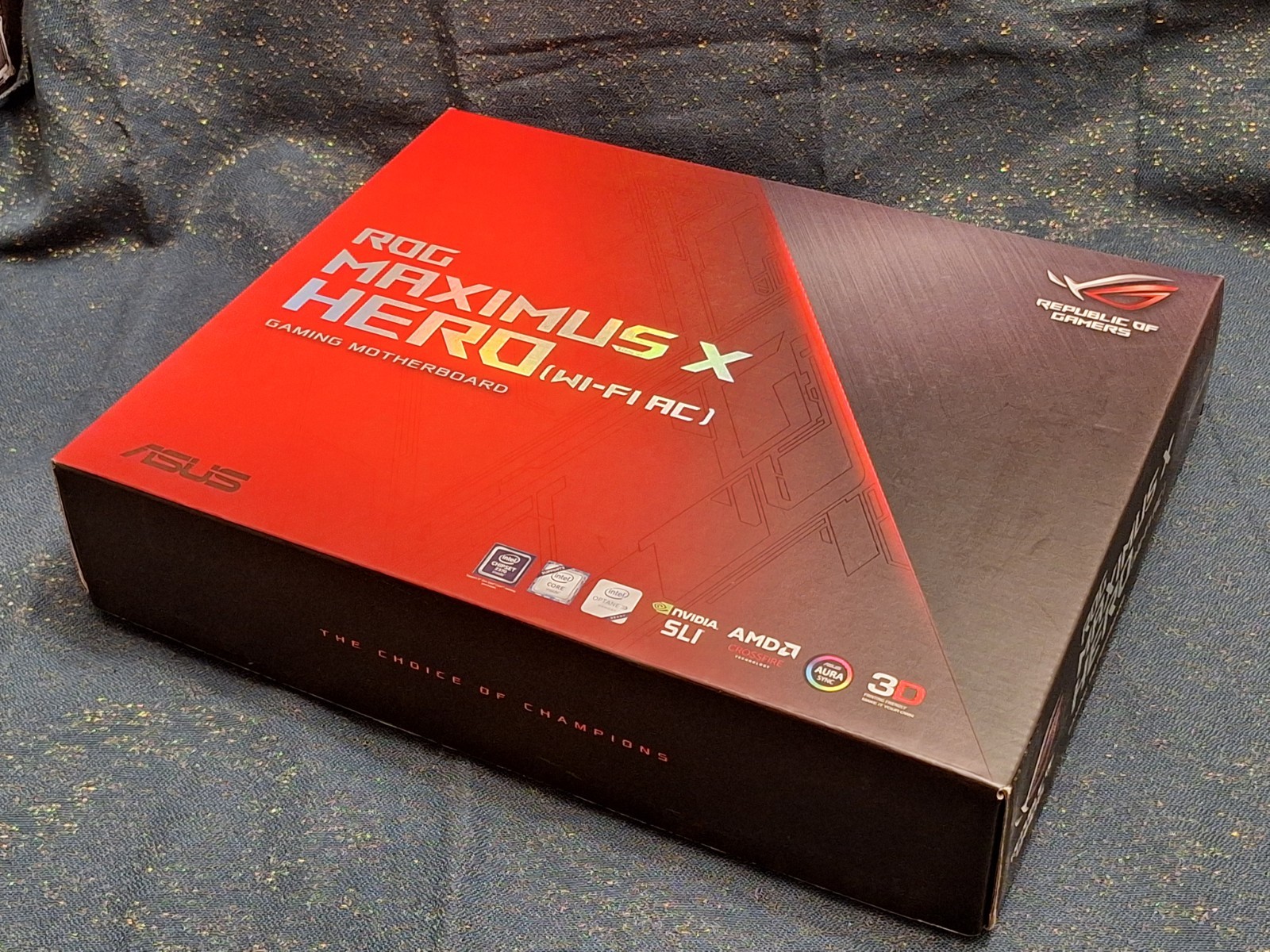

The ASUS ROG Maximus X Hero is a high-end ATX gaming motherboard built on the Intel Z370 chipset and featuring the LGA 1151 socket. Designed to support 8th-generation Intel Core processors (Coffee Lake), this enthusiast-grade motherboard is engineered for stable, extreme overclocking, reliable power delivery, and extensive personalization.Key Specifications & Performance Features

• Memory Support: Includes 4 DIMM slots supporting up to 64 GB of dual-channel DDR4 RAM with overclocked speeds exceeding 4133 MHz.
• Graphics Expansion: Equipped with three PCIe 3.0 x16 slots supporting NVIDIA 2-Way SLI and AMD 3-Way CrossFireX multi-GPU setups. Two slots feature reinforced ASUS SafeSlot technology to hold heavy modern graphics cards securely.
• Storage Capabilities: Dual M.2 Socket 3 slots capable of data speeds up to 32 Gbps, fully compatible with Intel Optane memory. The primary M.2 slot features a dedicated M.2 heatsink to eliminate thermal throttling.
• Premium Audio: Powered by the SupremeFX S1220 codec paired with an ESS ES9023P High Definition DAC, delivering an impressive 120dB signal-to-noise ratio (SNR) for ultra-clear gaming audio.

Cooling, Connectivity, & Aesthetics

• Advanced Water Cooling Controls: Tailor-made for custom loop builders, it features dedicated onboard headers for water pumps (W_PUMP+), water flow monitoring, and coolant inlet/outlet temperature tracking (W_IN/OUT, W_Flow).
• Rear I/O Shield: Comes with a pre-mounted, sleek I/O shield for cleaner aesthetics and simpler case installation. The rear panel also hosts handy troubleshooting tools like a physical Clear CMOS button and a BIOS FlashBack switch.
• Networking: Options include a standard Intel Gigabit Ethernet variant and a premium Wi-Fi AC model equipped with 2x2 802.11ac Wi-Fi and Bluetooth.
• Aura Sync RGB: Offers built-in RGB lighting effects across the board, alongside dual 4-pin RGB headers and an addressable header to sync external lighting strips and accessories. It even features integrated mounts for custom 3D-printed nameplates or parts

The Intel Core i7-8700K is a landmark desktop processor from Intel's 8th Generation Coffee Lake architecture, introduced in Q4 2017. It famously broke the mold for mainstream Intel i7 desktop chips by moving from the long-standing 4-core configuration up to a 6-core, 12-thread design to combat emerging competition
Core Technical SpecificationsArchitecture: Coffee Lake (14nm lithography)Cores / Threads: 6 Cores / 12 ThreadsClock Speeds: 3.7 GHz base clock with a max single-core turbo boost up to 4.7 GHzCache: 12 MB Intel Smart CacheSocket Support: LGA 1151 (Note: Requires an Intel 300-series chipset motherboard, such as Z370 or Z390)Thermal Design Power (TDP): 95W (Requires a high-quality standalone CPU cooler, as it does not ship with one) Graphics: Integrated Intel UHD Graphics 630Memory Support: Dual-channel DDR4-2666 up to 128 GIG.
