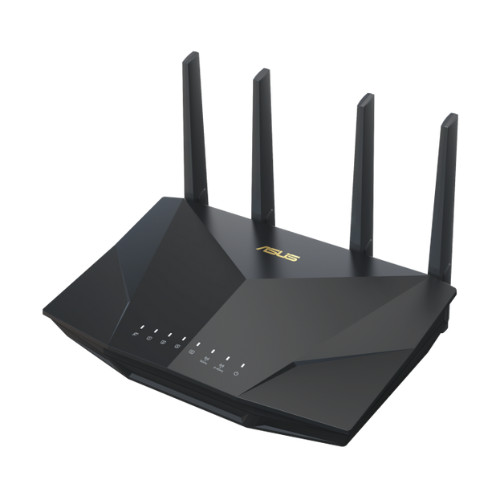

ASUS RT-AX5400 Dual-band Router 2.4GHz/5GHz WIFI6 4*ANT standardsIEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)Performance levelAX5400 ultimate AX performance: 574+4804 MbpsData transfer speed802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
802.11ac: up to 400 Mbps
802.11ac (with 1024-QAM): up to 3466 Mbps
802.11ax (2.4 GHz): up to 574 Mbps
WiFi 6 (802.11ax) (5 GHz): up to 4804 MbpsAntennasExternal antenna x 4 (non-removable)
4 external antennas (non-removable)Processor1.5 GHz Tri-core processorRAM256 MB Flash
512 MB RAMAcceleration toolsOFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: Standard and Universal
High data rate 1024-QAM
Bandwidth 20/40/80/160 MHzOperating frequency2.4 GHz / 5 GHzOperating modesWireless Router Mode
Access Point Mode
Media Bridge Mode
Repeater Mode
AiMesh Node ModePortsRJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1ButtonsWPS button, reset button, power switchLED indicatorPower x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1
Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1Power supplyAC input: 110V ~ 240V (50 ~ 60Hz)
DC output: 19V max. current 1.75A
AC input: 110V ~ 240V (50 ~ 60Hz) DC output: 19V max. current 1.75AEquipmentWiFi router RT-AX5400
RJ-45
cable Power supply
User manual
Warranty card
WiFi router RT-AX5400
RJ-45
cable Power supply
Quick start guide
Warranty cardWeight612.4 gDimensions161.05*226.23*160.23 mm
161.05 * 226.23 * 160.23 mmAiMeshAiMesh
Primary AiMesh router
AiMesh nodeParental controlParental Controls
Safe Browsing
Individual Internet Access ScheduleGuest networkGuest Network
• Maximum number of guest network rules: 2.4 GHz x3, 5 GHz x3
Guest Network Connection Time Limit
- Guest Network Encryption: Open system, WPA/WPA2/WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
Let's Scan
Network Screen
• Number of keywords in firewall filter (max.) :64
• Network service firewall filter (max.) :32
• Firewall URL filter (max.) :64AiProtectionAiProtection
Blocking malicious sites
Two-way IPS
Detecting and blocking infected devicesVirtual Private Network (VPN)Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN FusionTraffic managementAdaptive QoS
Bandwidth Manager
Bandwidth Limiter
- Max. Bandwidth Limiter Rules: 32
Traditional QoS
- Max. Traditional QoS Rules: 32
Traffic Manager
Real-time Traffic Monitoring
Wired Traffic
Monitoring Wireless Traffic Monitoring
Traffic Analyzer
- Traffic Analysis Period: Daily, Weekly, Monthly
Website Browsing HistoryWAN- Internet Connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE Modem
Port Forwarding
- Max. number of port forwarding rules:64
Port Switching
- Max. number of port switching rules32
DMZ
DDNS
- NAT Passthrough:PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relayLANDHCP Server
IGMP Snooping
IPTV
LAN Channel Aggregation
Manual IP Address Assignment
- Max. IP Address Assignment Rules: 64
Wake on LAN (WOL)Wireless networkMU-MIMO
UTF-8 SSID
Wi-Fi MAC address filtering
- Max. MAC address filters: 64
Wireless scheduler
Airtime parity
RADIUS server
Universal beamforming
Explicit beamformingUSB application- File system: HFS+, NTFS, vFAT, ext2, ext3, ext4
Safe disk removal
AiCloud
Download master
AiDisk
Media server
Time Machine
Samba server
FTP server
Shared folder access rightsAdministrationSave and restore settings
Diagnostic tools
response system
System log
Notification of new device connection
Login Captcha
Connection diagnostics
Automatic firmware update
