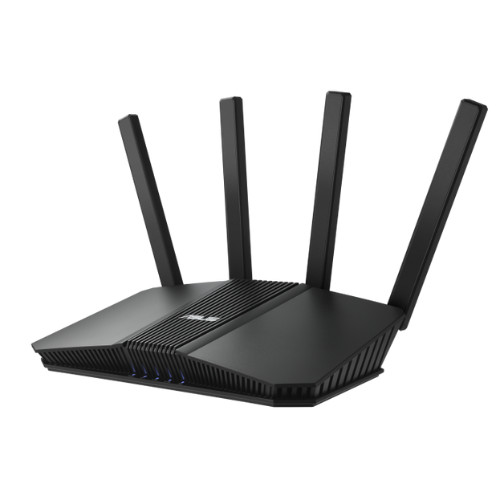

ASUS RT-BE82U Dual-band Router 2.4GHz/5GHz WIFI7 4*ANT 90IG0990-MO9B00
ModelRT-BE82UNetwork standardsIEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6Performance levelMaximum performance BE6500: 688+5764 MbpsData transfer speedWiFi 7 (802.11be) (2.4 GHz): up to 688 Mbps
WiFi 7 (802.11be) (5 GHz): up to 5764 MbpsAntennasExternal antenna x 4 pcsMIMO scheme2.4 GHz 2 x 2
5 GHz 4 x 4ProcessorQuad-core 2.0 GHz processorRAM256 MB Flash
1 GB RAMAcceleration toolsOFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: Standard and Universal
4096-QAM high data rate
Bandwidth 20/40/80/160 MHzOperating frequency2.4 GHz
5 GHzOperating modesWireless Router Mode
Access Point Mode
Media Bridge ModePorts1x 2.5G for WAN,
4x 2.5G for LAN,
USB 3.2 Gen 1 x 1ButtonsWPS Button, Reset Button, Power ButtonLED indicatorPower x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1Power supplyAC input: 100V~240V (50~60Hz)
DC output: 12V with max. 3A currentEquipmentRT-BE82U
RJ-45 cable
Power adapter
Quick Start Guide
Warranty cardWeight502 gDimensions238 x 147 x 97 mmAiMeshAiMesh
Primary AiMesh router
AiMesh nodeParental controlParental Controls
Web and App Filters
Time Scheduling
Safe Browsing
Individual Internet Access ScheduleGuest networkGuest Network
Guest network support
• Maximum number of guest network rules: 2.4GHz x3, 5GHz x3
Guest network connection time limitSecurityAiProtection
VPN
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Scan
Network Screen
• Number of keywords in firewall filter (max.) :64
• Network service firewall filter (max.) :32
• Firewall URL filter (max.) :64AiProtectionAiProtection
Blocking malicious sites
Two-way IPS
Detecting and blocking infected devicesVirtual Private Network (VPN)Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuardTraffic managementAdaptive QoS
Bandwidth Manager
Bandwidth Limiter
- Max. Bandwidth Limiter Rules: 32
Traditional QoS
- Max. Traditional QoS Rules: 32
Traffic Manager
Real-time Traffic Monitoring
Wired Traffic
Monitoring Wireless Traffic Monitoring
Traffic Analyzer
- Traffic Analysis Period: Daily, Weekly, Monthly
Website Browsing HistoryWAN- Internet Connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Modem 3G/4G LTE
4G / 5G Auto Mobile Tethering
Port Forwarding
- Max. number of port forwarding rules:64
Port Switching
- Max. number of port switching rules32
DMZ
DDNS
- NAT Pass-Through:PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relayLANDHCP Server
IGMP Snooping
IPTV
Manual IP Address Assignment
- Max. number of IP Address Assignment Rules: 64
Wake on LAN (WOL)Wireless networkMU-MIMO
UTF-8 SSID
Wi-Fi MAC address filtering
- Max. MAC address filters: 64
Wireless scheduler
Airtime parity
RADIUS server
Universal beamforming
Explicit beamformingUSB application4G / 5G Auto Mobile Tethering
- File system:HFS+, NTFS, vFAT, ext2, ext3, ext4
Safe disk unmount
AiCloud
Download master
AiDisk
Media server
Time Machine
Samba server
FTP server
Shared folder access rightsUser interfaceWeb: ASUSWRT
App: ASUS Router APPAdministrationSave and restore settings
Diagnostic tools
response system
System log
Notification of new device connection
Login Captcha
Connection diagnostics
Automatic firmware update
