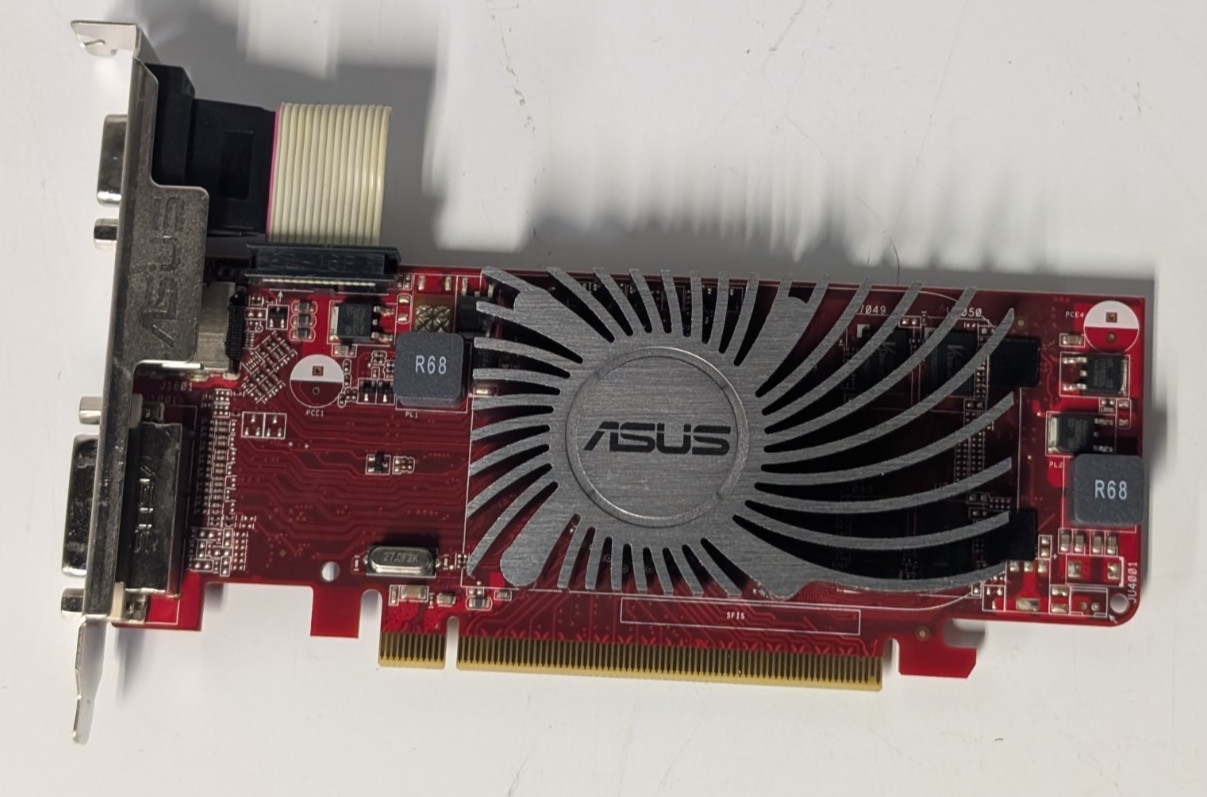

ASUS EAH6450 Silent (LP) 1GB GDDR3 (part number EAH6450 SILENT/DI/1GD3(LP)) is a Graphics Processing Unit, produced on 40 nm manufacturing process. The GPU is based on AMD Radeon HD 6450 GDDR3, and it is targeted at desktop market segment. The card has graphics clocked at 625 MHz. Furthermore, it has 160 stream processors, 4 color ROPs, as well as 8 texture units. The EAH6450 Silent (LP) 1GB GDDR3 incorporates 1 GB of GDDR3 memory. The memory uses 64 bit bus, and operates at 600 MHz. This allows the card to have 9.6 GB/s memory bandwidth. The GPU has PCI Express 2.1 interface, and requires a single motherboard slot. This model uses up to 18 Watt of power, on a par with the reference design.
Below you will find more detailed specifications of the graphics unit.
Name / Brand / Silent (LP) 1GB GDDR3Part number:EAH6450 SILENT/DI/1GD3(LP)Based on:ATI Radeon HD 6450 GDDR3Target market segment:DesktopDie name:Caicos ProArchitecture:TeraScale 2 Unified Processing ArchitectureFabrication process:40 nmTransistors:370 millionBus interface:PCI-E 2.1 x16FrequencyGraphics clock:625 MHzMemory specificationsMemory size:1 GB / 1024 MBMemory type:GDDR3Memory clock:600 MHzMemory clock (effective):1.2 GHz / 1200 MHzMemory interface width:64-bitMemory bandwidth:9.6 GB/sCores / TextureColor ROPs:4Z/Stencil ROPs:16Stream processors:160Texture units:8RAMDACs:400 MHzDecoders:Adobe Flash
H.264
MPEG-2 (SD & HD)
MPEG-4 Part 2 (DivX/Xvid)
MVC
VC-1Electric characteristicsMaximum power draw:18 WattVideo featuresMulti-monitor:Up to 3 displaysMaximum digital resolution:2560 x 1600Maximum DVI resolution:2560 x 1600Maximum HDMI resolution:1920 x 1200Maximum VGA resolution:2048 x 1536Anti-Aliasing technologies:24 x MSAA
24 x SSAA
Adaptive AA
MLAAHDMI:YesHDMI version:1.4aPerformancePixel fill rate:2.5 Gigapixels/sTexture fill rate:5 Gigatexels/sSingle presision compute power:200 GFLOPSDouble precision compute power:n/aExternal connectorsStandard display connectors:Dual-Link DVI-I
HDMI
VGAAudio input for HDMI:YesDimensionsSize (length x height):7.01 inches (178 mm) x 5.43 inches (138 mm)Width:Single-SlotOther features / SupportOther features:Direct Compute 11
HD3D Technology
HDCPOpen CL support:1.1OpenGL support:4.1DirectX support:11.0Shader model:5.0Windows driver support:Windows 7
Windows Vista
Windows XP
